Removal And Installation: Notes

WARNING:

For steering wheel and shaft assembly removal procedures, follow numbered steps in illustration. See Fig 1. For Steering wheel and shaft assembly installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing steering wheel and shaft assembly. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the removal procedure. See REMOVAL SERVICE POINTS . Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the installation procedure. See INSTALLATION SERVICE POINT .

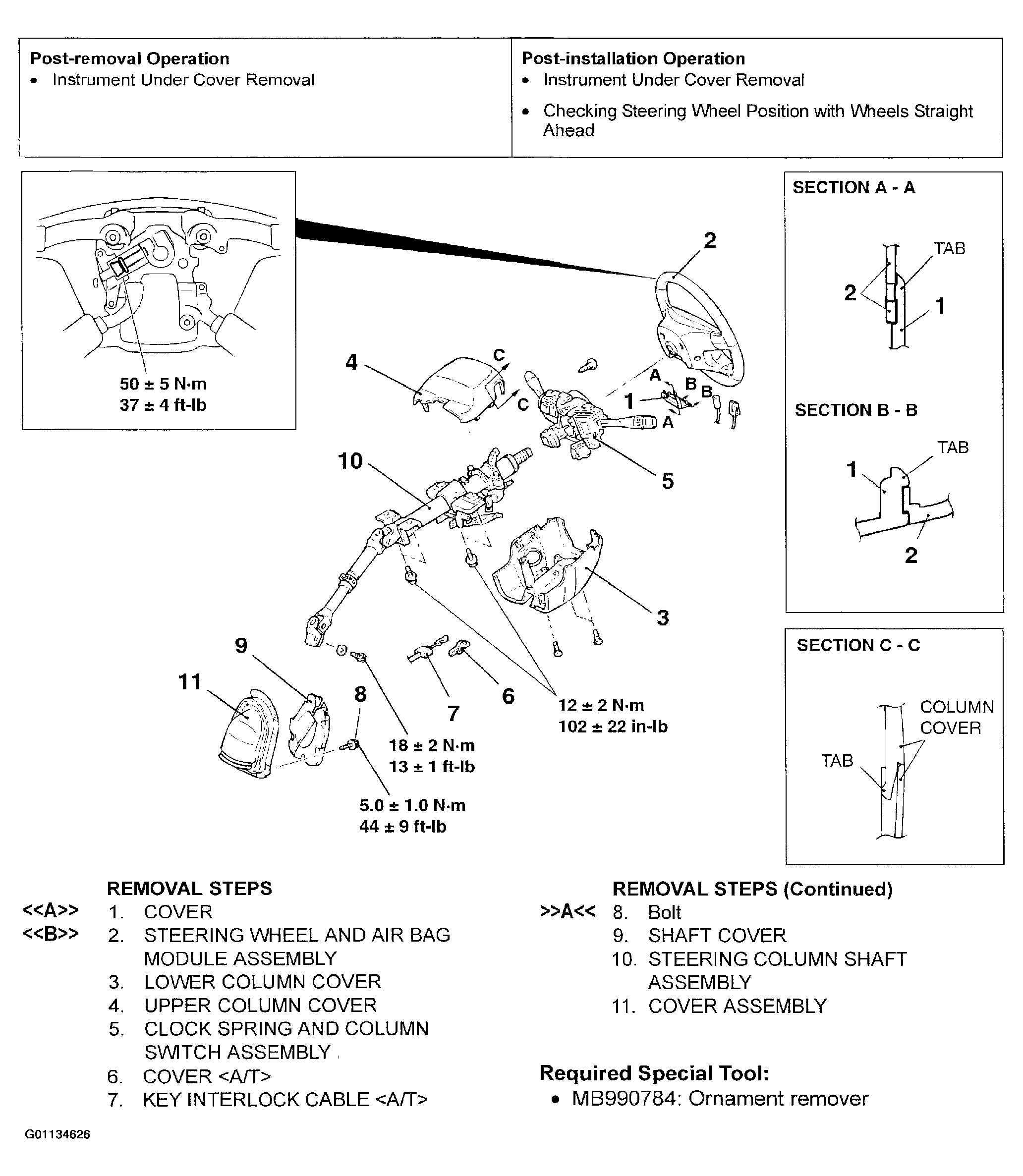

Fig 1: Removing & Installing Steering Wheel & Shaft Assembly
G01134626Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
