Removal And Installation: Notes
CAUTION:
*: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.

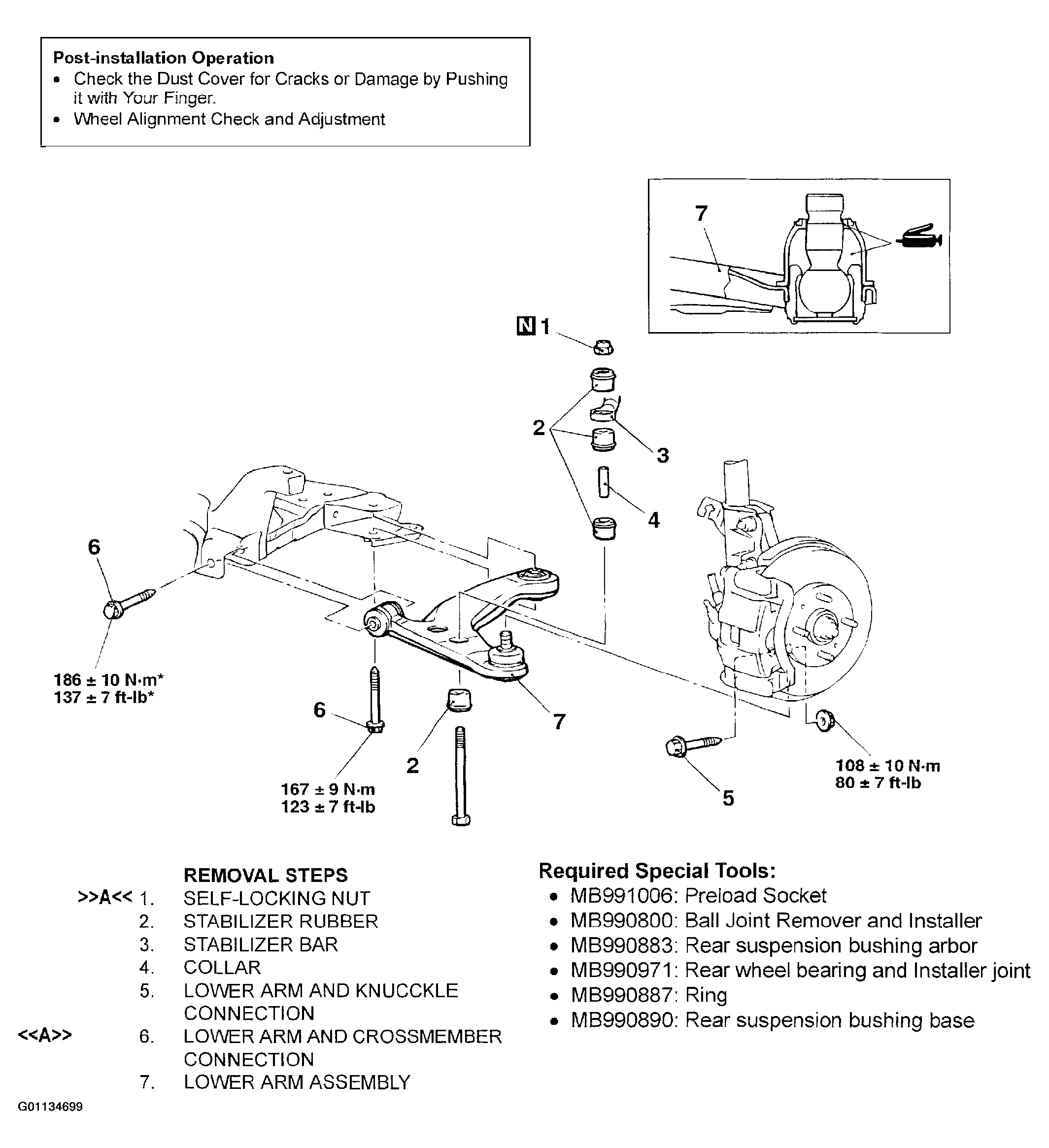

For lower arm removal procedures, follow numbered steps in illustration. See Fig 1. For lower arm installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing lower arm. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the removal procedure. See REMOVAL SERVICE POINT . Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the installation procedure. See INSTALLATION SERVICE POINT .
