Specifications
›
Service Specifications
Service Specifications

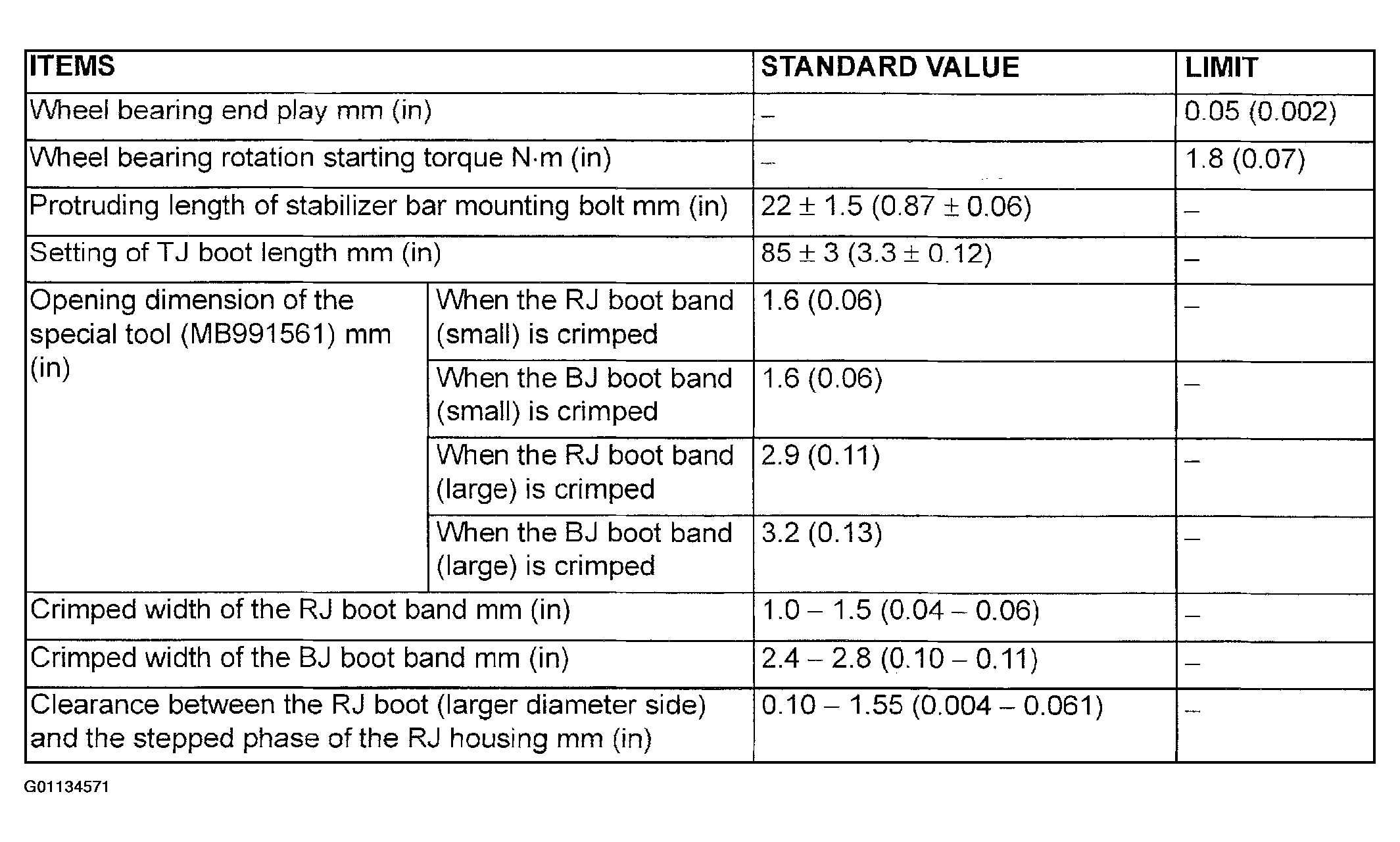

Fig 1: Identifying Service Specifications (Front Axle & Hub)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

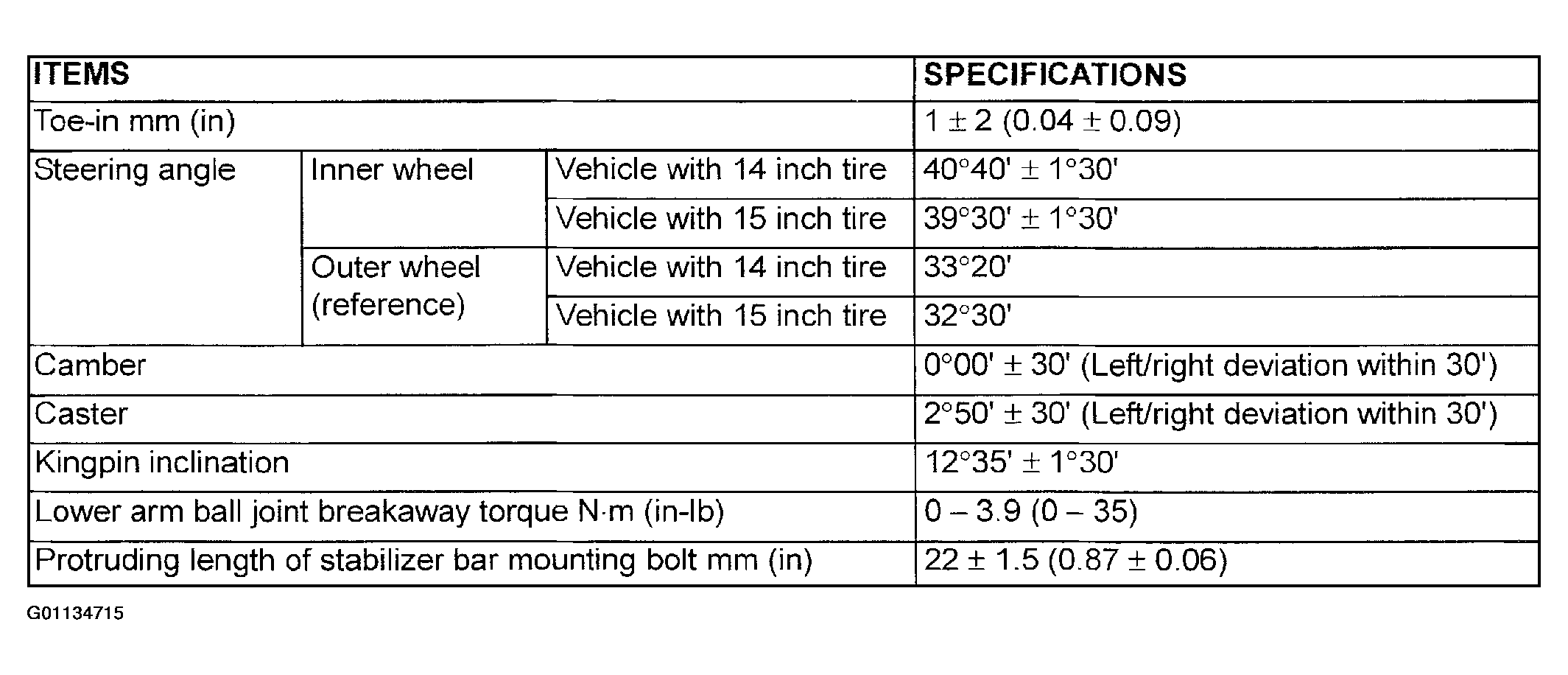

Fig 2: Identifying Service Specifications (Front Suspension)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
