Specifications
›
Diamante
Specifications & Procedures: Specifications: Diamante

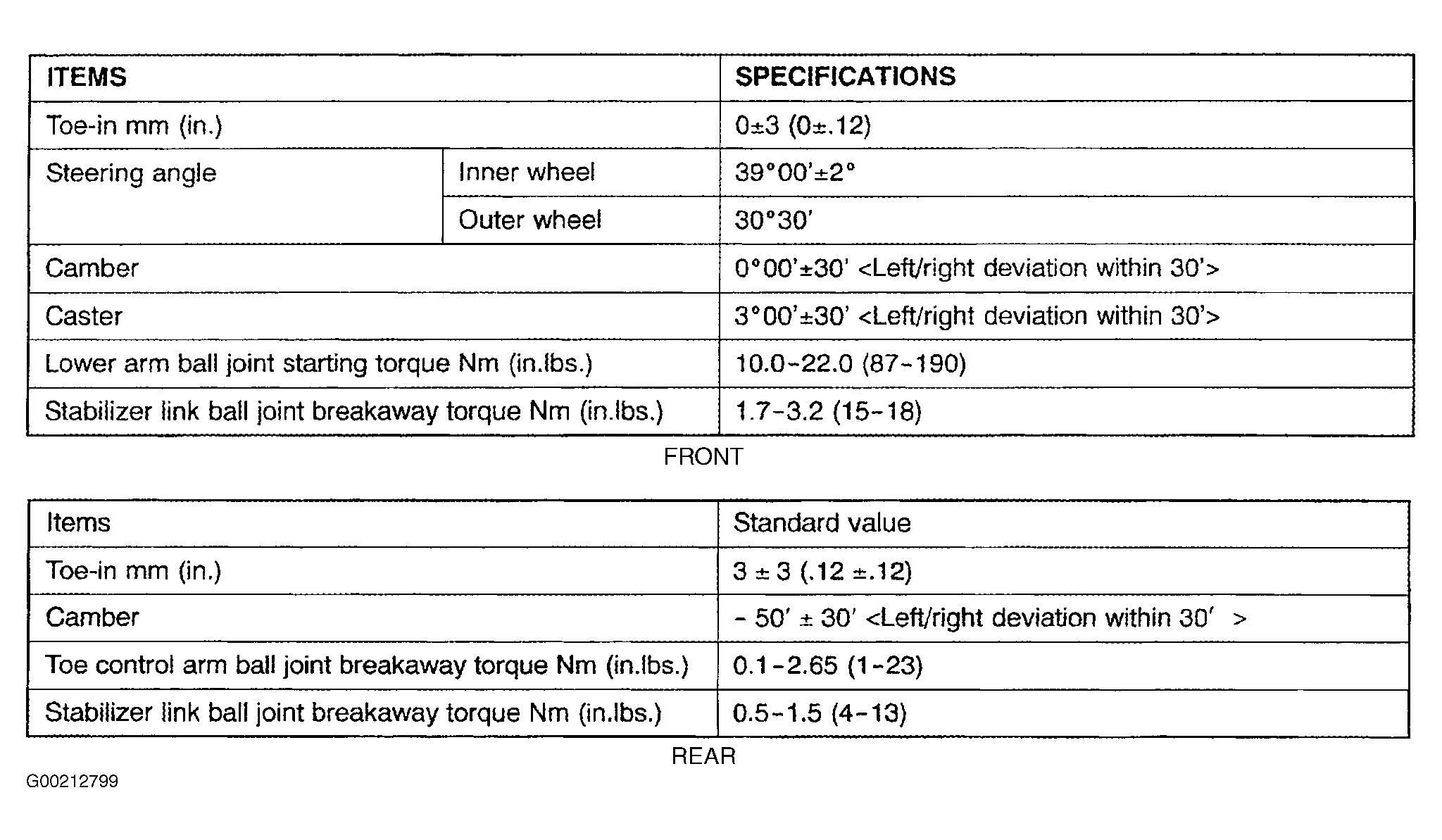

Fig 1: Wheel Alignment Specifications (Diamante)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
