Specifications
›
Montero
Specifications & Procedures: Specifications: Montero

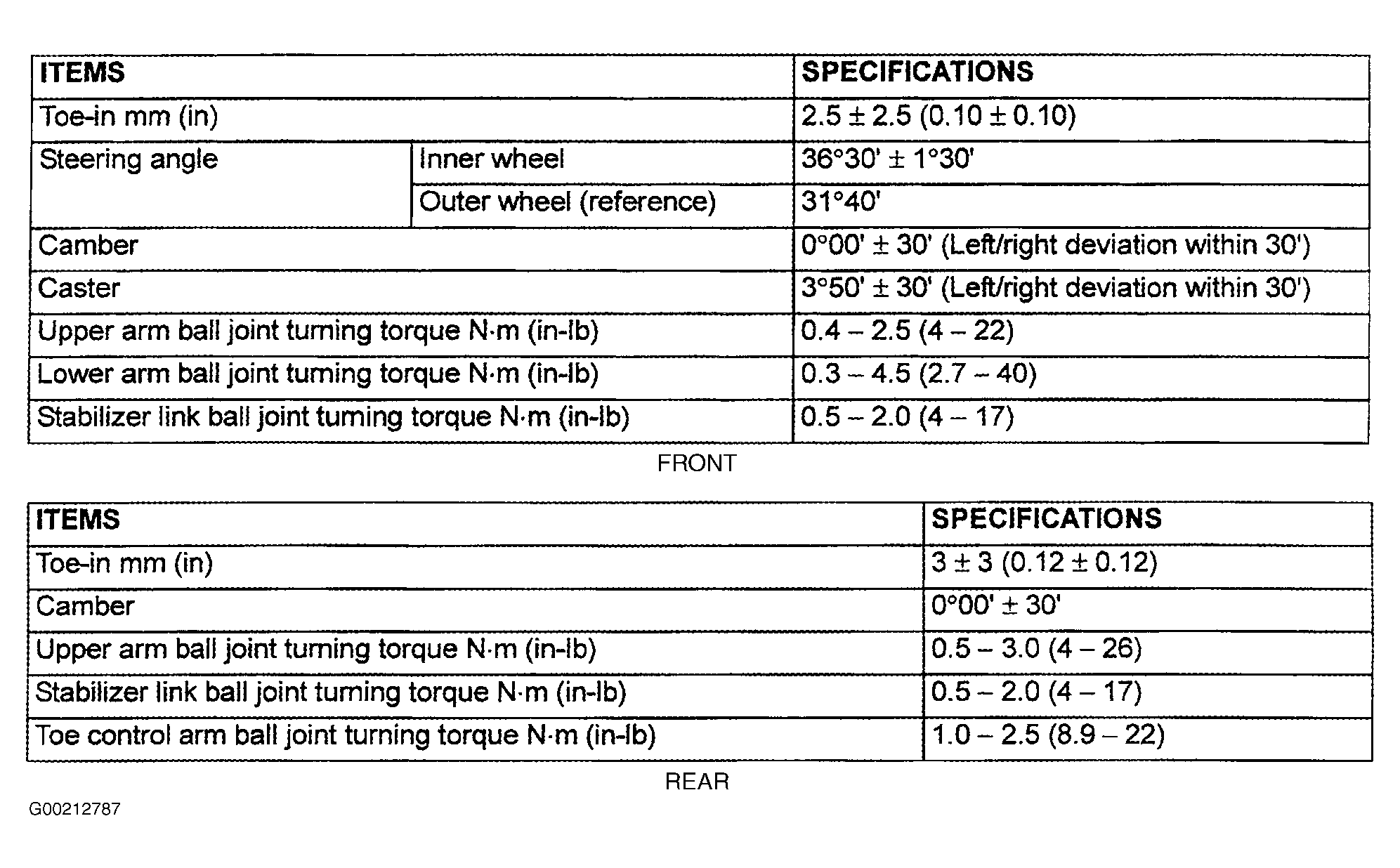

Fig 1: Wheel Alignment Specifications (Montero)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
