Fastener Tightening Specifications

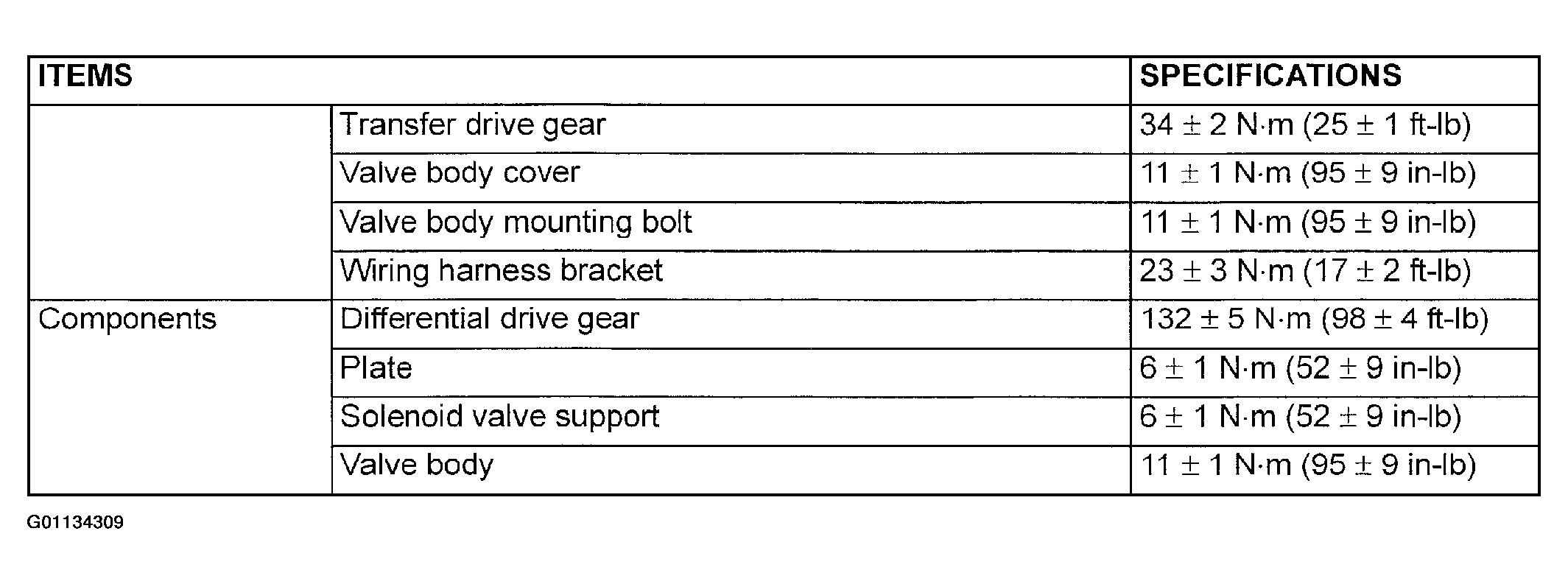

Fig 1: Fastener Torque Specifications Table (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Fastener Torque Specifications Table (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
