Valve Body Spring Identification Table
Valve Body Spring Identification Table

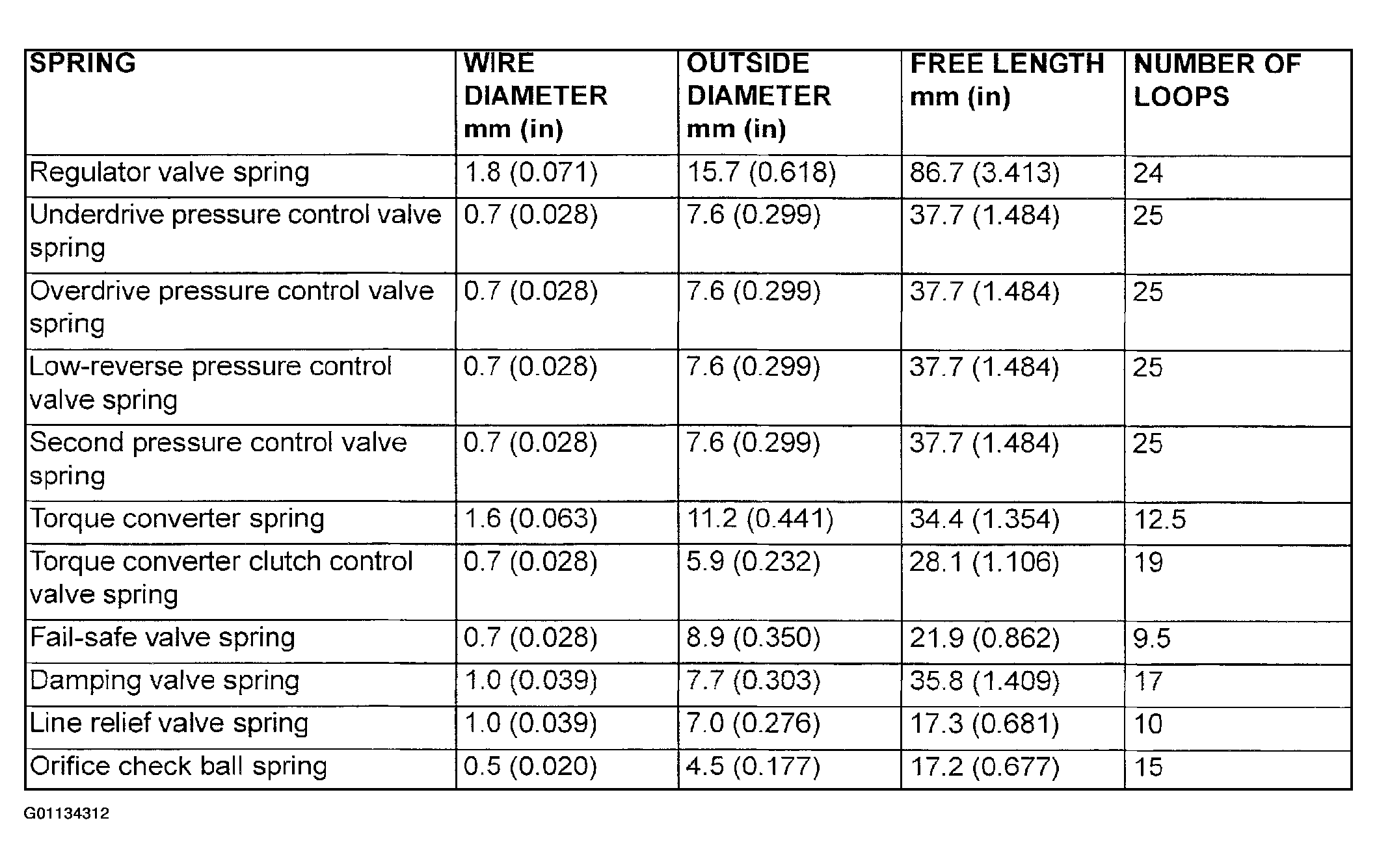

Fig 1: Identifying Valve Body Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
