Disassembly And Assembly: Notes

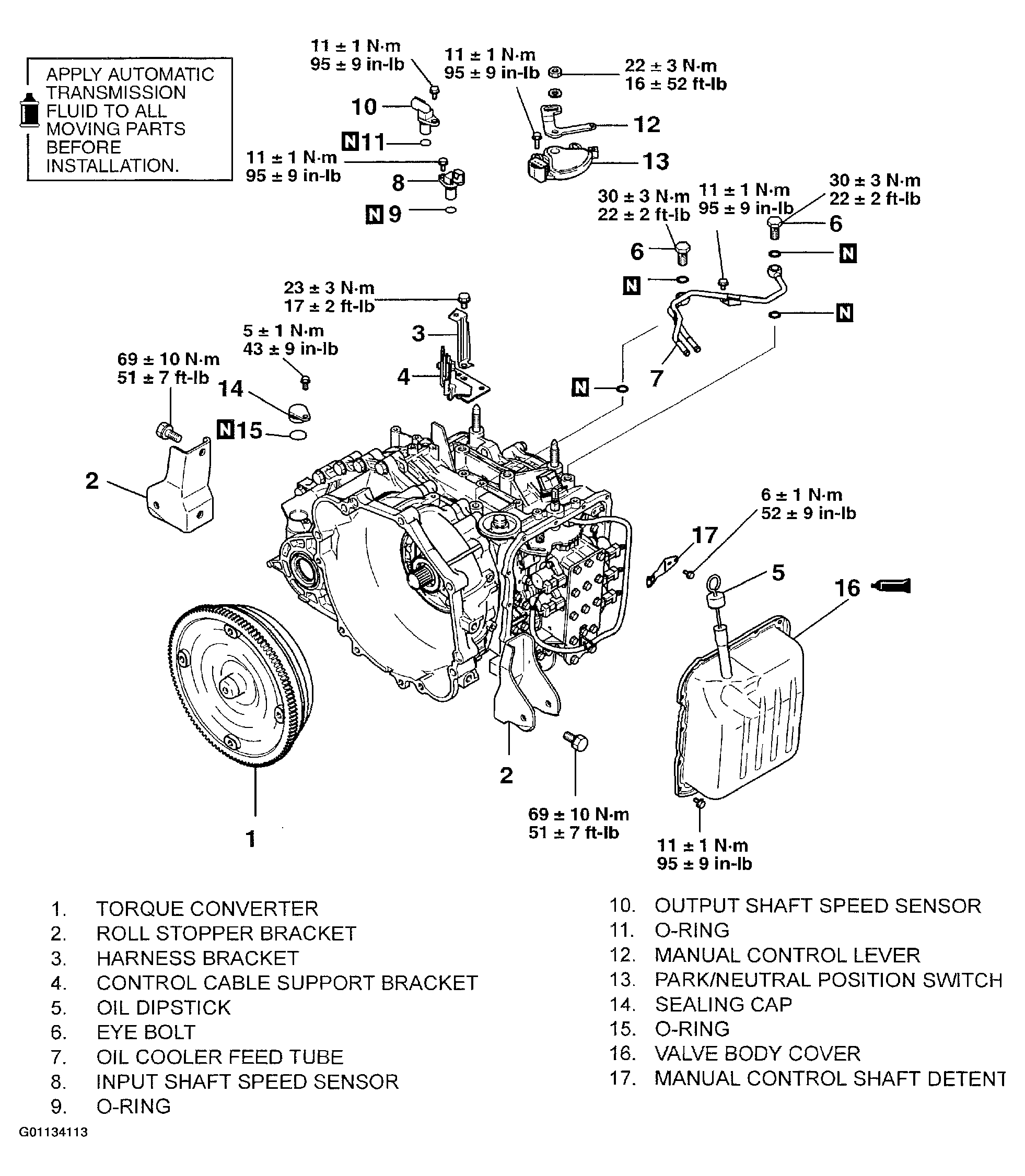

Fig 1: Exploded View Of Transaxle (1 Of 4)

G01134113

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

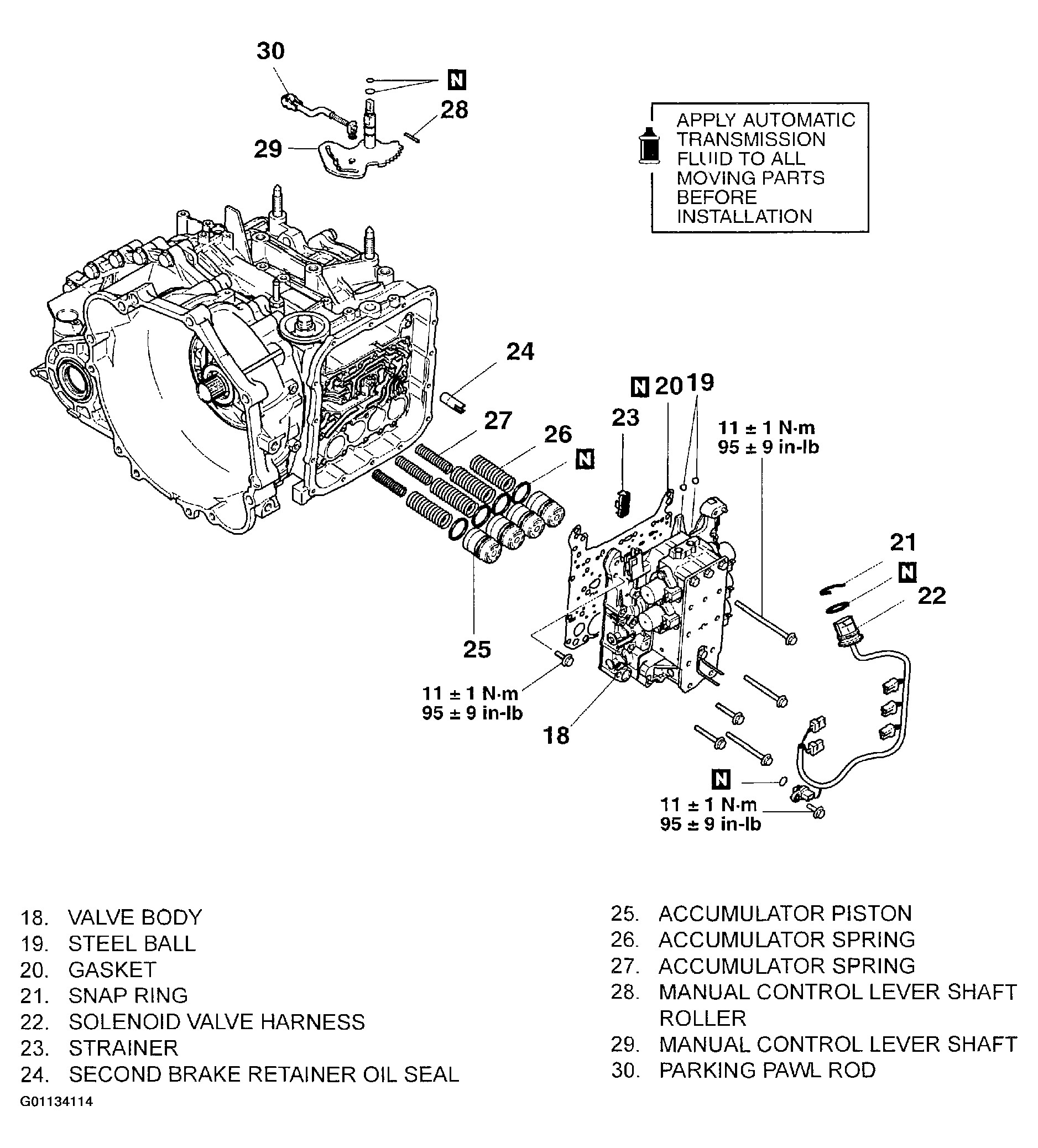

Fig 2: Exploded View Of Transaxle (2 Of 4)

G01134114

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

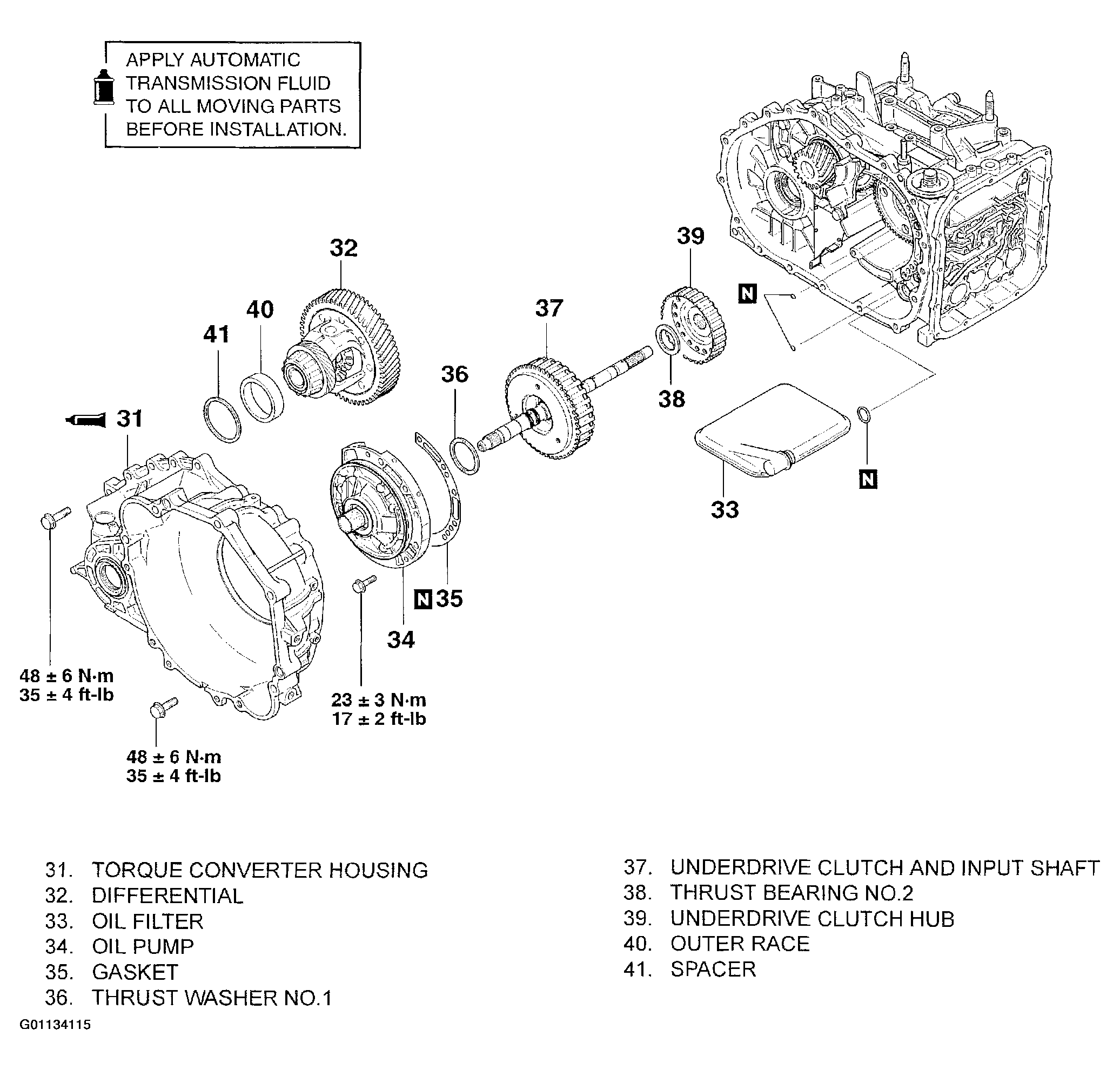

Fig 3: Exploded View Of Transaxle (3 Of 4)

G01134115

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

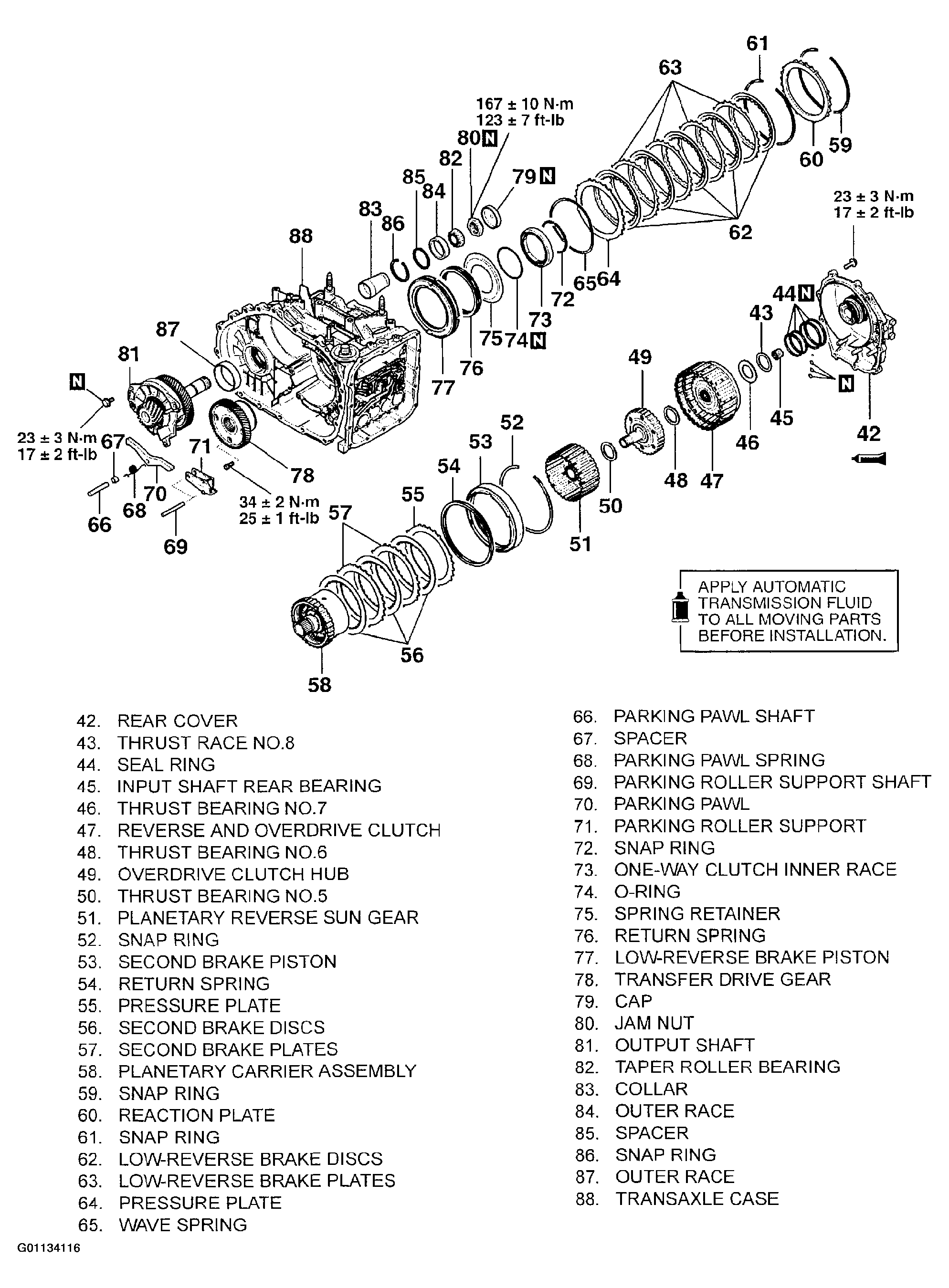

Fig 4: Exploded View Of Transaxle (4 Of 4)

G01134116

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990607: Torque Wrench Socket
MB990930: Installer Adapter
MB990931: Installer Adapter
MB990935: Installer Adapter
MB990936: Installer Adapter
MB990938: Handle
MB991625: Special Socket (41)
MB991631: Clearance Dummy Plate
MD998333: Oil Pump Remover
MD998350: Bearing Installer
MD998412: Guide
MD998903: Spring Compressor
MD998913: Dial Gauge Extension
MD998924: Spring Compressor Retainer
