Removal And Installation: Notes

For transaxle assembly removal procedures, follow numbered steps in illustration. See Fig 1 and Fig 2 . For transaxle assembly installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing transaxle assembly. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the removal procedure. See REMOVAL SERVICE POINTS . Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the installation procedure. See INSTALLATION SERVICE POINTS .

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

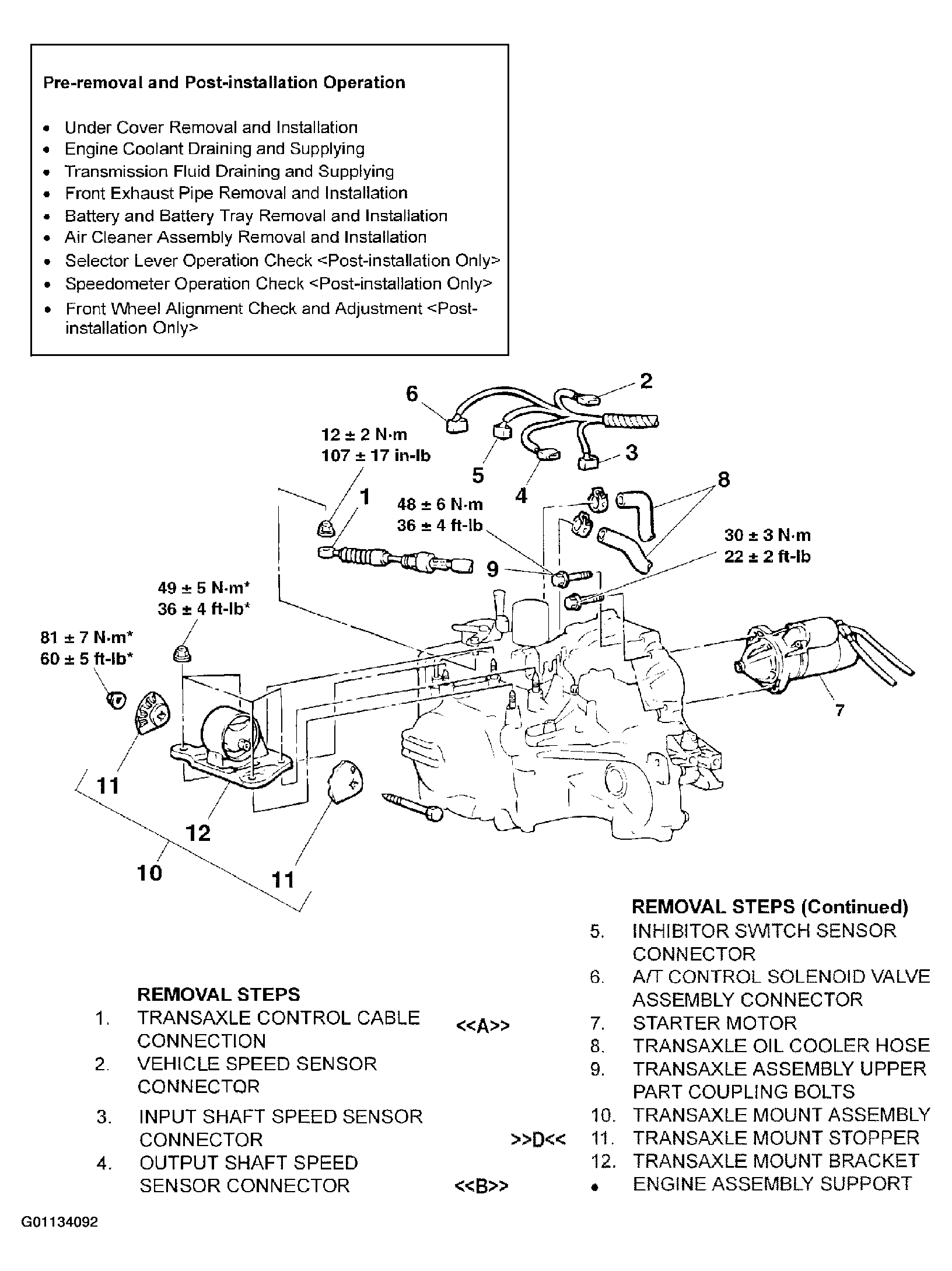

Fig 1: Removing & Installing Transaxle Assembly (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: *:Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

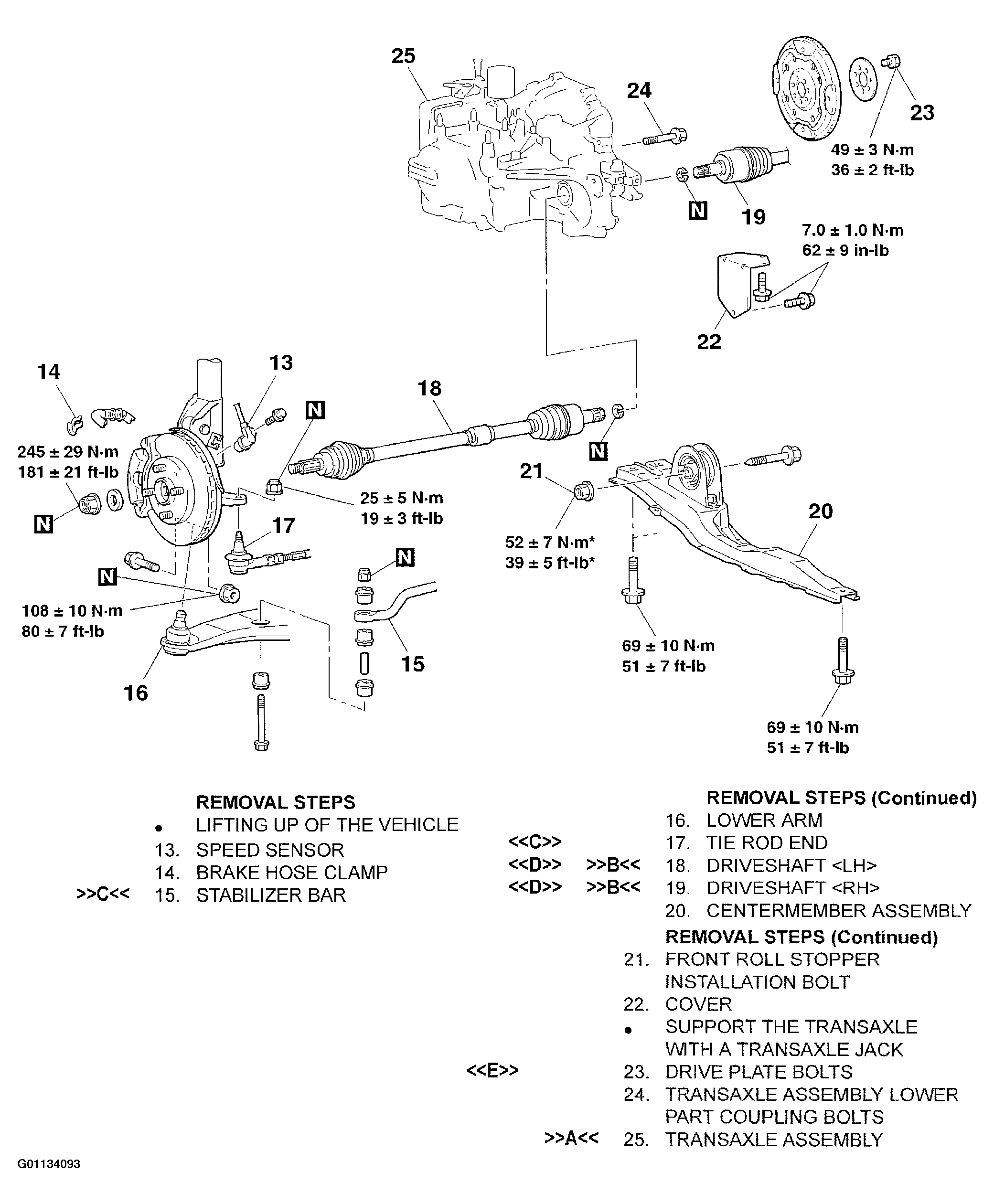

Fig 2: Removing & Installing Transaxle Assembly (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991113: Steering Linkage Puller
MB991453: Engine Hanger Assembly
MZ203827: Engine Lifter
