Disassembly And Reassembly: Notes

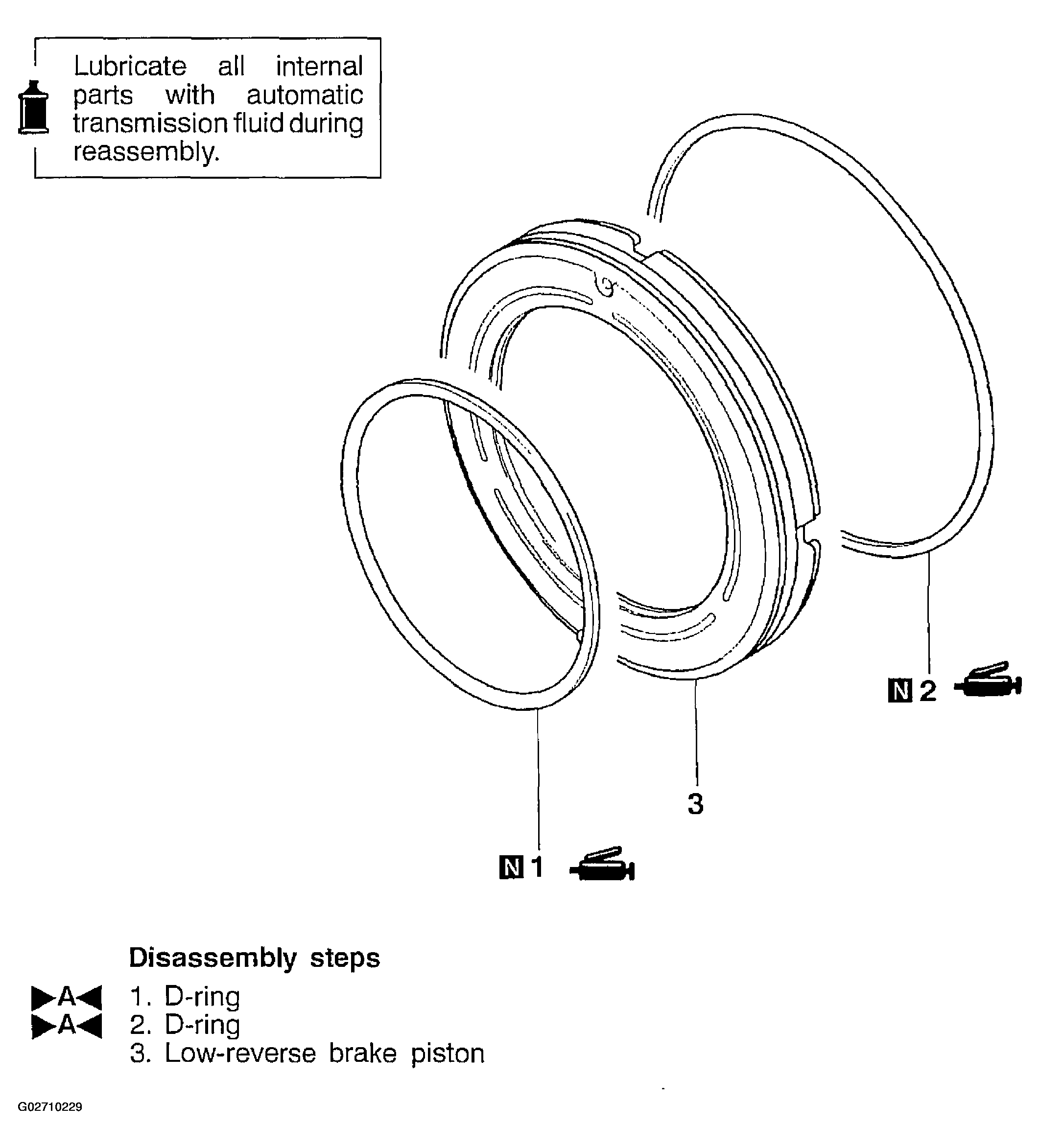

Fig 1: Exploded View Of Low-Reverse Brake Components

G02710229

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
