Shift Lock Mechanism Check

Carry out the following inspections.

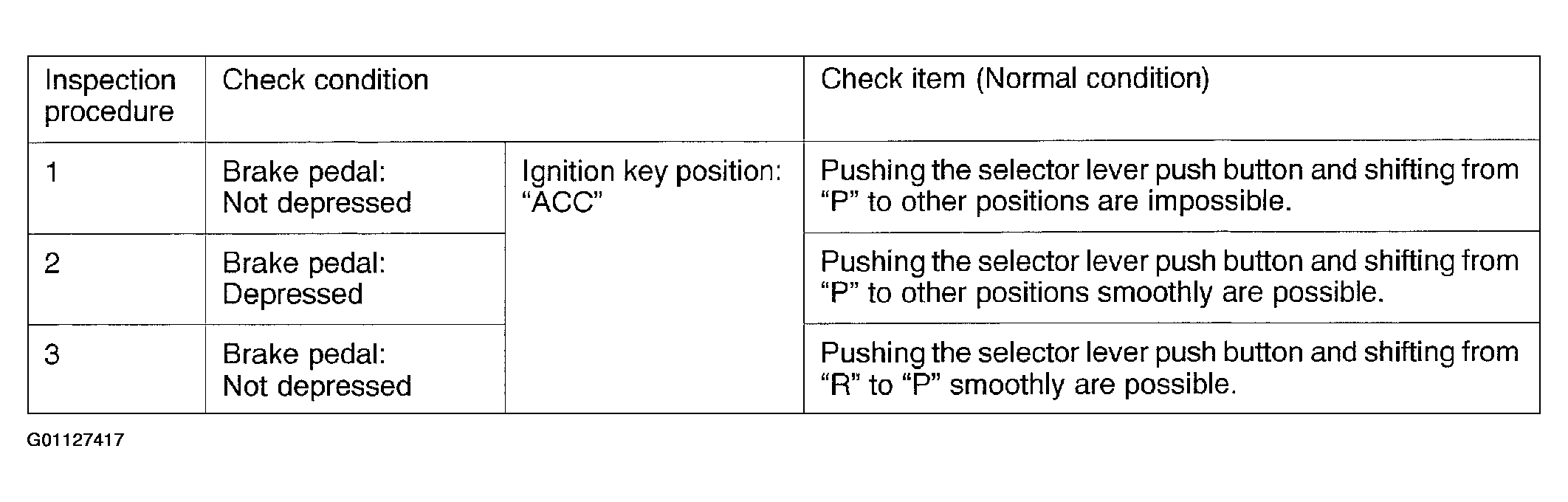

Fig 1: Inspecting Shift Lock Mechanism
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When the above operations are defective, adjust the shift lock cable as follows:
1. Remove the front floor console.
2. Shift selector lever to "P".
3. Loosen the locking nut of shift lock cable.
4. Tighten the locking nut so that the end of the shift lock cable comes above the red marking of the lock cam.
5. Install the front floor console.

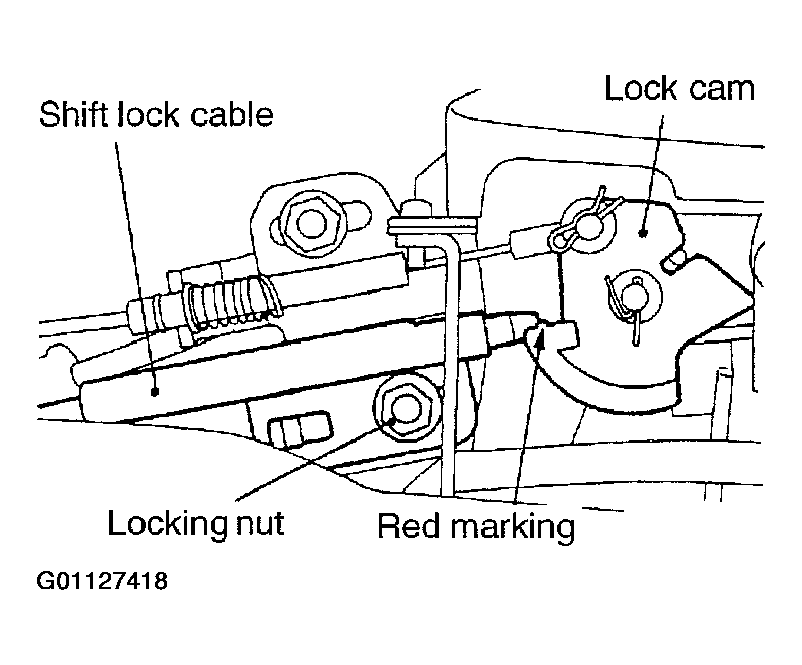

Fig 2: Adjusting Shift Lock Cable

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
