Installation Service Point
›
>A< Installation
>A< Installation
Put the selector lever in the "N" position.
Loosen the adjusting nut, gently pull the transaxle control cable in the direction of the arrow and tighten the nut.

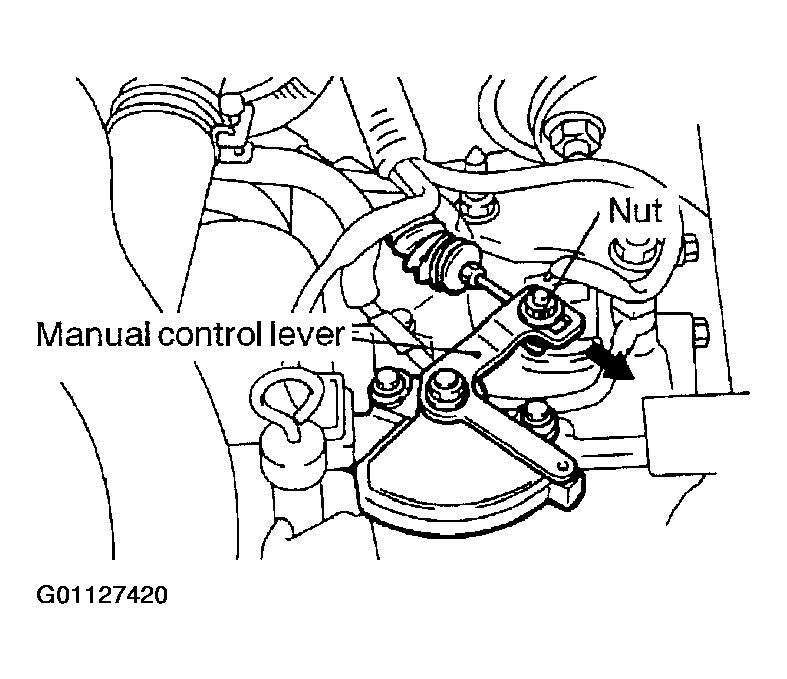

Fig 1: Installing Nut
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
