Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Servicing A/T
›
Transaxle Control
›
Selector Lever Assembly
›
Disassembly And Reassembly
Disassembly And Reassembly

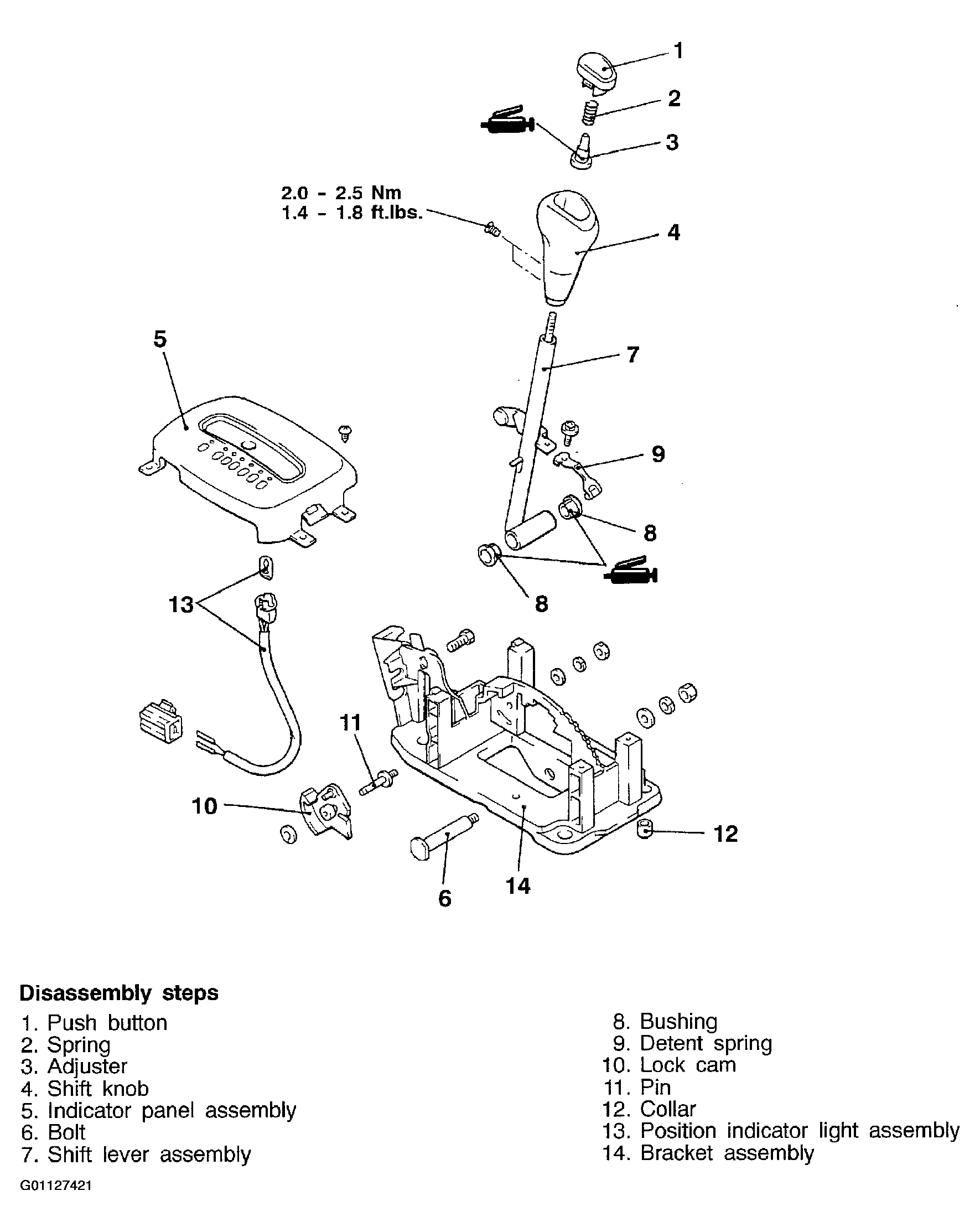

Fig 1: Exploded View Of Selector Lever Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
