General Information: Notes

The clutch is a dry single-disc, diaphragm type; hydraulic pressure is used for the clutch control.

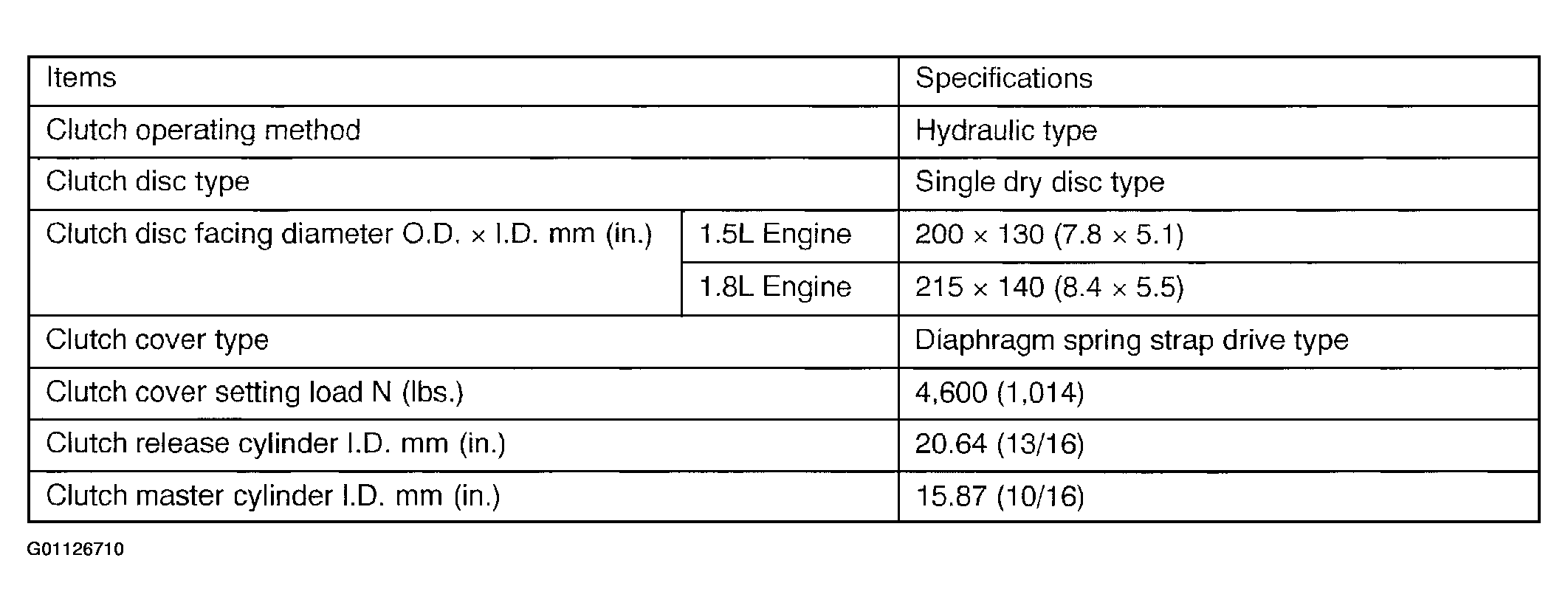

Fig 1: Clutch Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
