Transaxle Control
›
Shift Lever Assembly
›
Disassembly And Reassembly
Disassembly And Reassembly

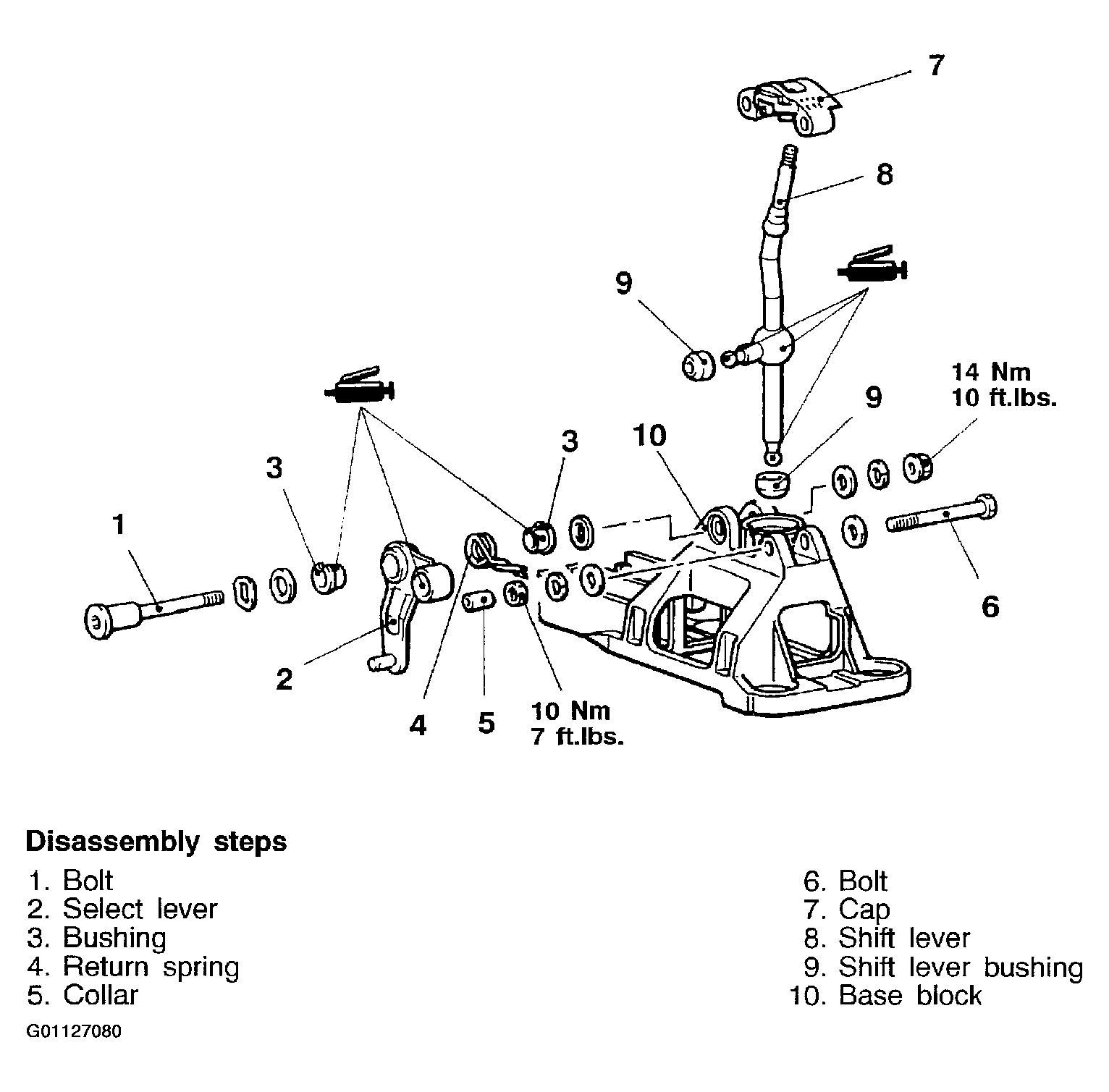

Fig 1: Exploded View Of Shift Lever Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
