Scan Tool Data

During normal ABS operation following items can be read with scan tool. See Fig 1 . If on board diagnostics stops ABS operation, scan tool data display will not be readable.

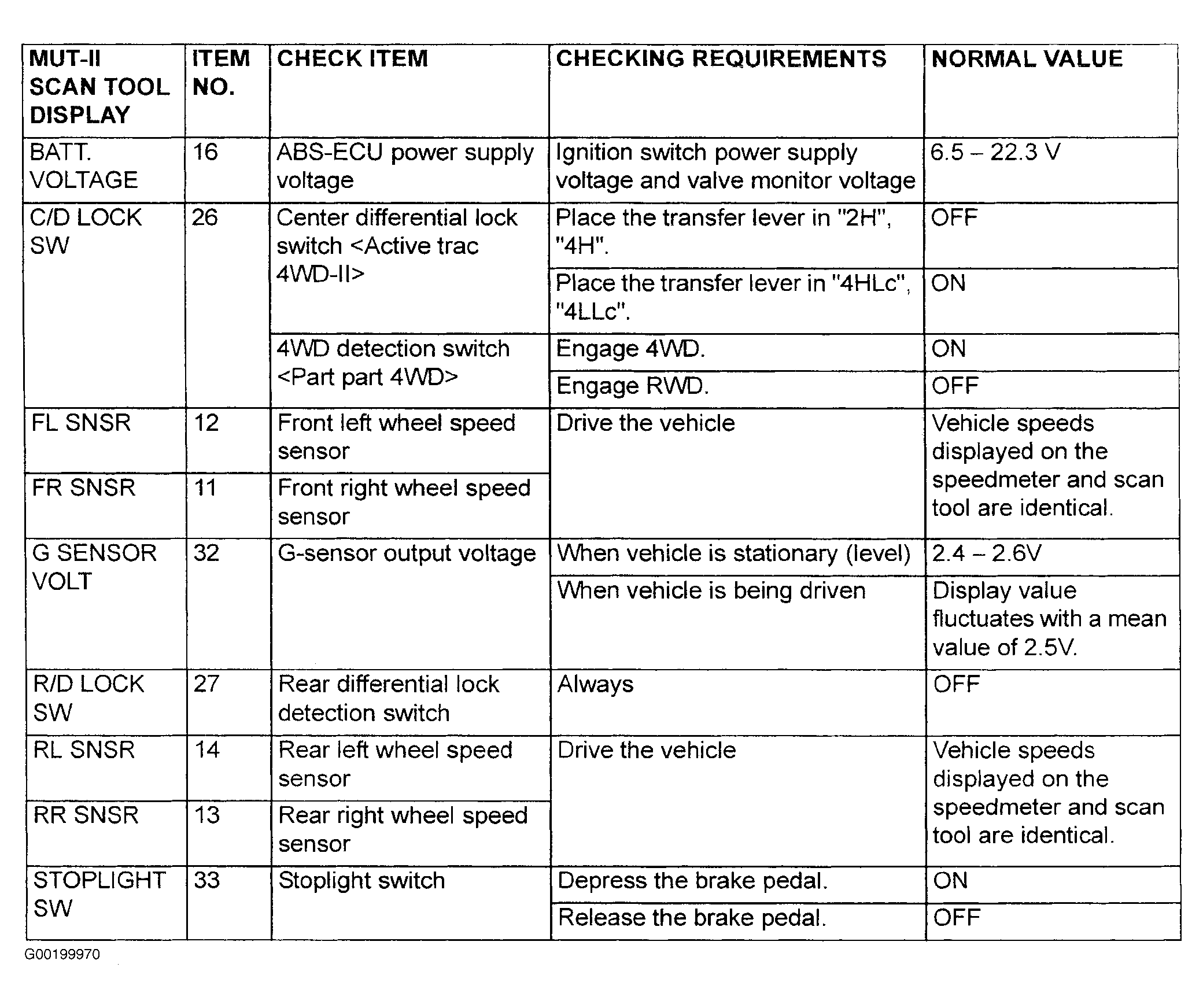

Fig 1: Scan Tool Data List Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
