Home › Mitsubishi › 2002 › Montero Sport LS, RWD › Repair and Diagnosis › Body & Frame › Power Windows › Power Window Diagnosis › Symptom Procedures › INSPECTION PROCEDURE 2: Power Window Timer Function does not Work Normally. (Power Window Operates) › Notes

INSPECTION PROCEDURE 2: Power Window Timer Function does not Work Normally. (Power Window Operates): Notes

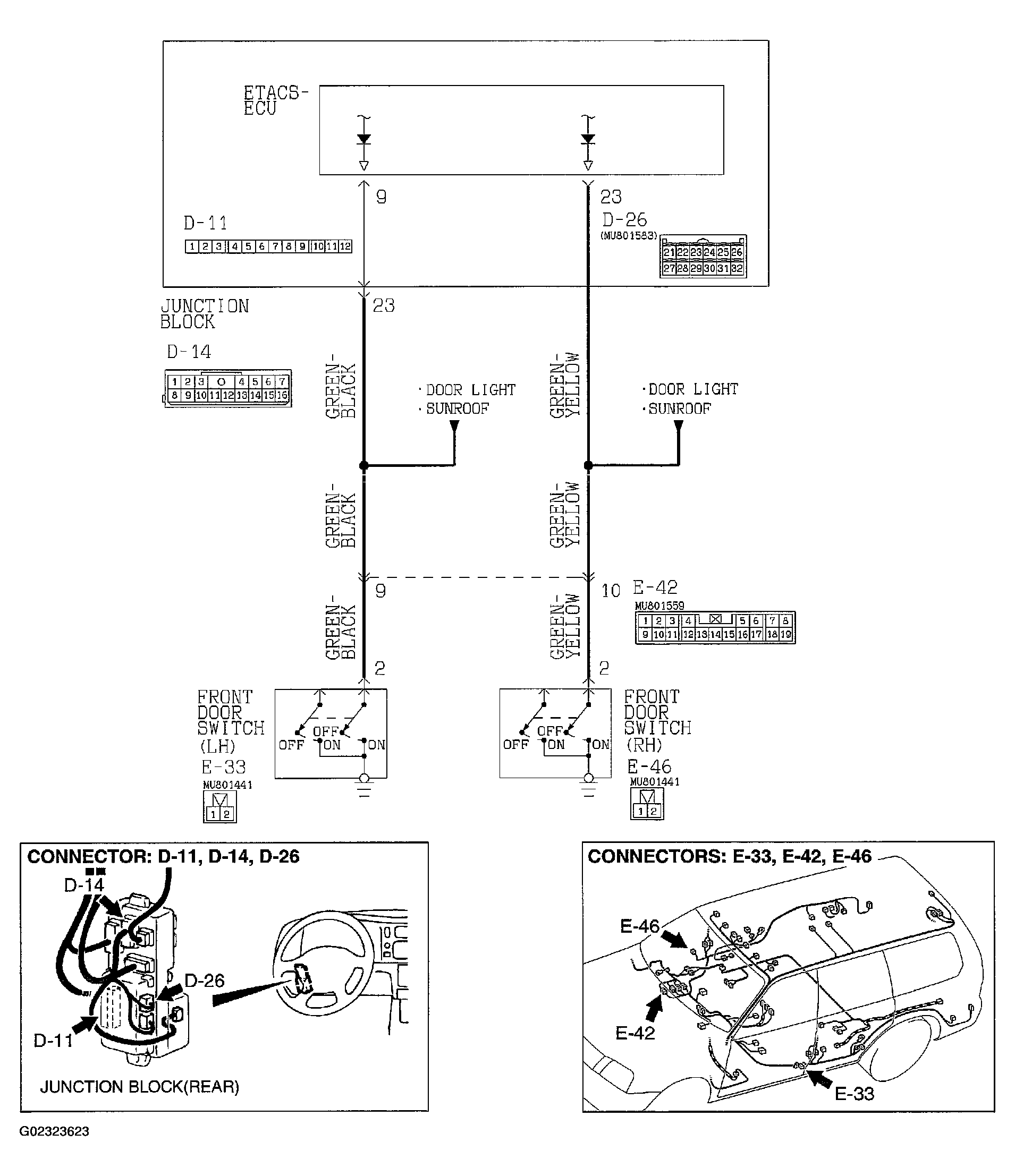

Fig 1: Front Door Switch Circuit Diagram & Connector Locations
G02323623Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
