SWS Monitor
If a problem is found in the Service Data inspection, observe the table below.

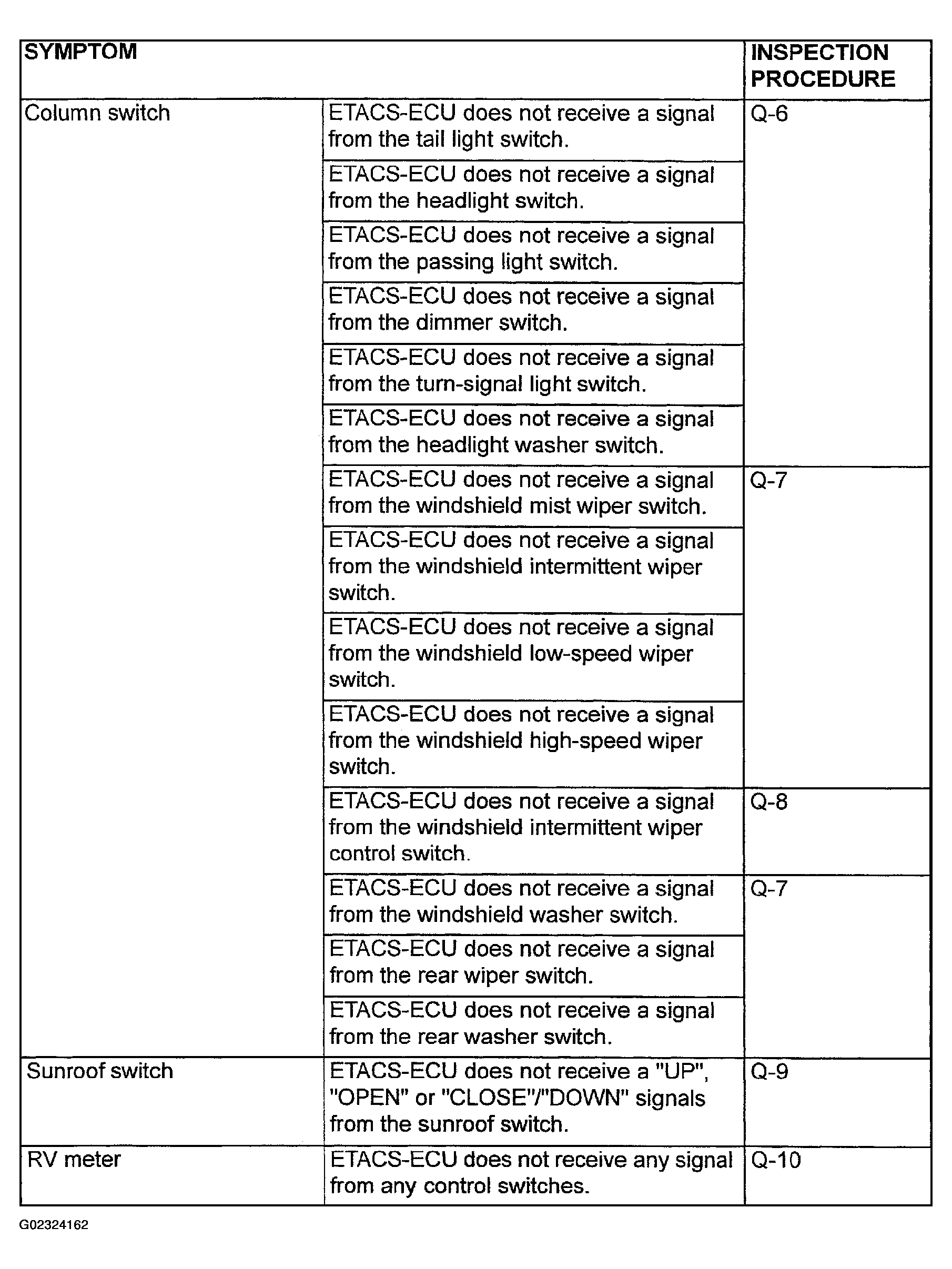

SWS MONITOR DEFECTS
| SYMPTOM | INSPECTION PROCEDURE |
|---|---|
| ETACS-ECU does not receive a signal from the ignition switch (ACC). | Q-1 |
| ETACS-ECU does not receive a signal from the ignition switch (IG1). | Q2 |
| ETACS-ECU does not receive a signal from the fog light switch. | Q3 |
| ETACS-ECU does not receive "R" position signal from the park/neutral position switch. | Q4 |
| ETACS-ECU does not receive a signal from the driver's or front passenger's door switch. | Q5 |
