Power Window Relay Continuity Check
Power Window Relay Continuity Check

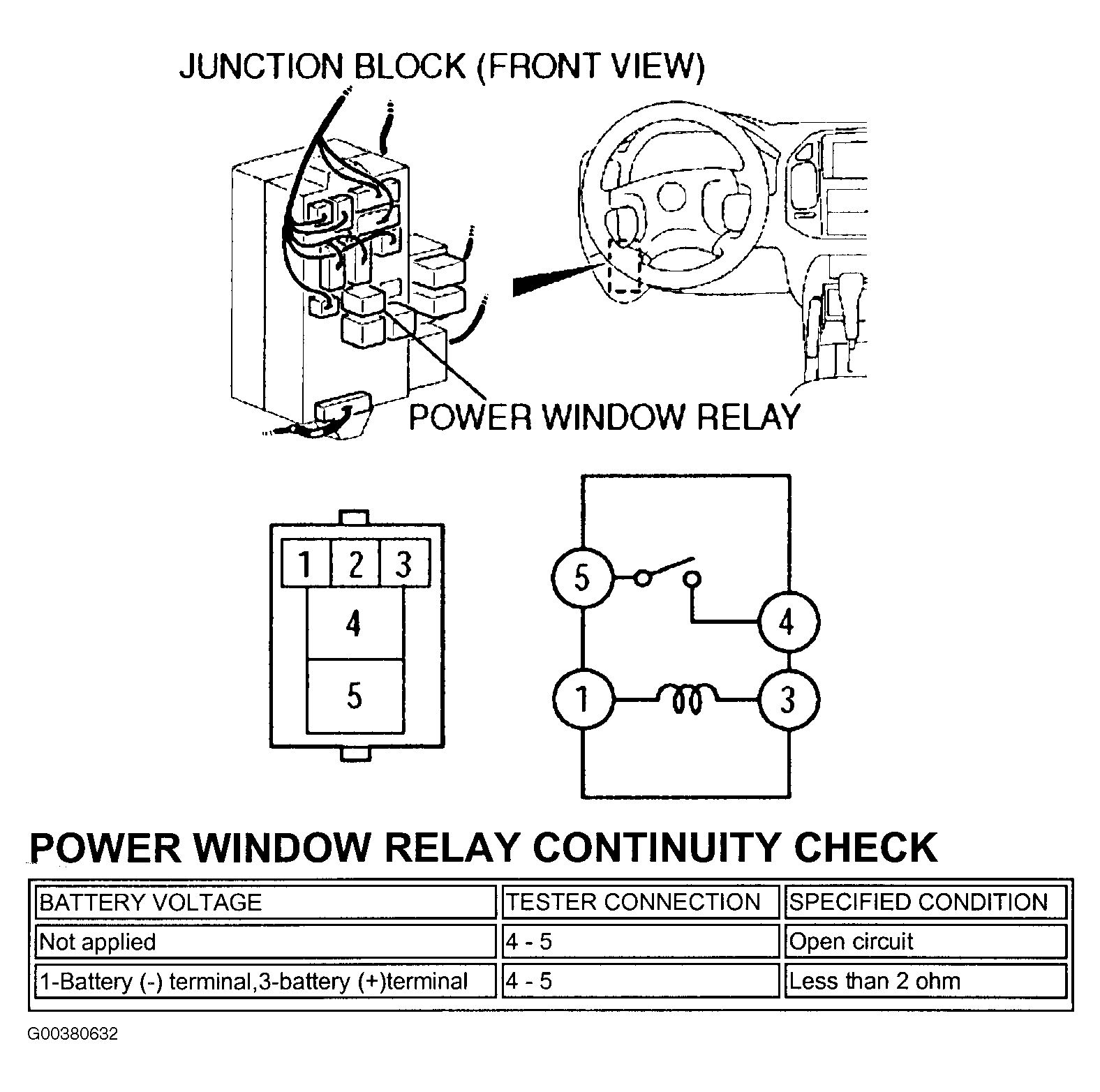

Fig 1: Checking Power Window Relay Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
