Remote Controlled Mirror Switch Continuity Check
Remote Controlled Mirror Switch Continuity Check

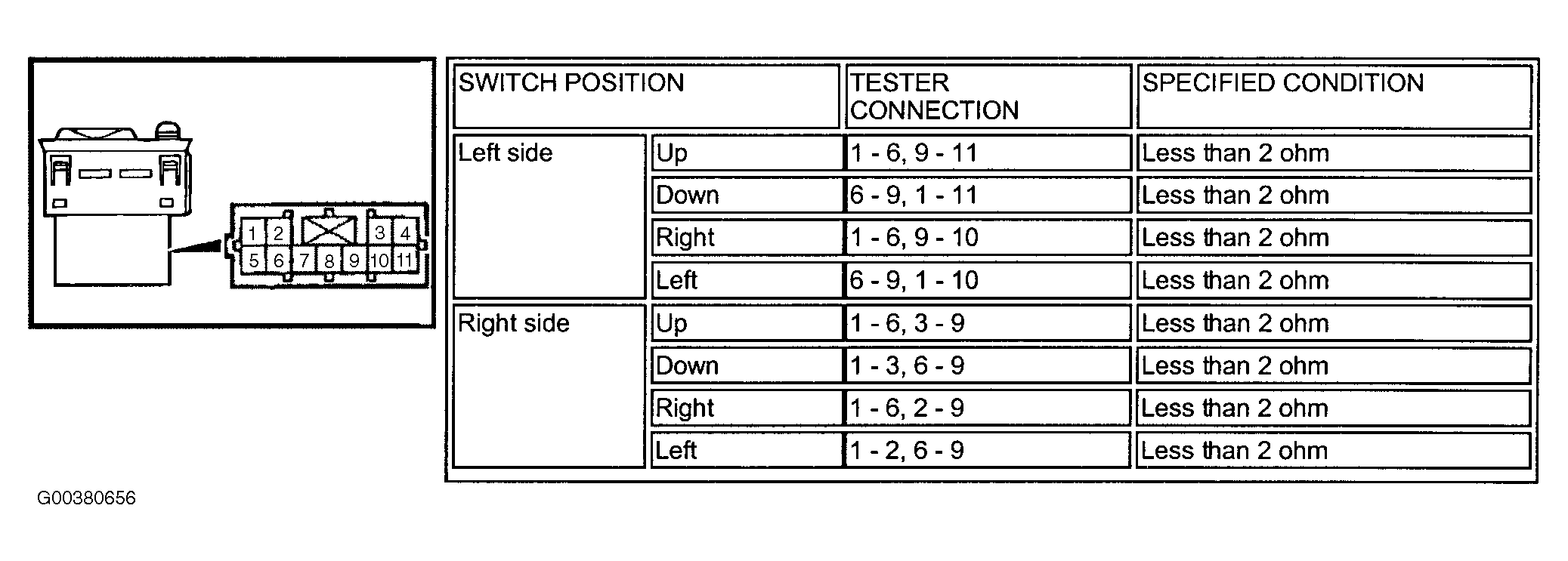

Fig 1: Checking Remote Controlled Mirror Switch Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
