Abs Valve Relay

Remove ABS valve relay from junction box in driver's side kick panel. See Fig 1 . Using a DVOM, check for continuity between relay terminals as specified. See Fig 1 . If relay does not test as specified, replace relay.

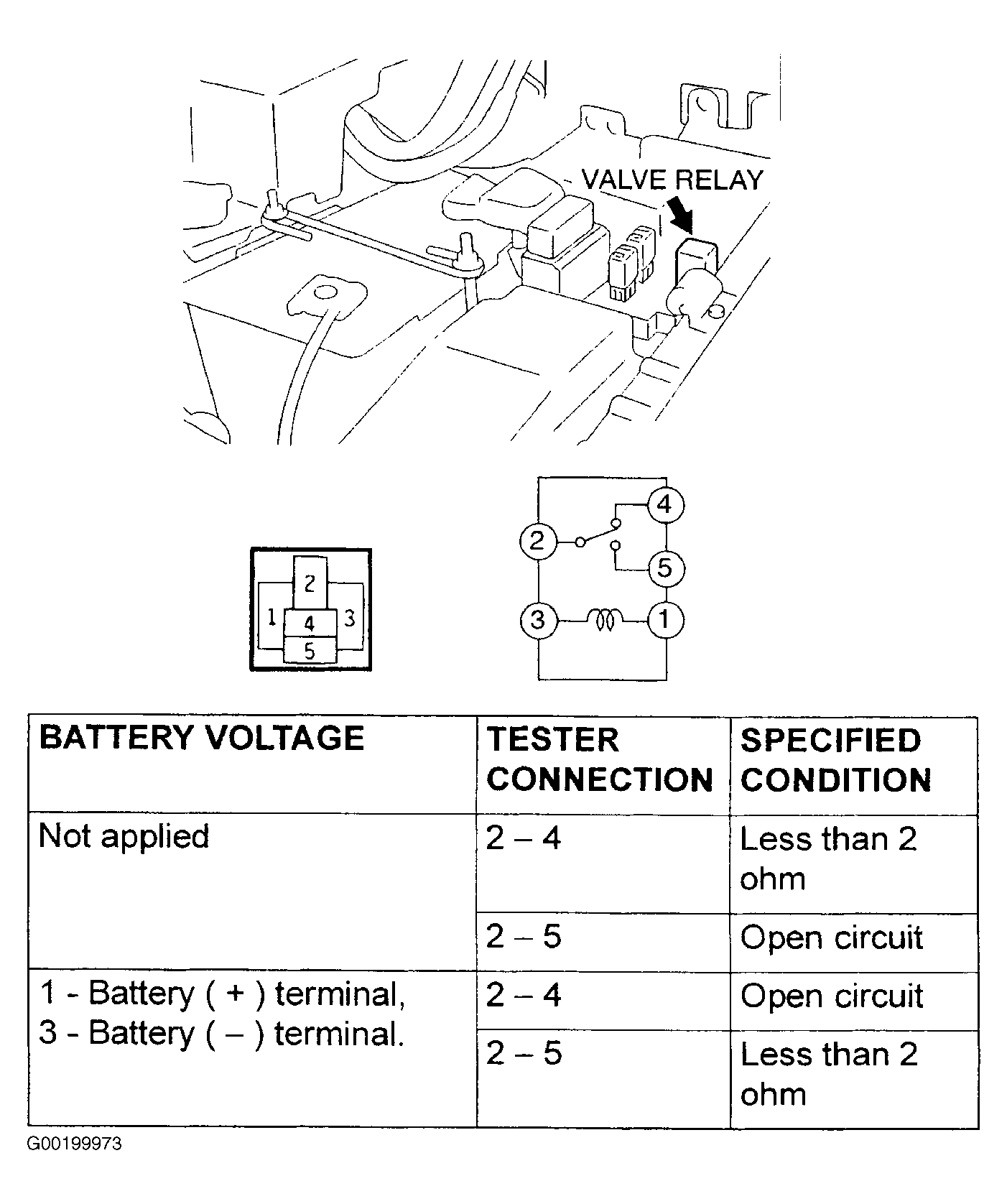

Fig 1: Locating & Testing ABS Valve Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
