G-Sensor Circuit Connector End Views
G-Sensor Circuit Connector End Views

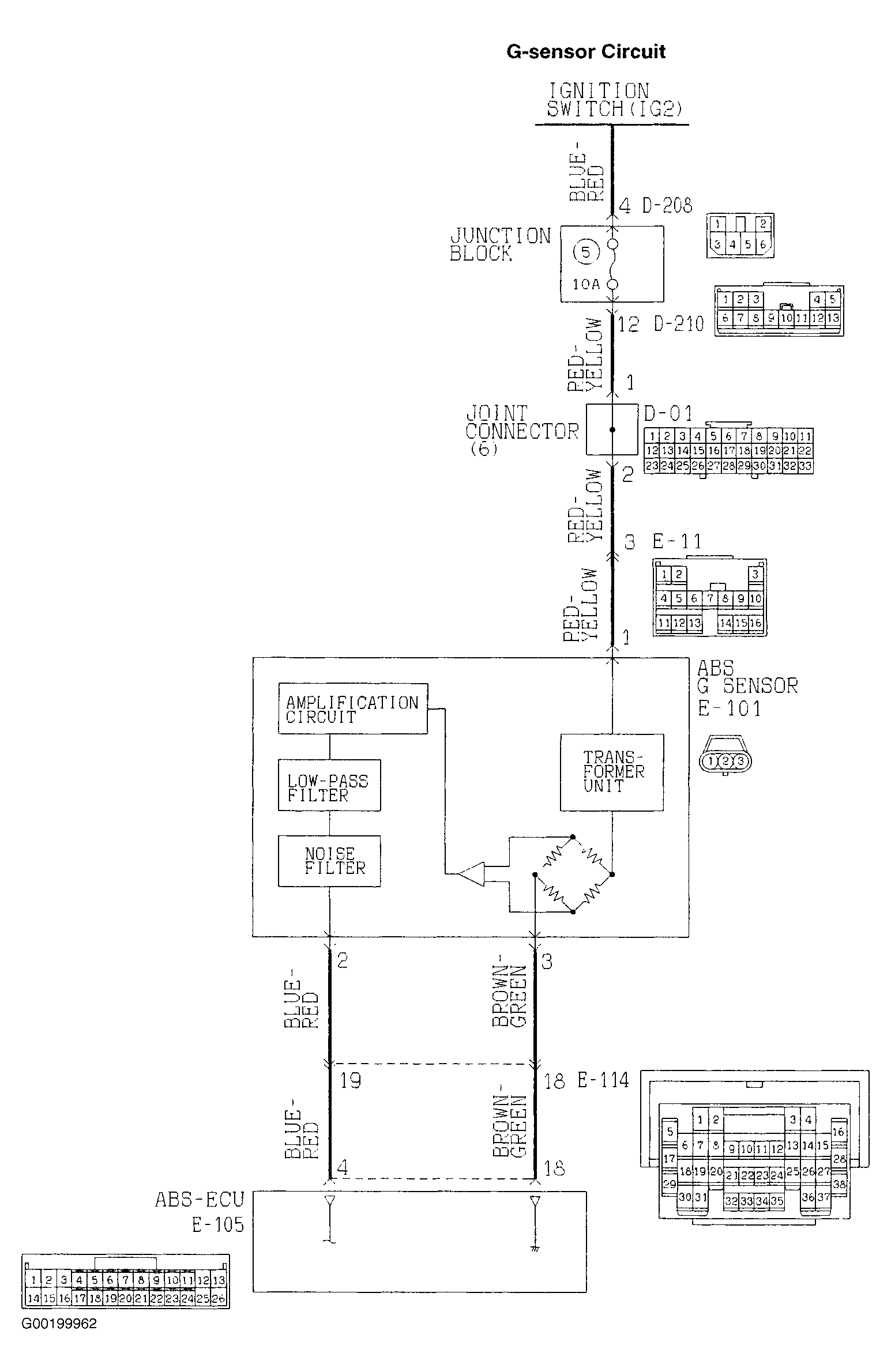

Fig 1: G-Sensor Circuit Connector End Views
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
