Radiator Removal And Installation
›
Notes
Radiator Removal And Installation: Notes

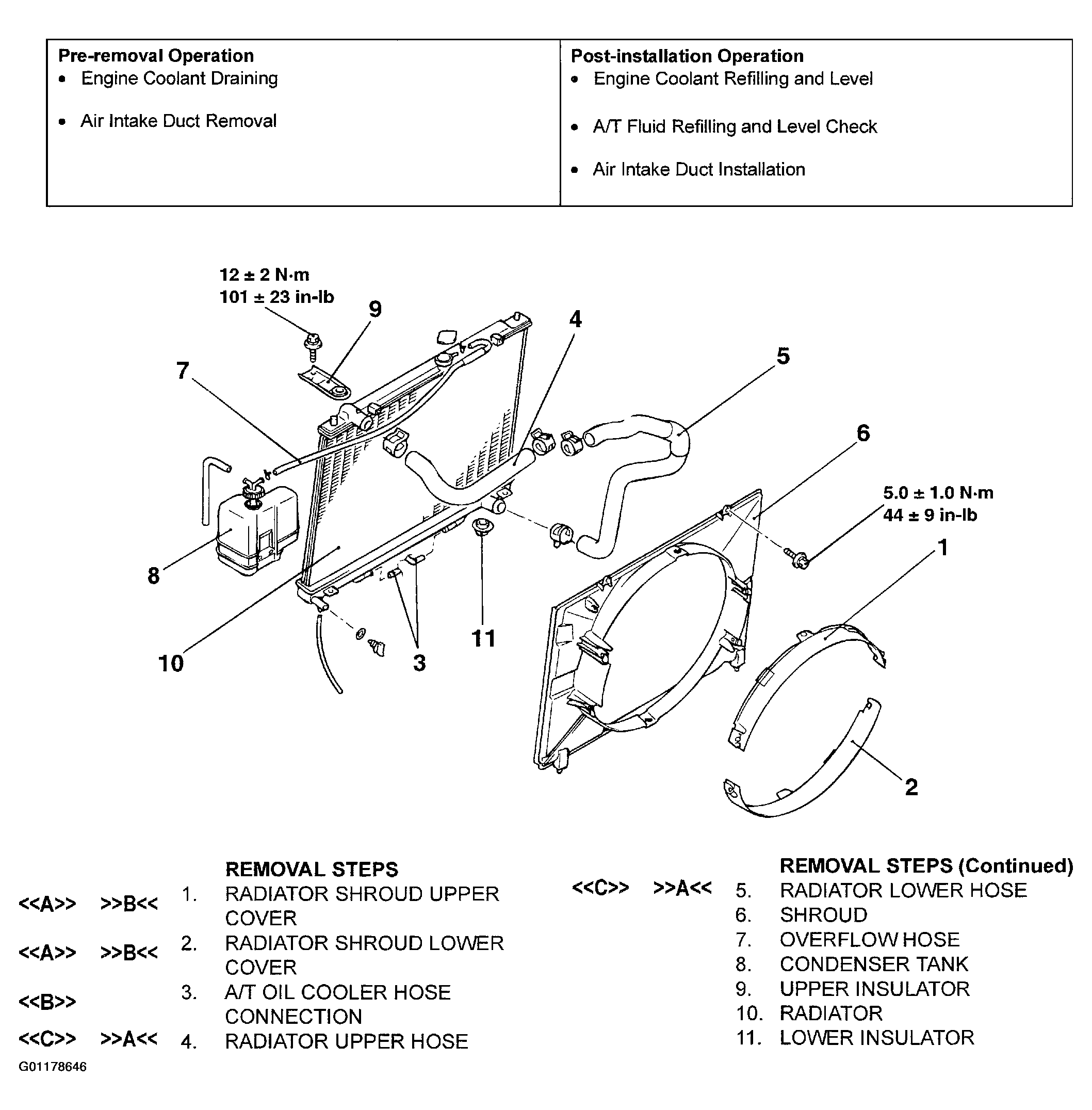

Fig 1: Identifying Radiator & Attachments
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
