Disassembly And Assembly: Notes

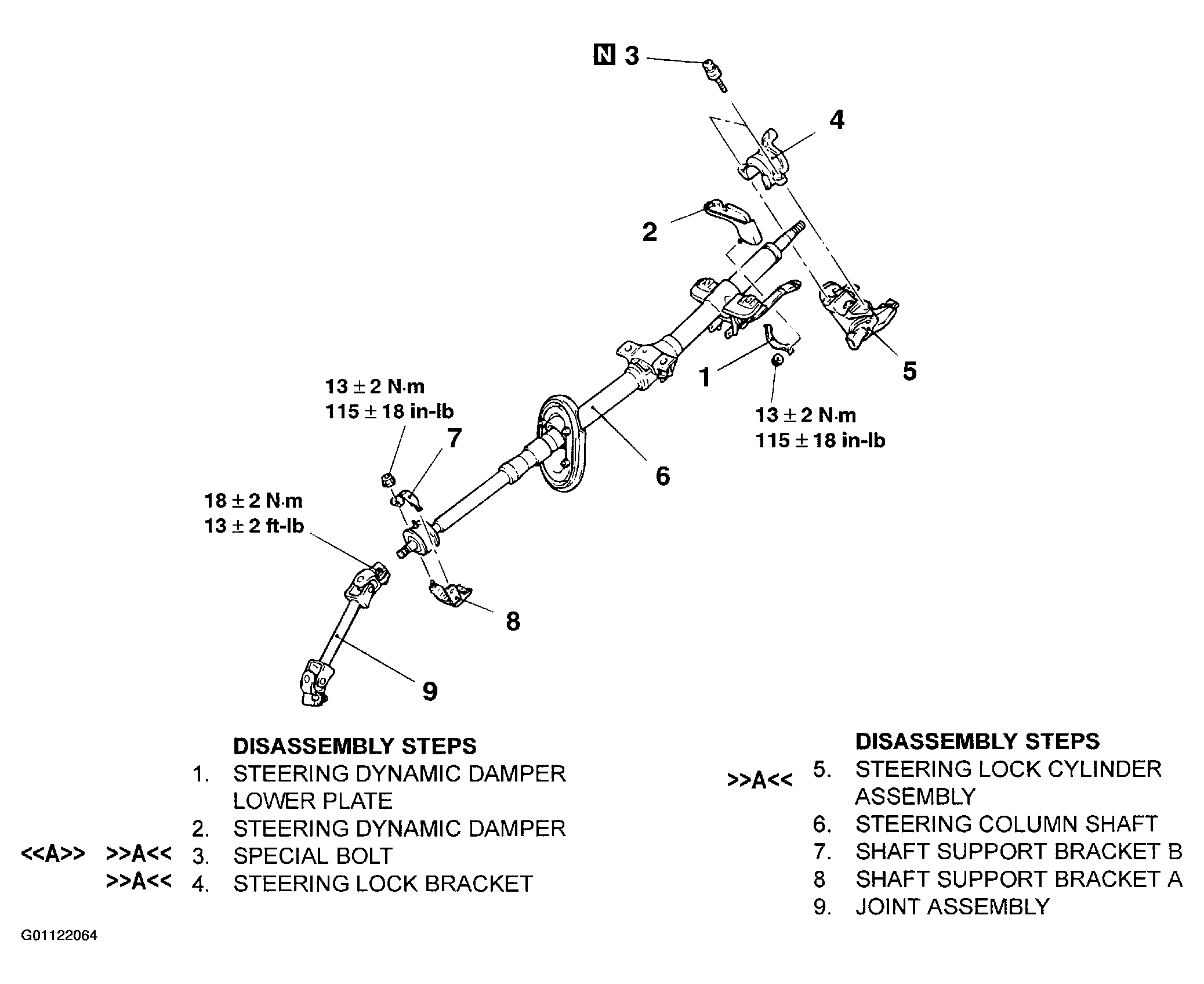

Fig 1: Dissembling Steering Column Switch Components

G01122064

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
