Hydraulic Control System < 4-Speed Model >
Hydraulic Control System < 4-Speed Model >

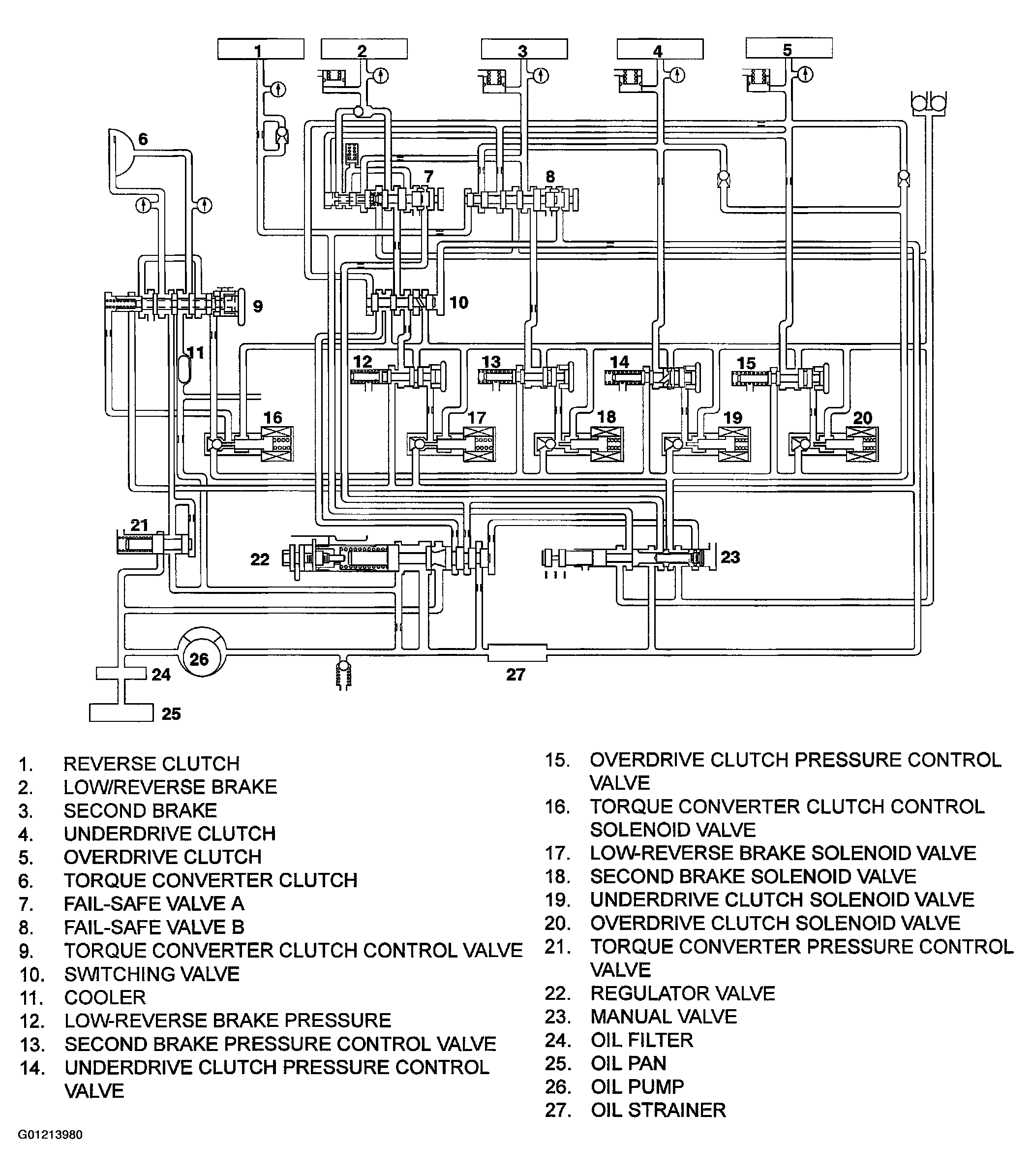

Fig 1: Identifying Hydraulic Control System (4-Speed Model)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
