Disassembly And Assembly
Disassembly And Assembly

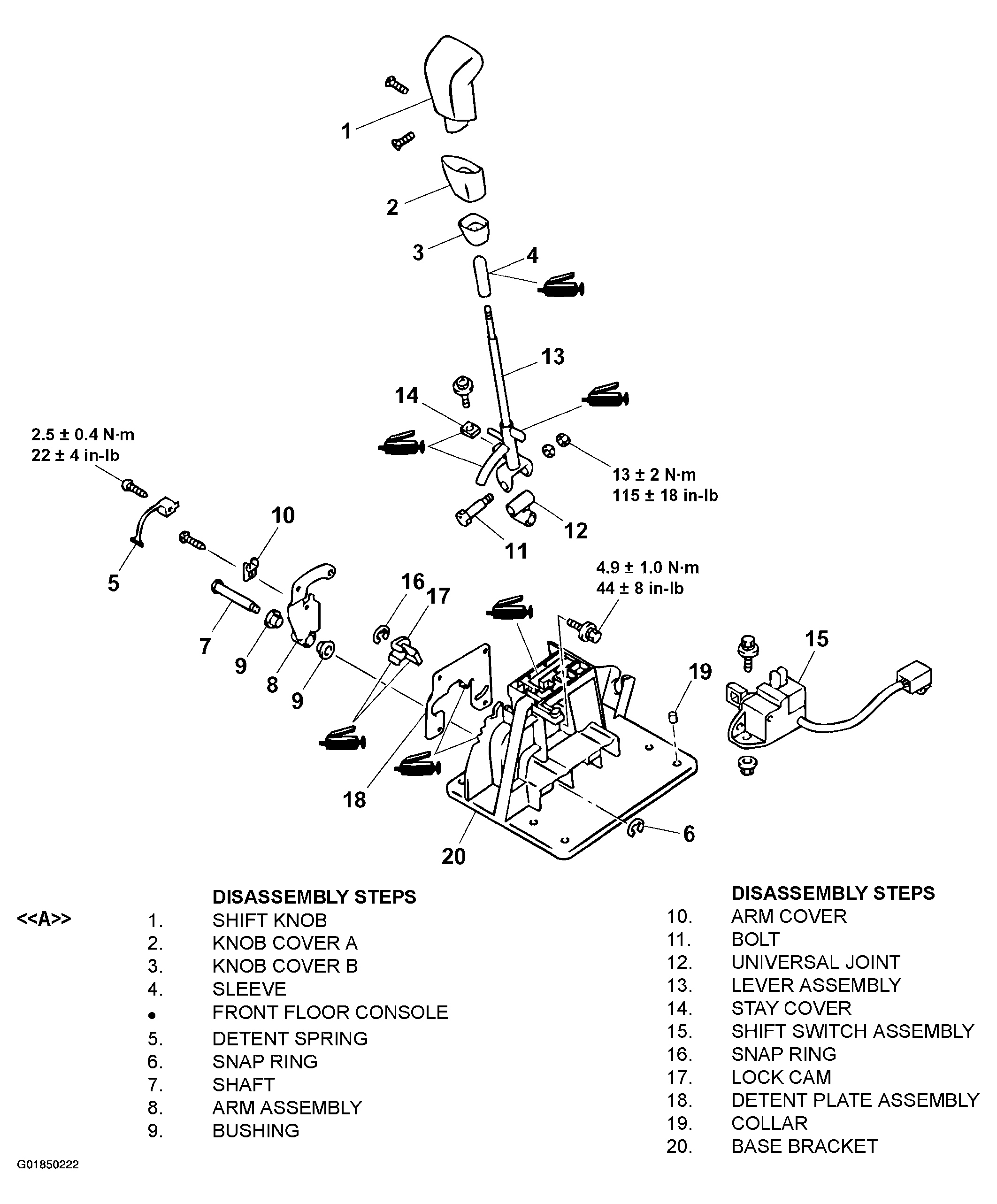

Fig 1: Disassembly & Assembly Of Transmission Control
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
MB990784: Ornament Remover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
