Battery
›
On-Vehicle Service
›
Battery Testing Procedure
›
Test Step
Test Step

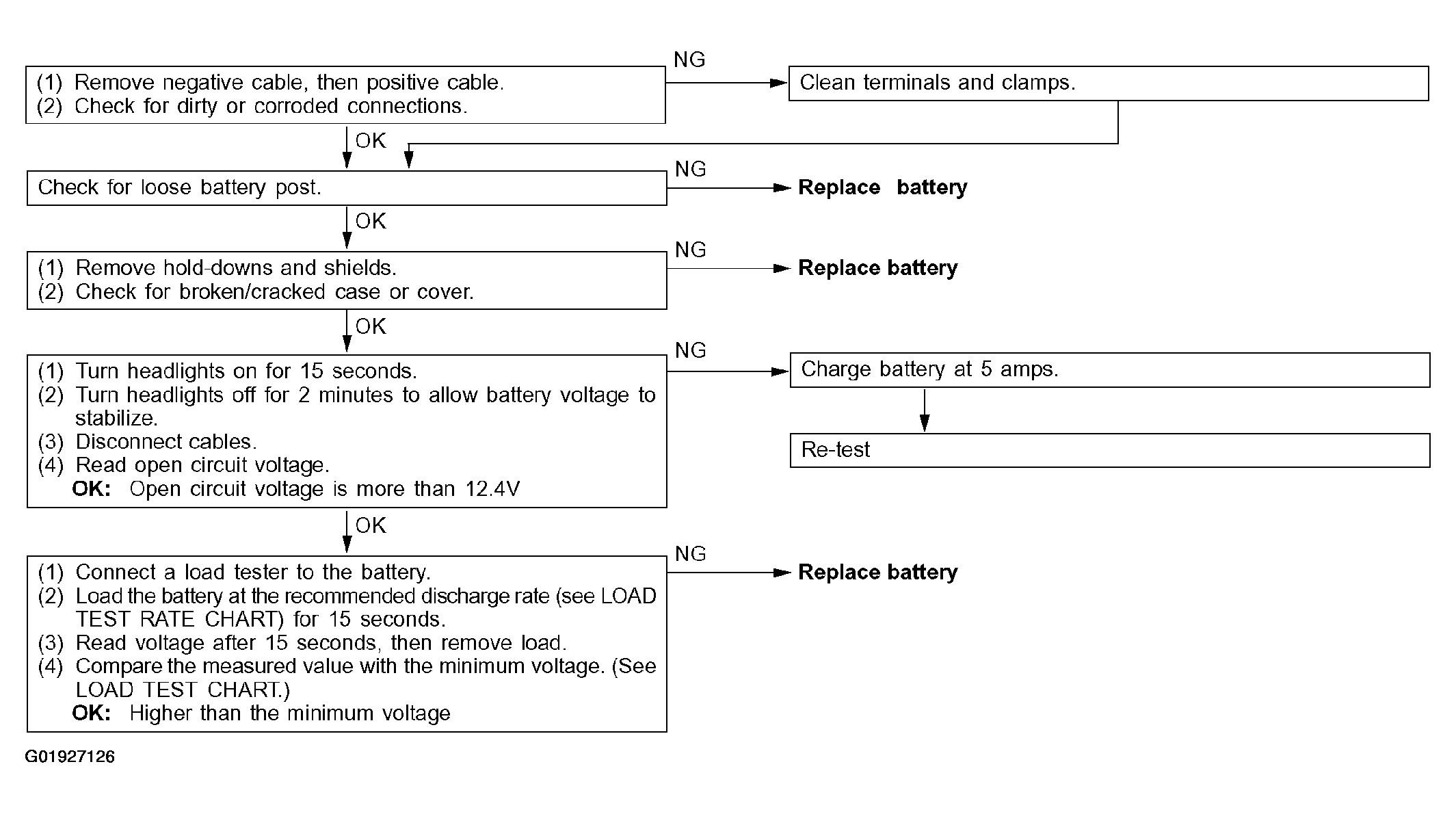

Fig 1: Battery Testing Procedure Flow Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
