Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Component Location |
| Engine Compartment Relay Box |

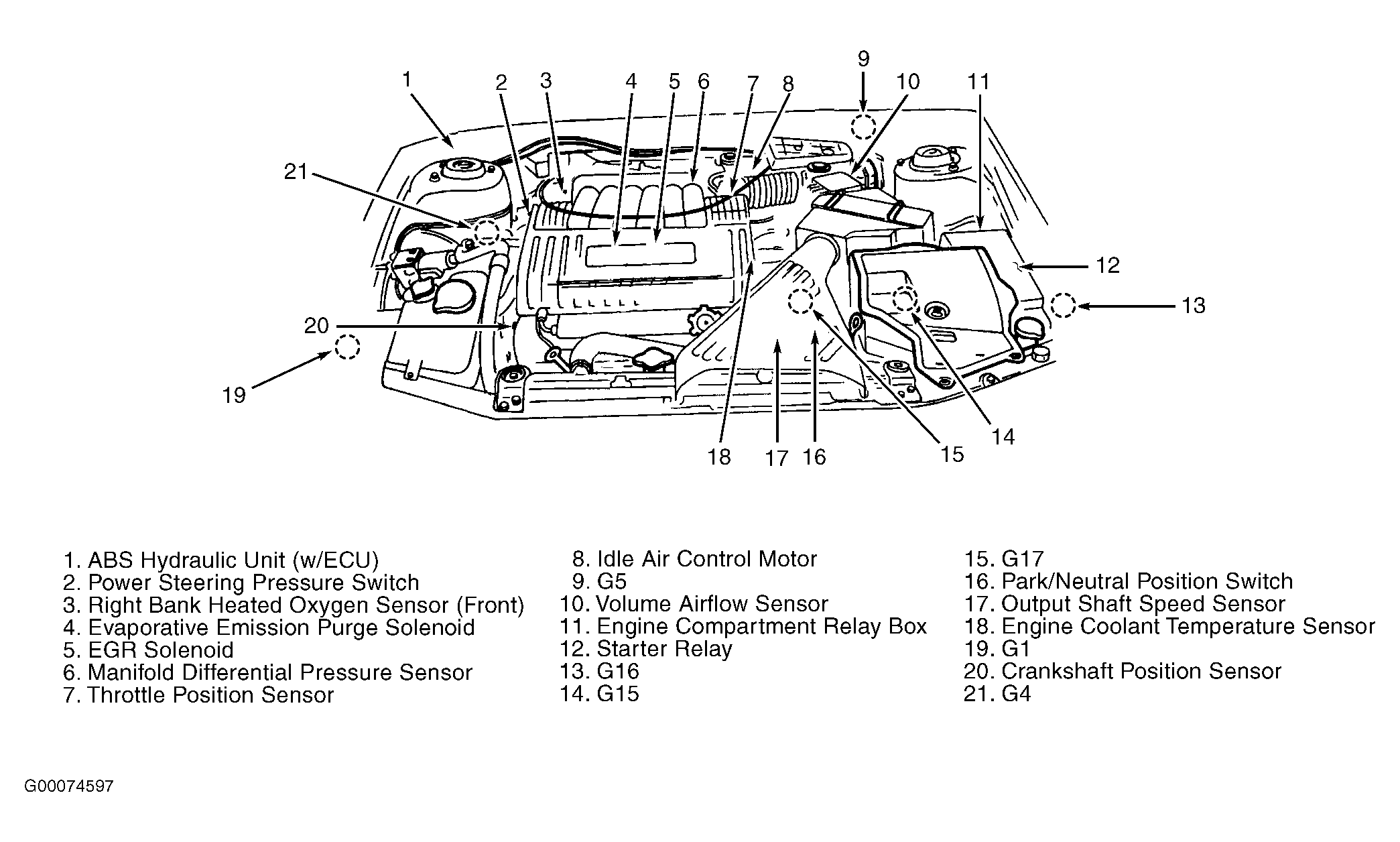

On left front fender. See Figure. |
| Fuse Box |

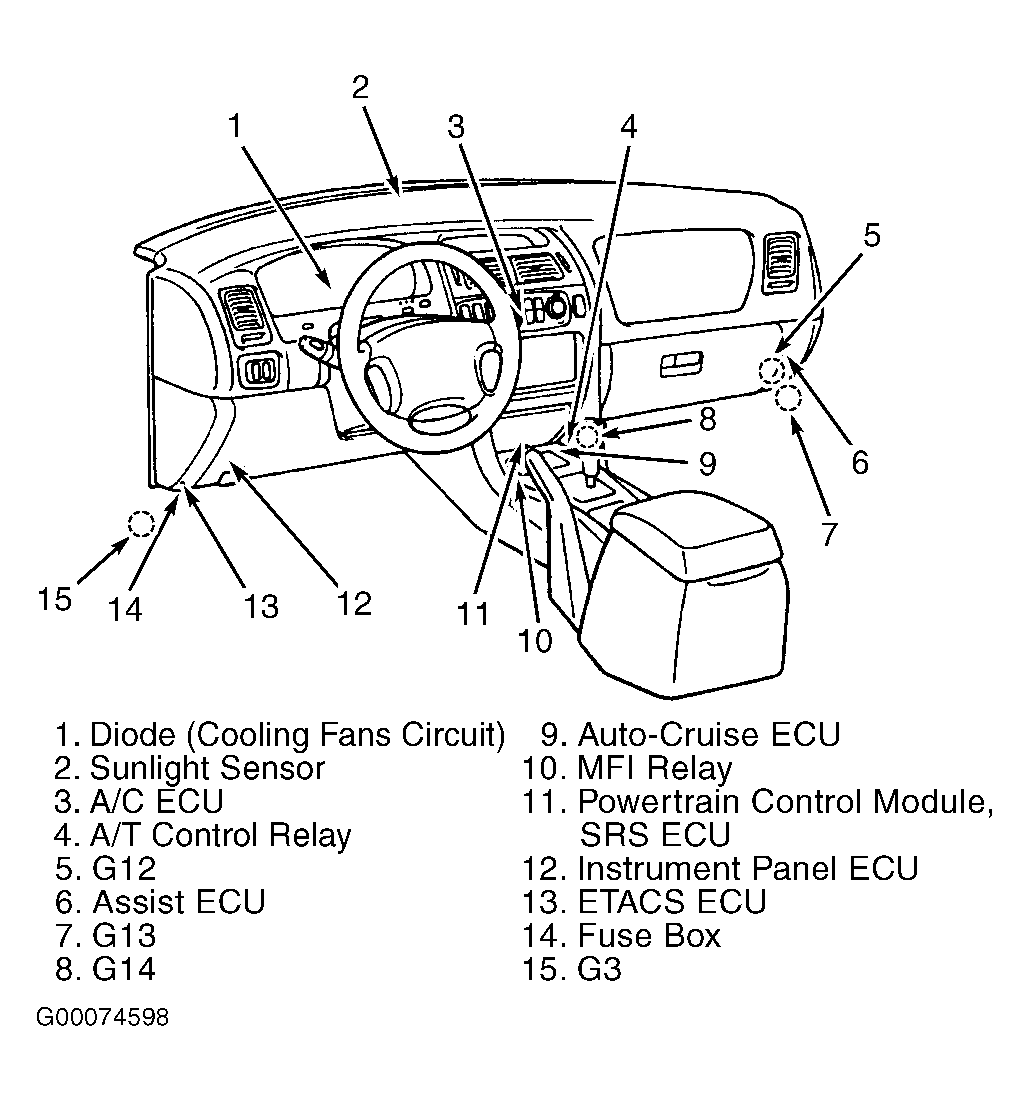

Behind left side of dash, next to junction block. See Figure. |
| Fusible Links |
In engine compartment relay box. |
| Junction Block |
Behind left side of dash. |
