Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS ECU | At right rear corner of engine compartment. |
| A/C ECU | Behind A/C control panel. See Figure. |
| Assist ECU | Under right side of dash, near kick panel. See Figure. |
| Auto-Cruise ECU | Under center of dash, forward of center console. See Figure. |
| ETACS ECU | Behind left side of dash, near kick panel. See Figure. |
| Front Door Module (Left) | On left front door. See Figure. |
| Front Door Module (Right) | On right front door. |
| Immobilizer ECU | Under center of dash, forward of center console. |
| Instrument Panel ECU | Behind left side of dash. See Figure. |

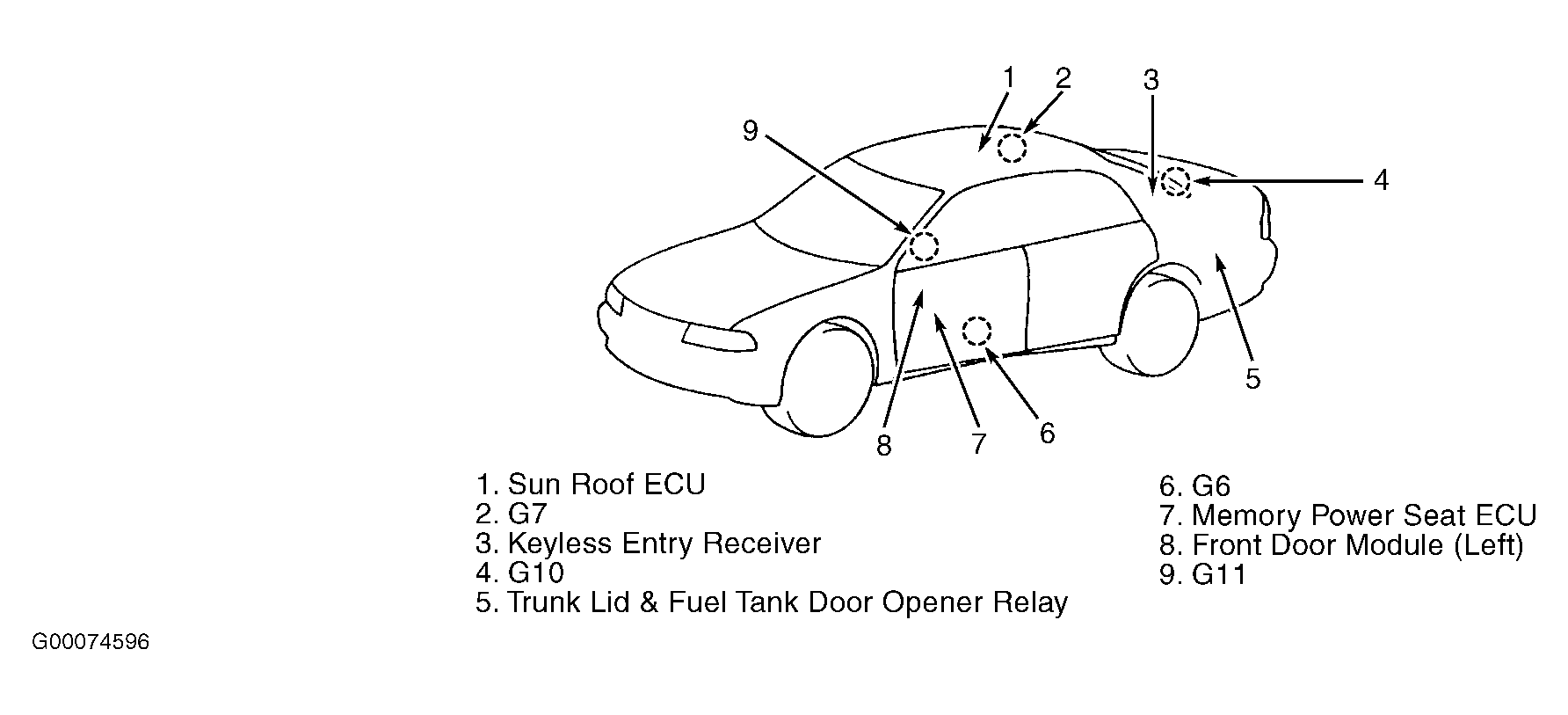

| Keyless Entry Receiver | Under center of rear shelf. See Figure. |
| Memory Power Seat ECU | Under driver's seat. See Figure. |
| Powertrain Control Module | Under center of dash, forward of center console. See Figure. |
| SRS ECU | Under center of dash, forward of center console. See Figure. |
| Sun Roof ECU | Under headliner, near sun roof motor. See Figure. |
| Traction Control ECU | Under center of dash, forward of center console. |
