Wheel Alignment
›
Adjustment Specifications
Adjustment Specifications

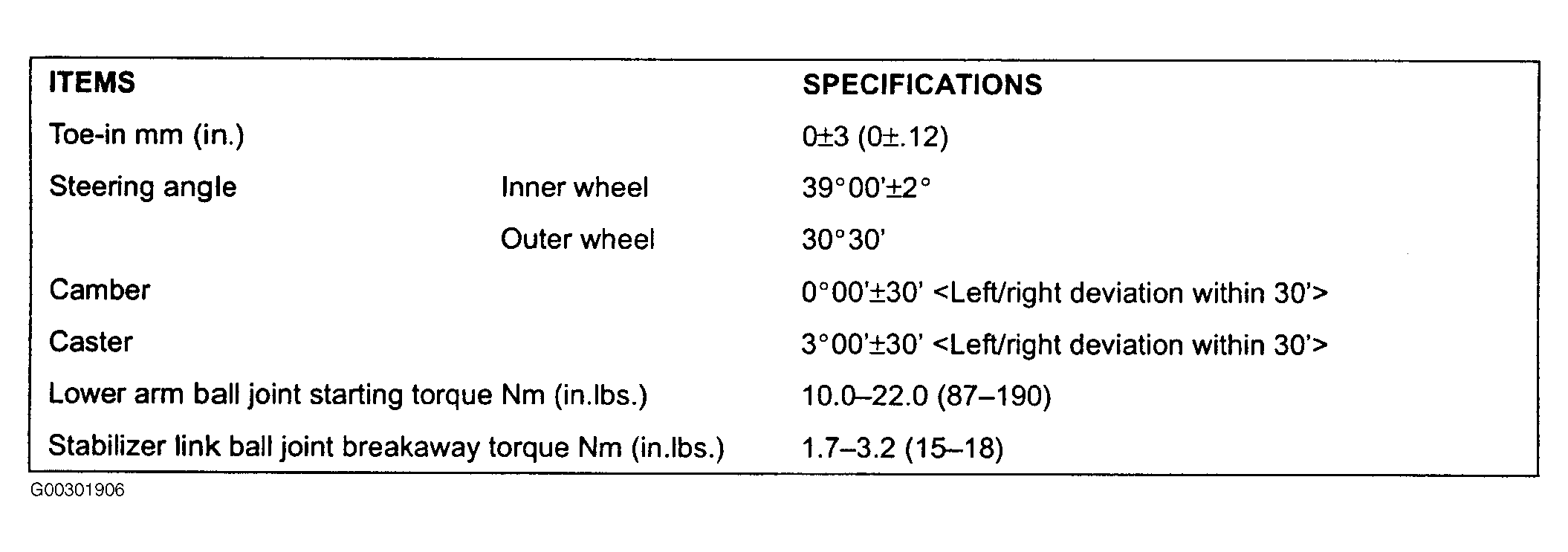

Fig 1: Wheel Alignment Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
