<3.0L Engine>

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

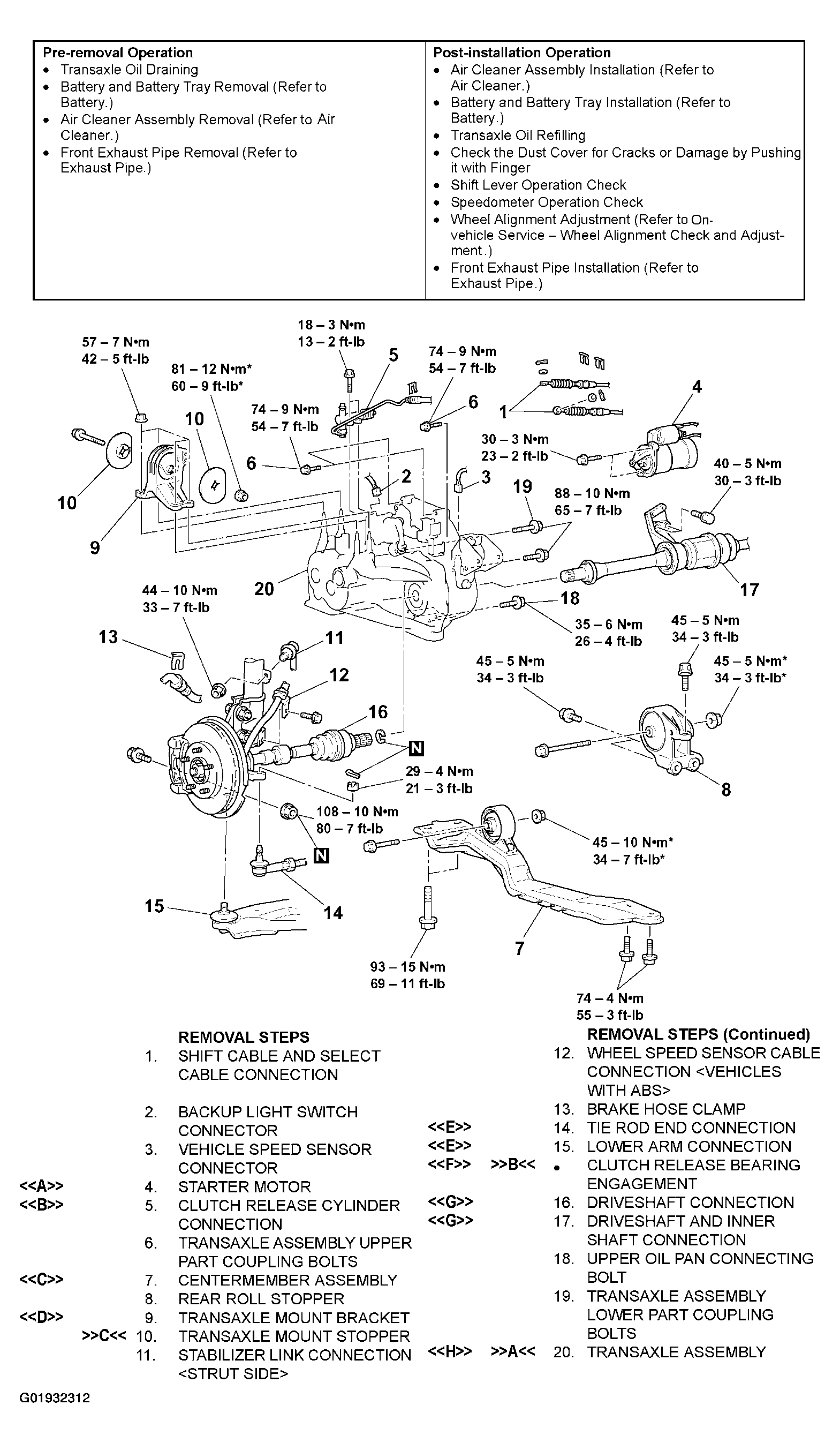

Fig 1: Exploded View And Torque Specifications Of Transaxle Assembly (3.0L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991113: Steering Linkage Puller
MB991453: Engine hanger attachment set
MZ203827: Engine Lifter
MB991454: Engine hanger balancer (MB991453, part of the engine hanger attachment set)
MB991895: Engine Hanger
