FixVault
Home
›
Mitsubishi
›
2003
›
Eclipse GTS, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Ignition System
›
Ignition Coil
›
Removal And Installation <2.4L Engine>
Removal And Installation <2.4L Engine>

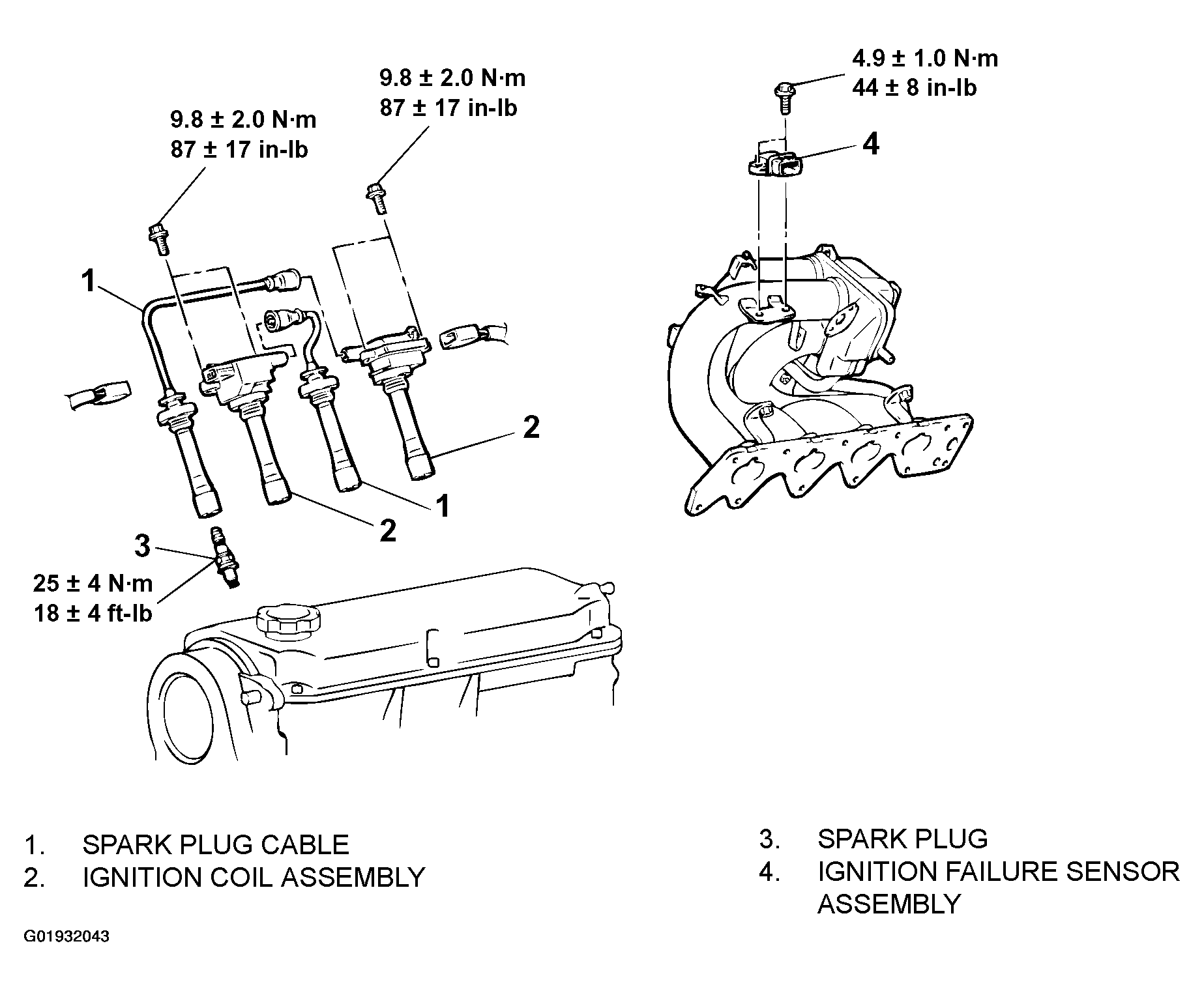

Fig 1: Removing Ignition Coil And Torque Specifications - 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
