>>F<< Lock Pin Installation

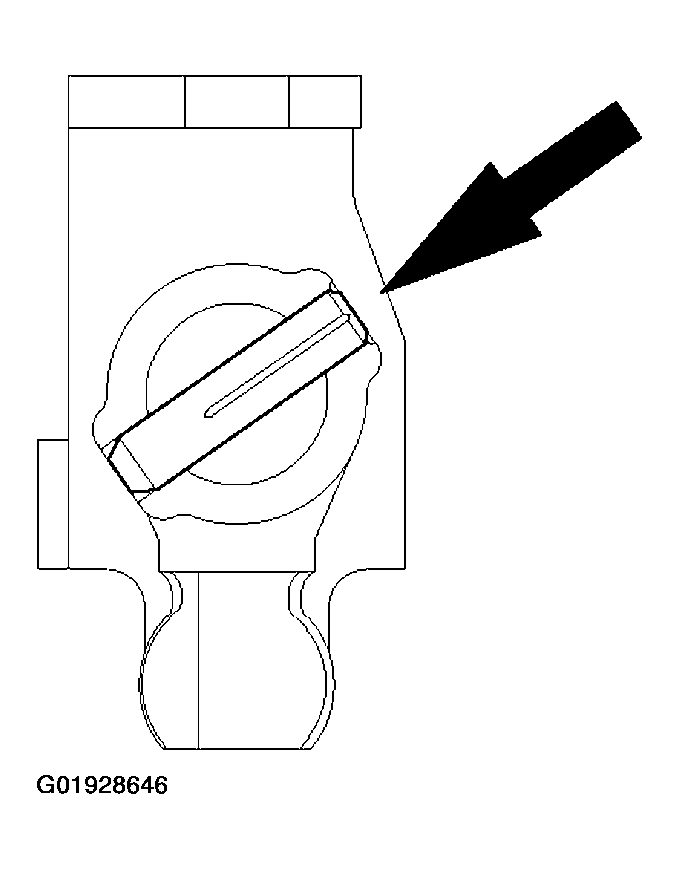

Drive the lock pin in from the direction shown in the figure.
Fig 1: Identifying Direction For Installing Lock Pin
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
