DTC 53: Pump Motor
›
Notes
DTC 53: Pump Motor: Notes

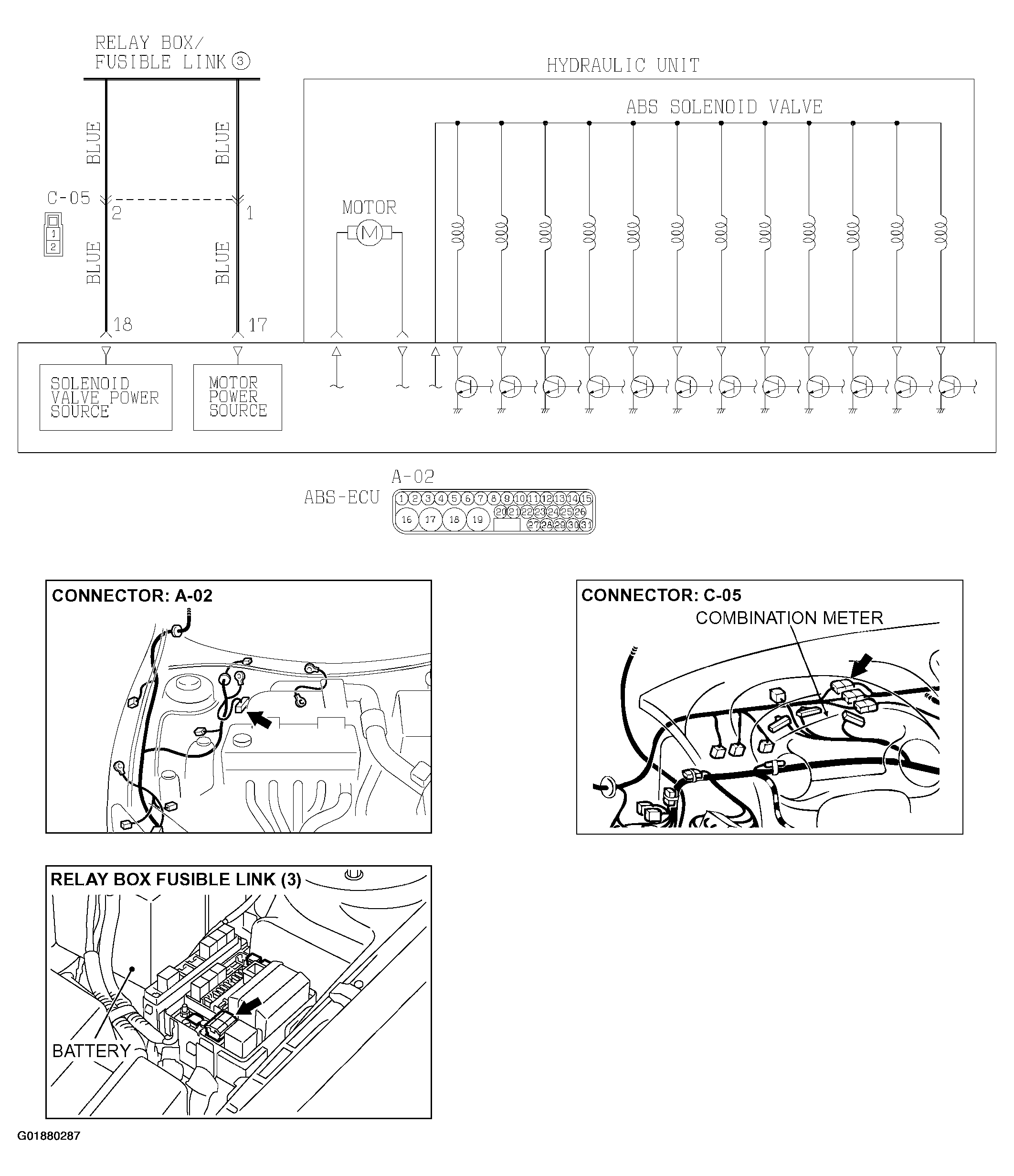

Fig 1: Circuit Diagram - Solenoid Valve And Motor Power Supply
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
