Removal And Installation <2.4L Engine>
Removal And Installation <2.4L Engine>

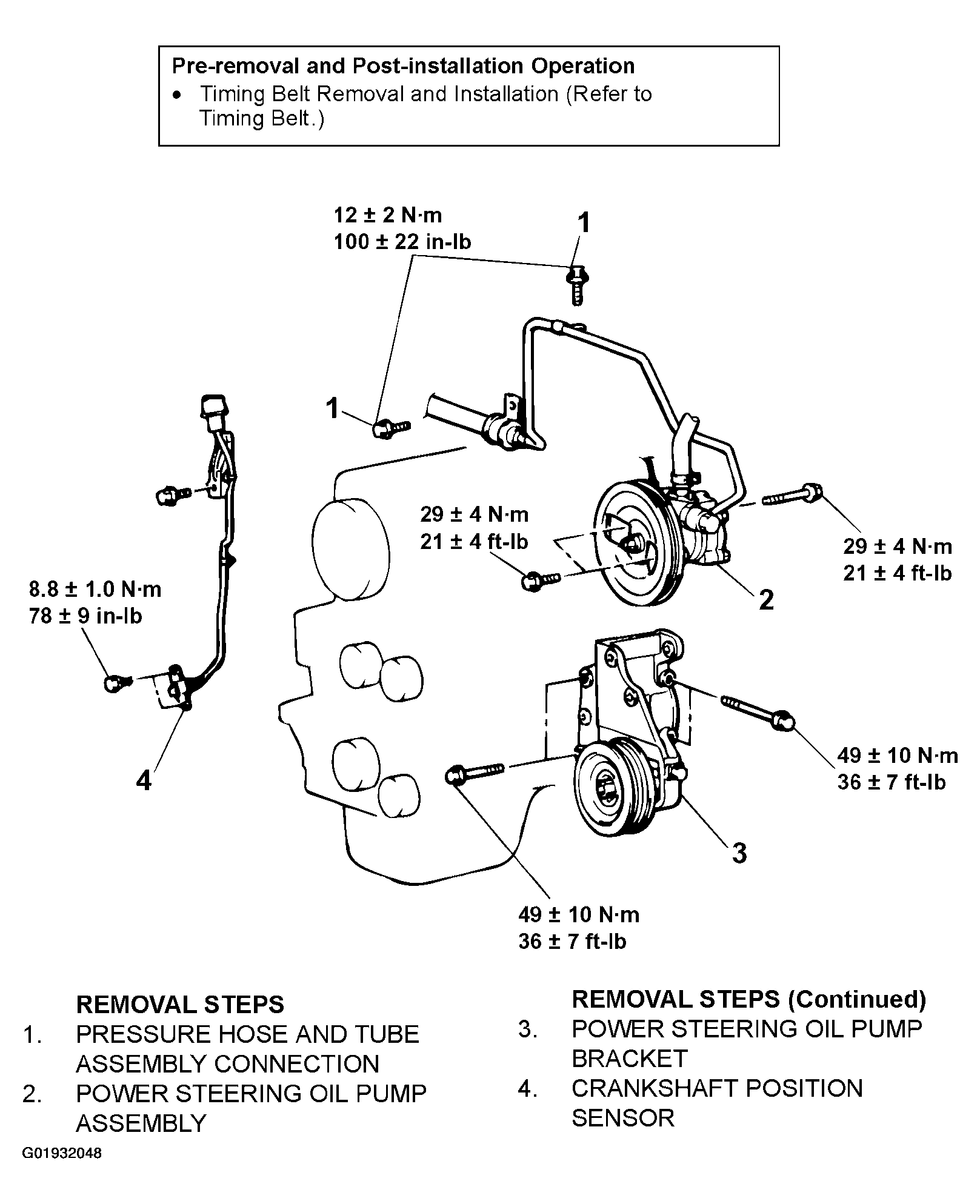

Fig 1: Removing Crankshaft Position Sensor And Torque Specifications - 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
