Crankshaft Position Sensor
›
Removal And Installation <3.0L Engine>
Removal And Installation <3.0L Engine>

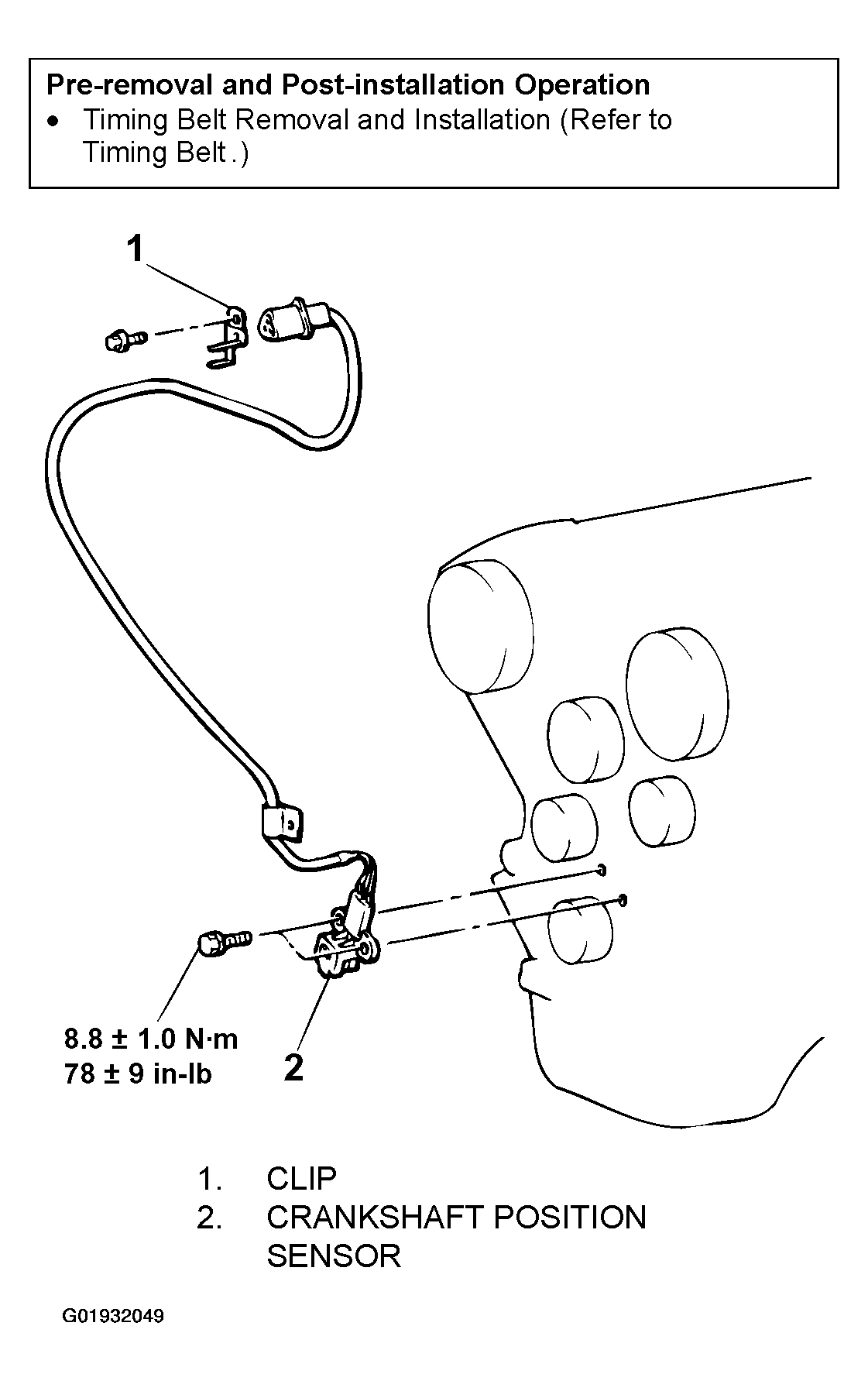

Fig 1: Removing Crankshaft Position Sensor And Torque Specifications - 3.0L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
