A/T Control Component Layout

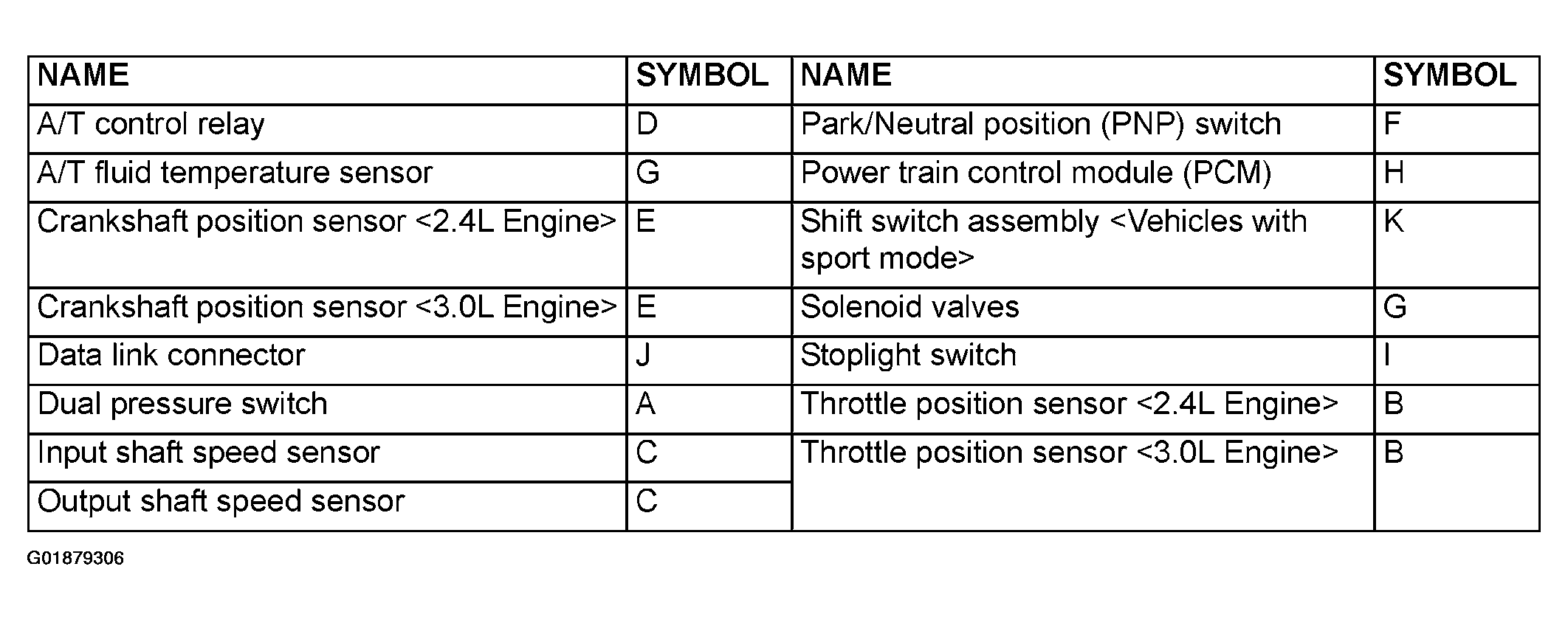

Fig 1: A/T Control Component Description Layout (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

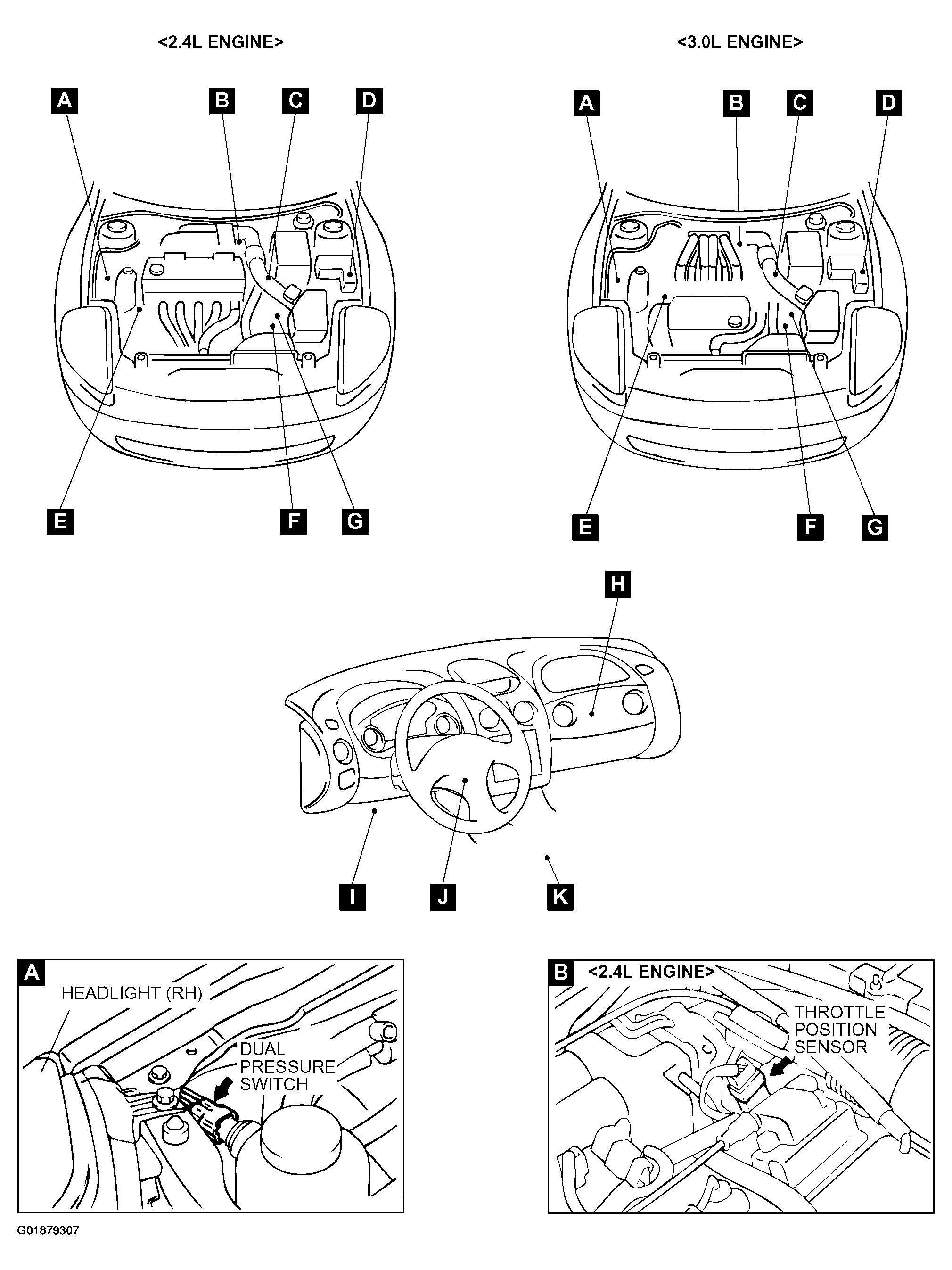

Fig 2: A/T Control Component Description Layout (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

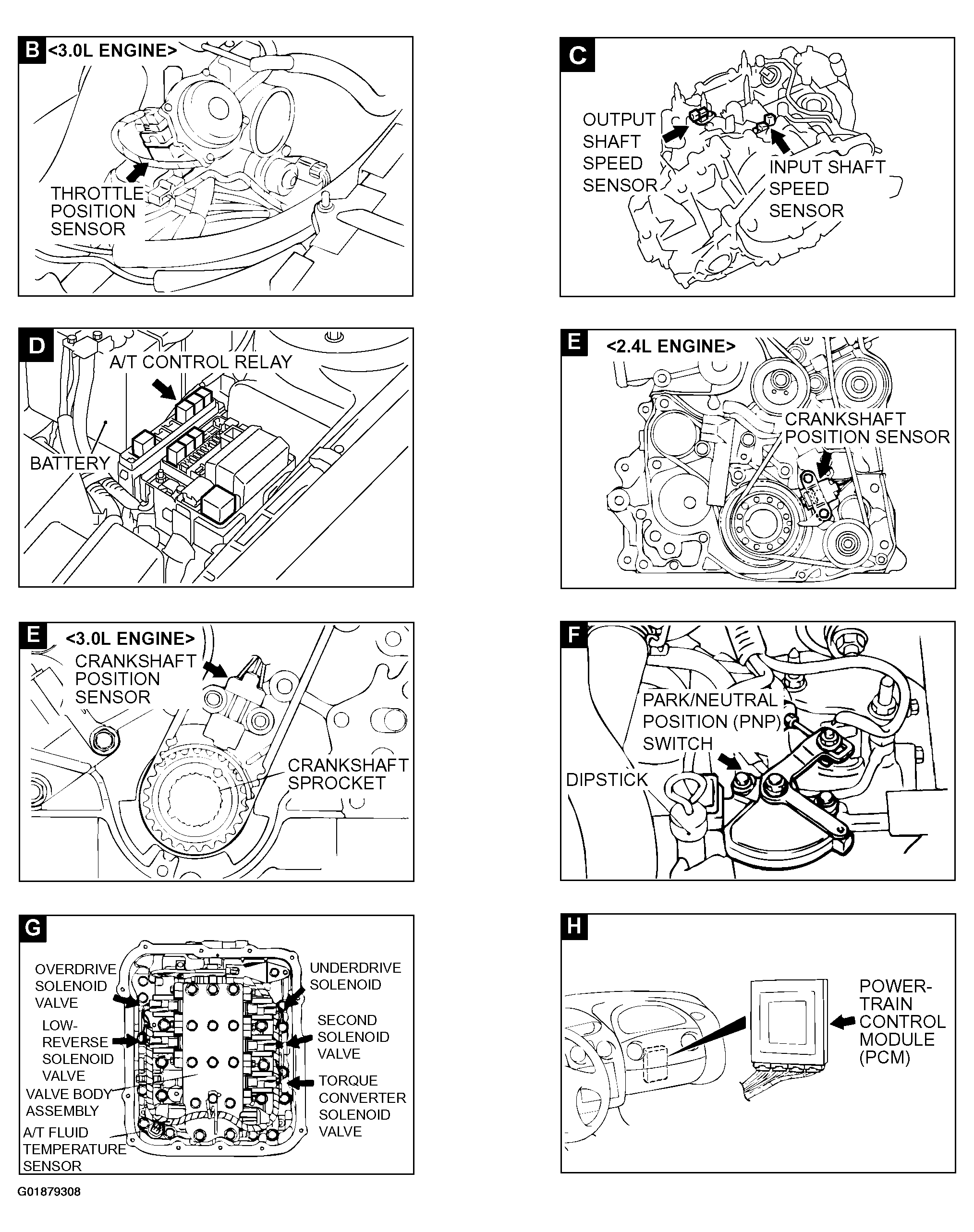

Fig 3: A/T Control Component Description Layout (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

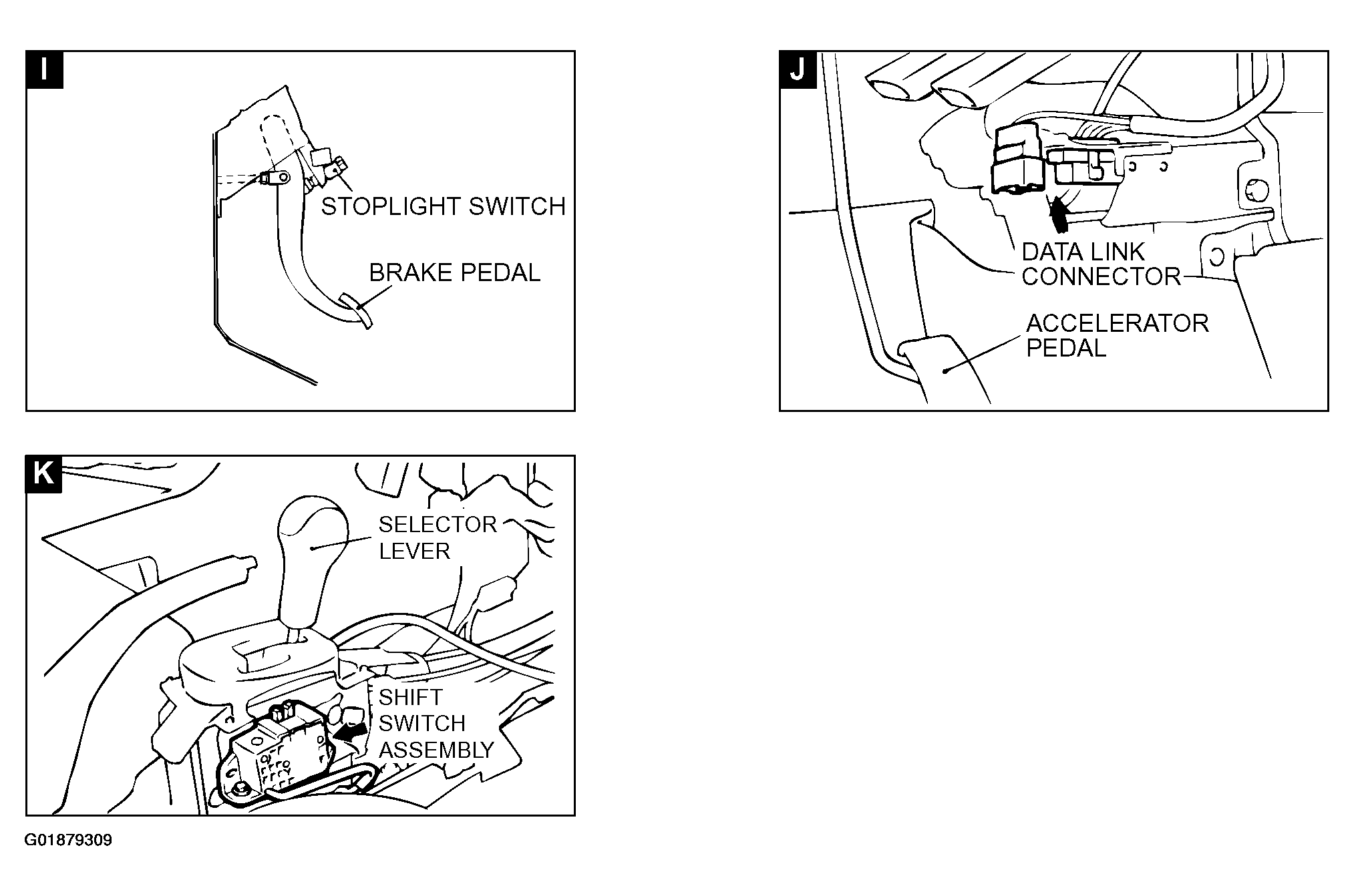

Fig 4: A/T Control Component Description Layout (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
