A/T Fluid Temperature Sensor Continuity Check

  1. Remove the A/T fluid temperature sensor.
  2. Measure the resistance between terminals 1 and 2 of the A/T fluid temperature sensor connector.
  3. If the A/T fluid temperature sensor resistance is not consistent with the fluid temperature, replace A/T fluid temperature sensor.
    NOTE: The N range indicator light on the combination meter flashes when the temperature reaches approximately 125°C (257°F) or higher, and then stops flashing when the temperature drops below approximately 115°C (239°F).

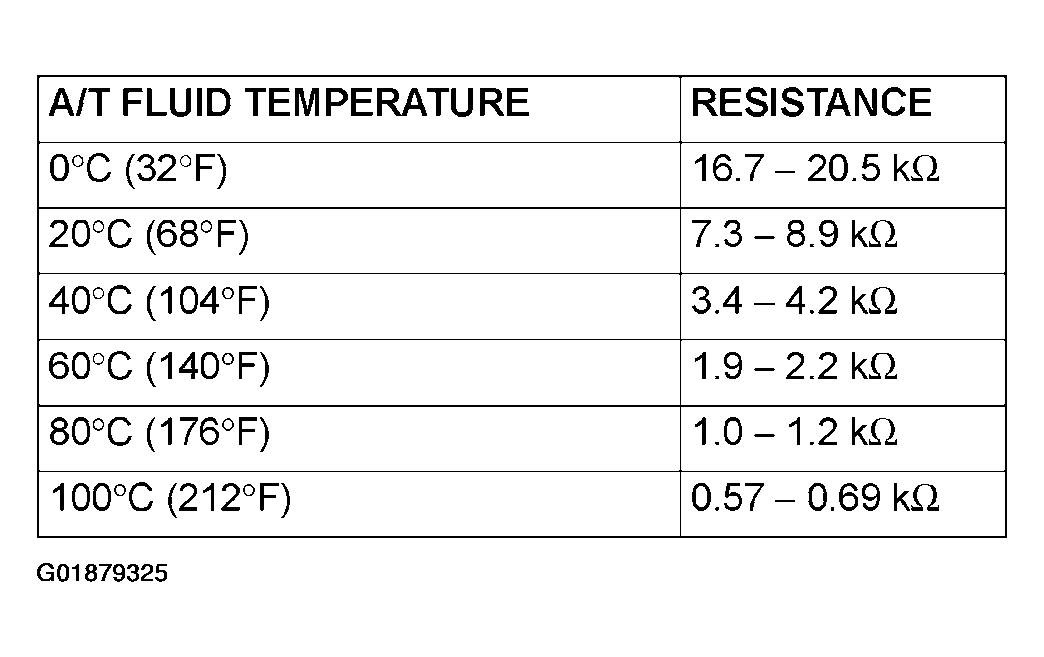

    Fig 1: A/T Fluid Temperature Sensor Continuity Check Table
    G01879325Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 2: Checking A/T Fluid Temperature Sensor Continuity
    G01879326Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
