2.4L Engine

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

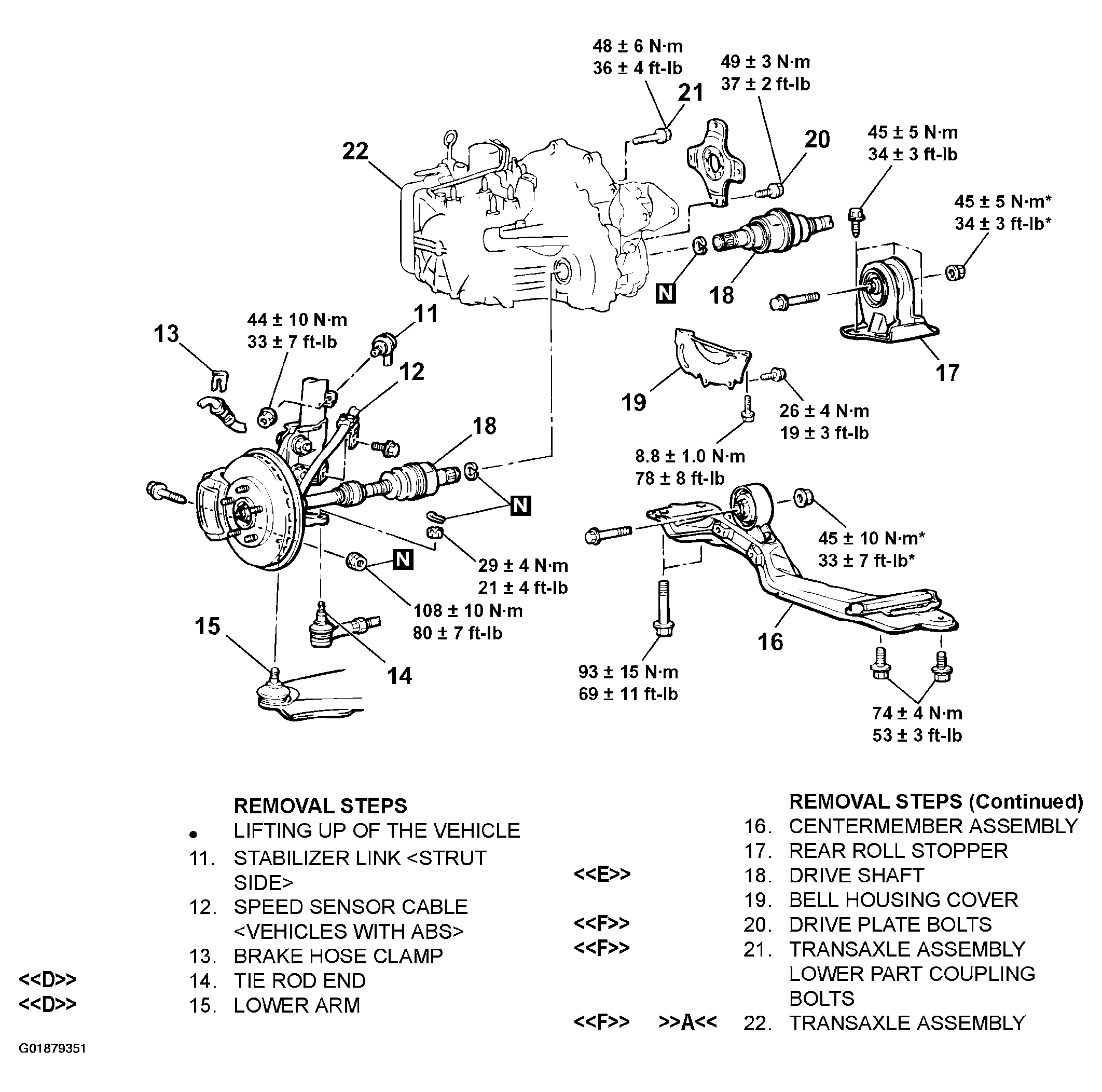

Fig 1: Exploded View Of Transaxle Assembly (2.4L Engine - 1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

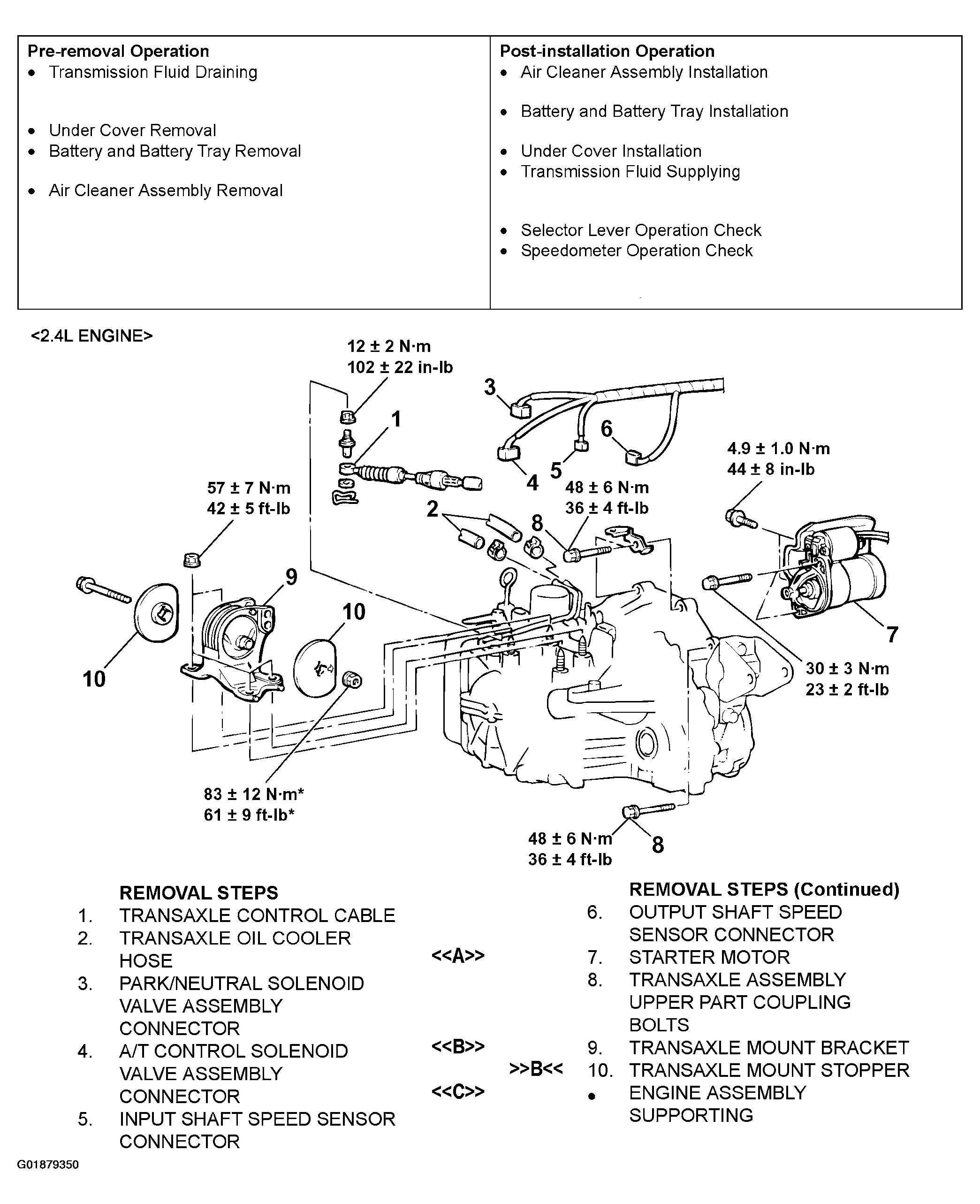

Fig 2: Exploded View Of Transaxle Assembly (2.4L Engine - 2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MB991113: Steering Linkage Puller
MB991453: Engine Hanger Attachment Set
MZ203827: Engine Lifter
MB991454: Engine Hanger Balancer (a part of MB991453 Engine Hanger Attachment Set)
MB991895: Engine Hanger
