Stoplight Switch
Disconnect the connector.
Check for continuity between the terminals of the switch.

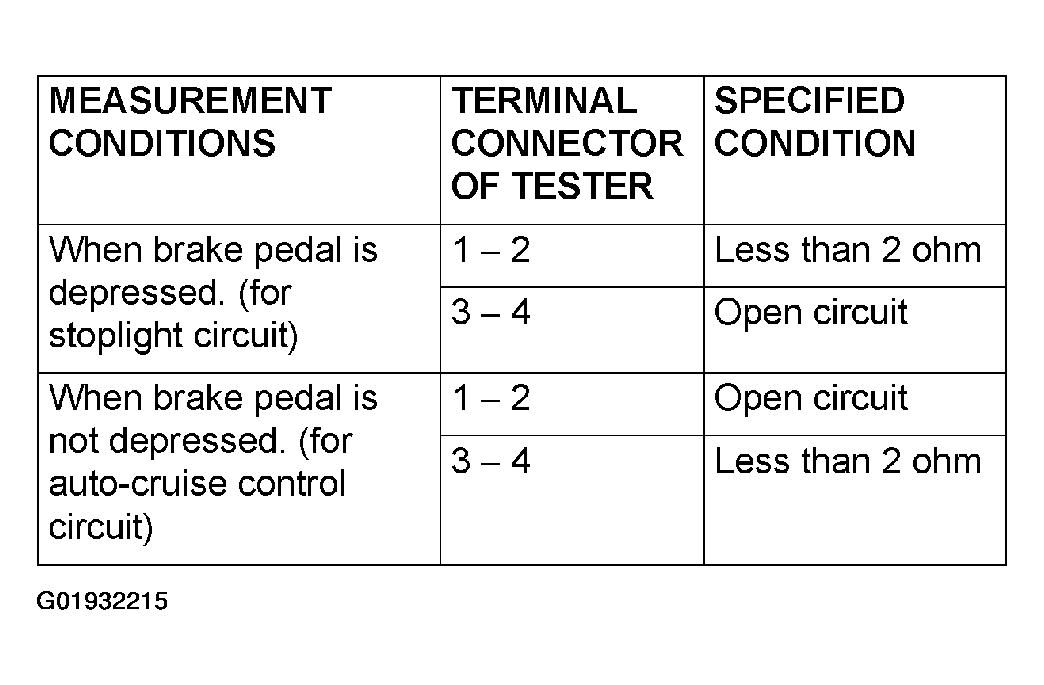

Fig 1: Stoplight Switch Terminals Continuity Reference Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying Stoplight Switch Terminals
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
