Removal And Installation: Notes

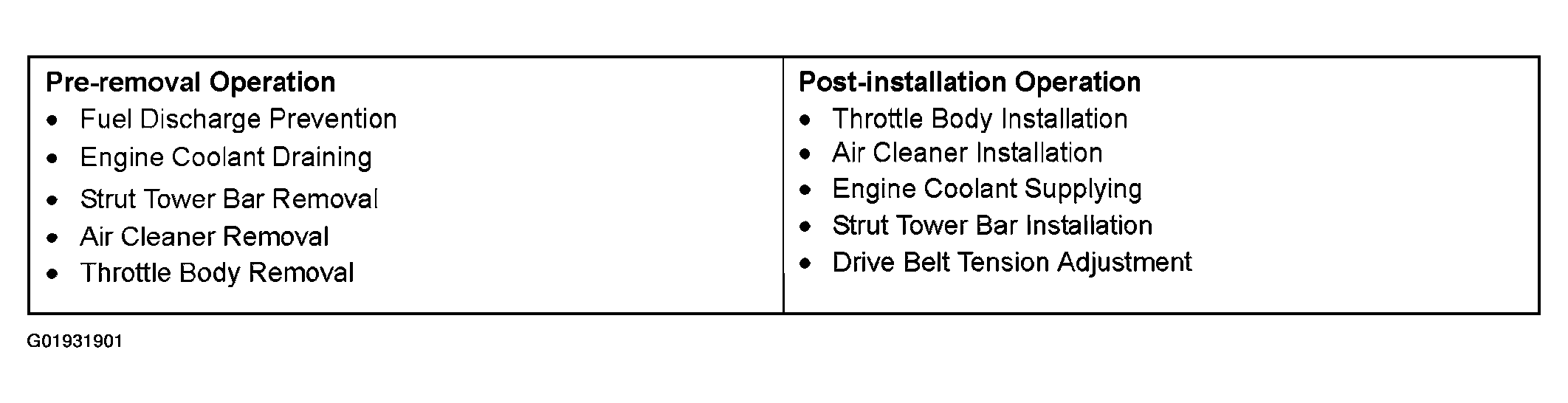

Fig 1: Intake Manifold Plenum Removal Reference Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< Vehicle without Variable Induction Control (VIC) System >

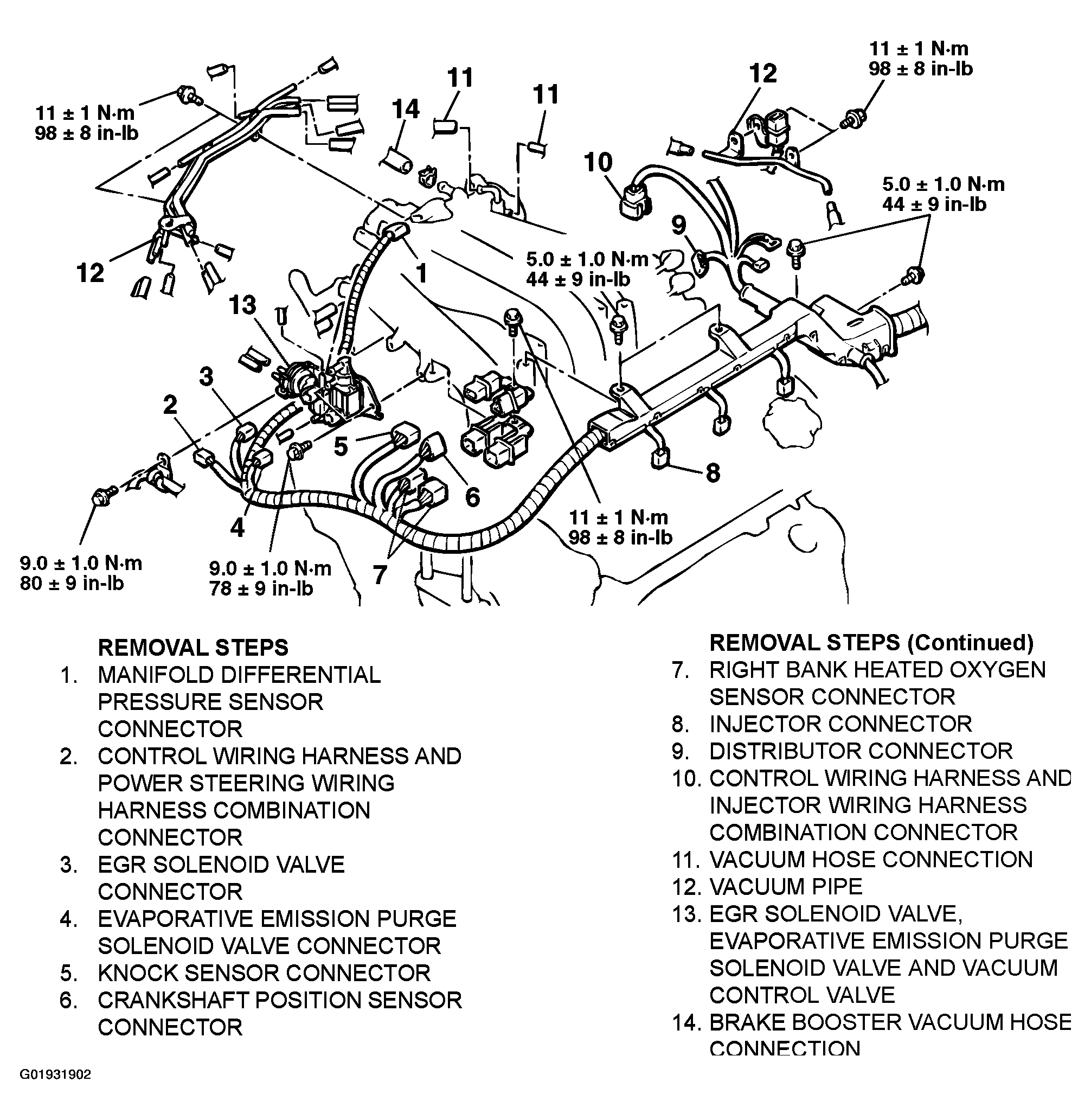

Fig 2: Intake Manifold Plenum Removal Procedure - Without VIC System (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

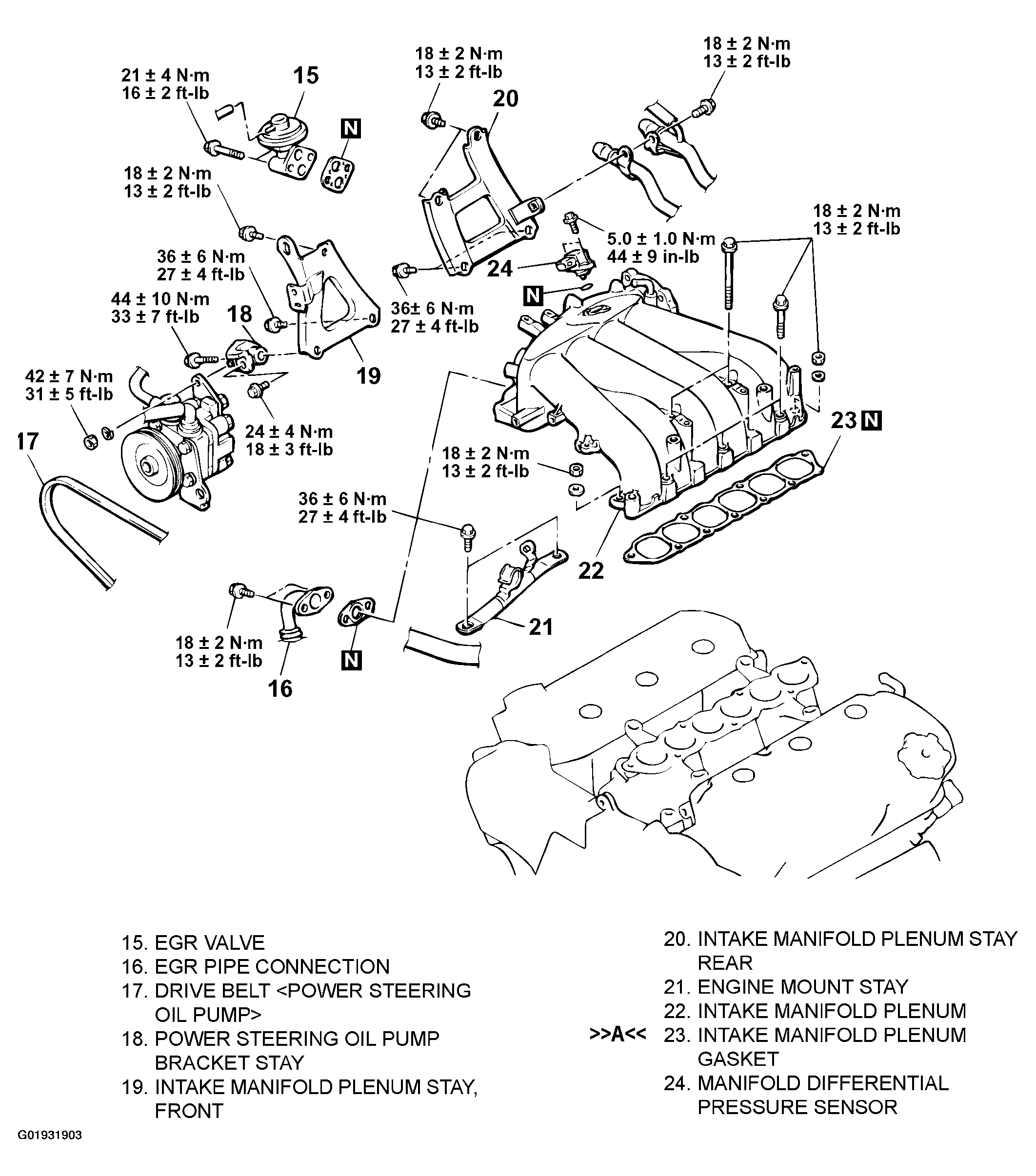

Fig 3: Intake Manifold Plenum Removal Procedure - Without VIC System (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< Vehicle with Variable Induction (VIC) System >

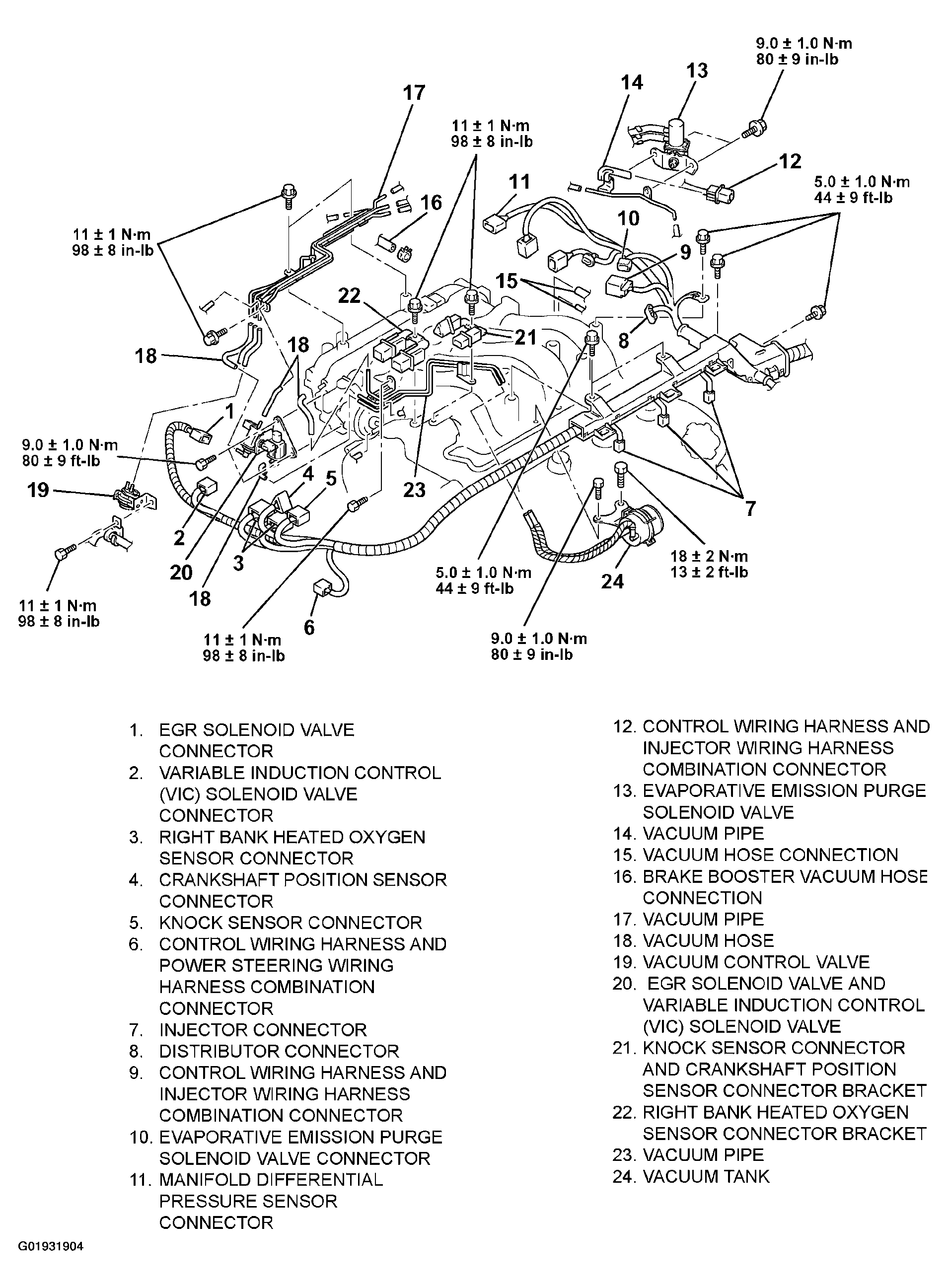

Fig 4: Intake Manifold Plenum Removal Procedure - With VIC System (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

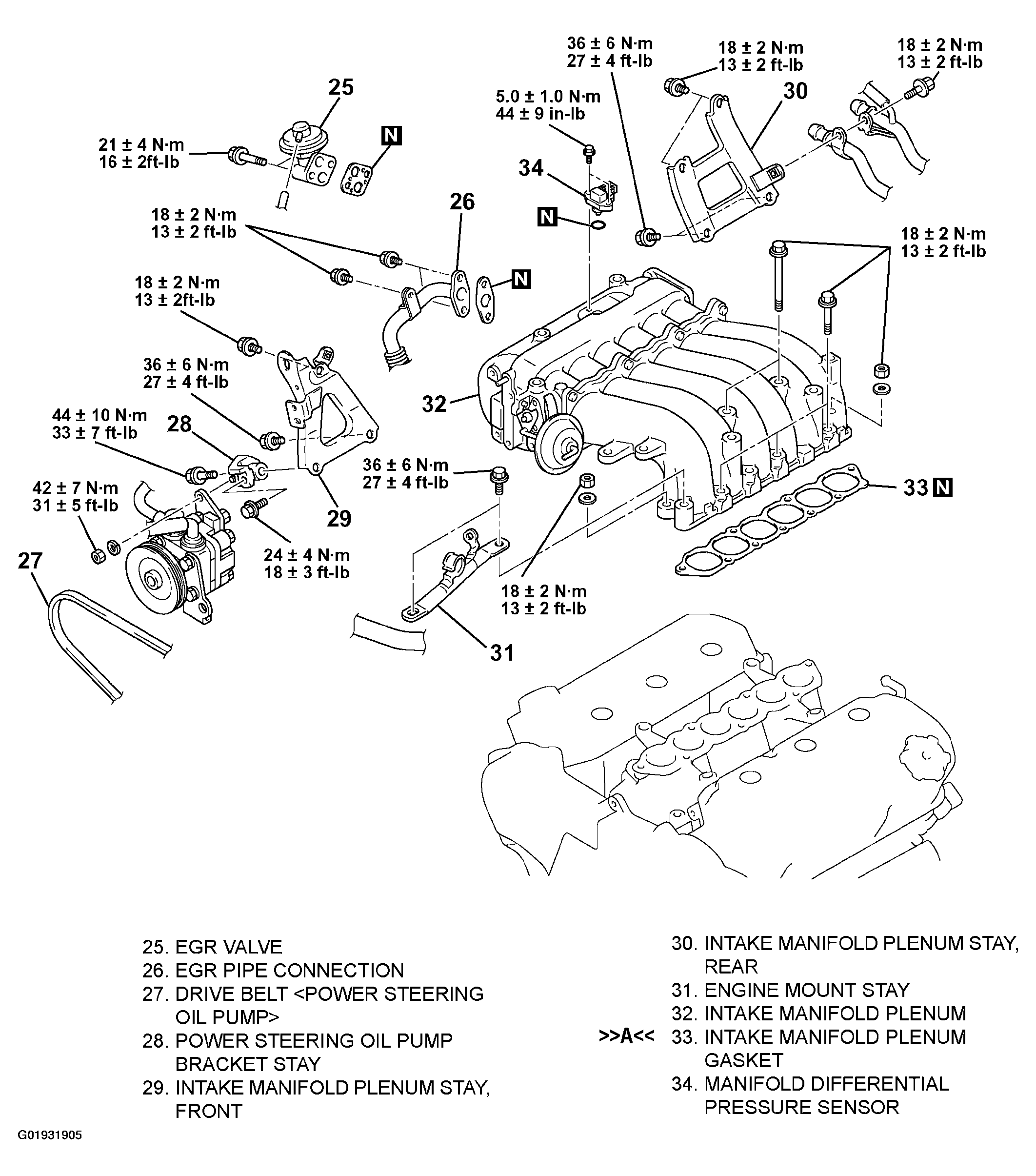

Fig 5: Intake Manifold Plenum Removal Procedure - With VIC System (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
