Disassembly And Assembly: Notes

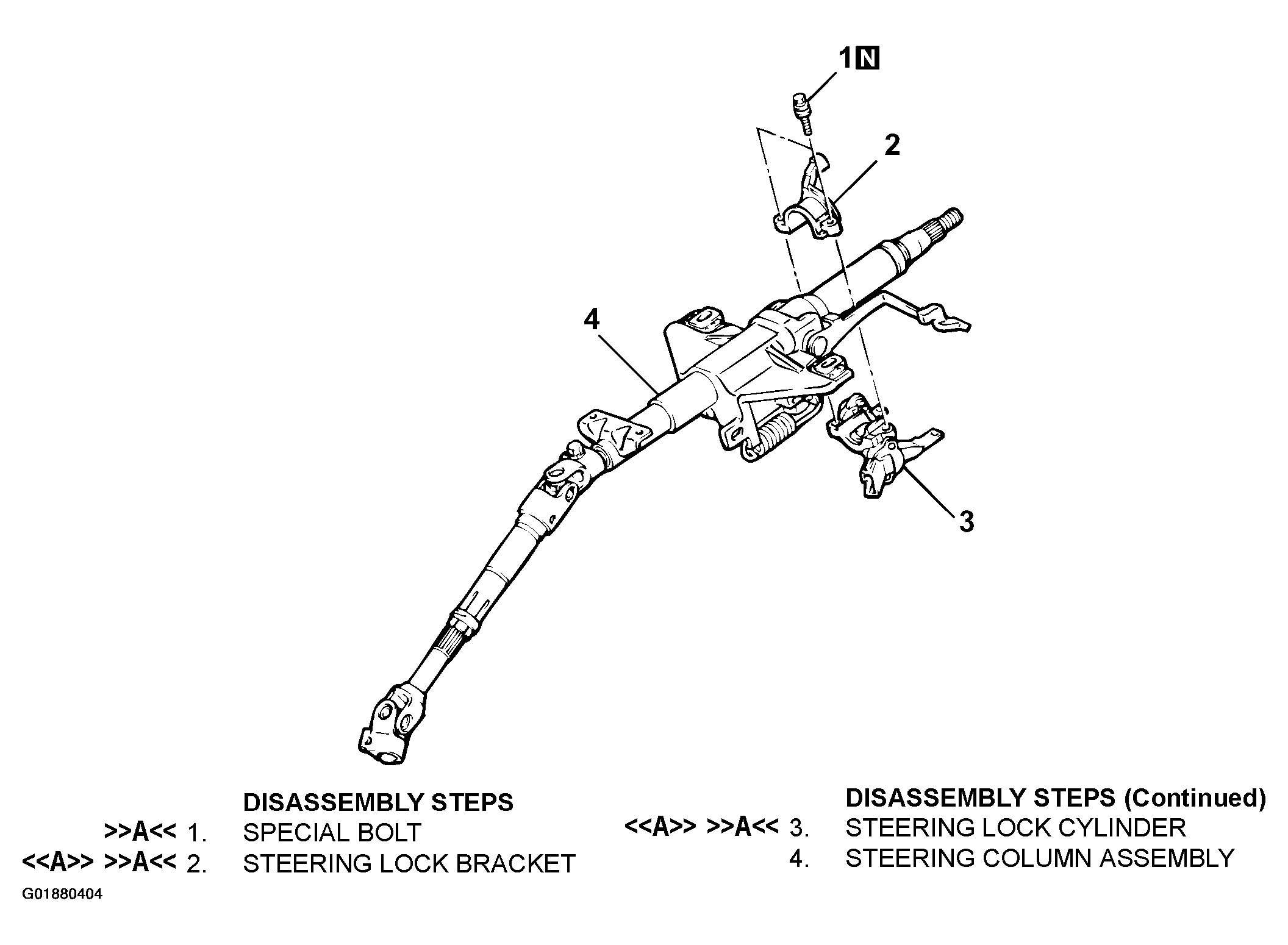

Fig 1: Identifying Disassembly Steps Of Steering Column Assembly
G01880404Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
