Removal And Installation: Notes

WARNING:

Before removing the air bag module, refer to AIR BAG RESTRAINT SYSTEMS article.
When removing and installing the steering wheel, do not let it bump against the air bag module.

NOTE: For removal and installation of the remote controlled radio switch, refer to REMOVAL AND INSTALLATION .

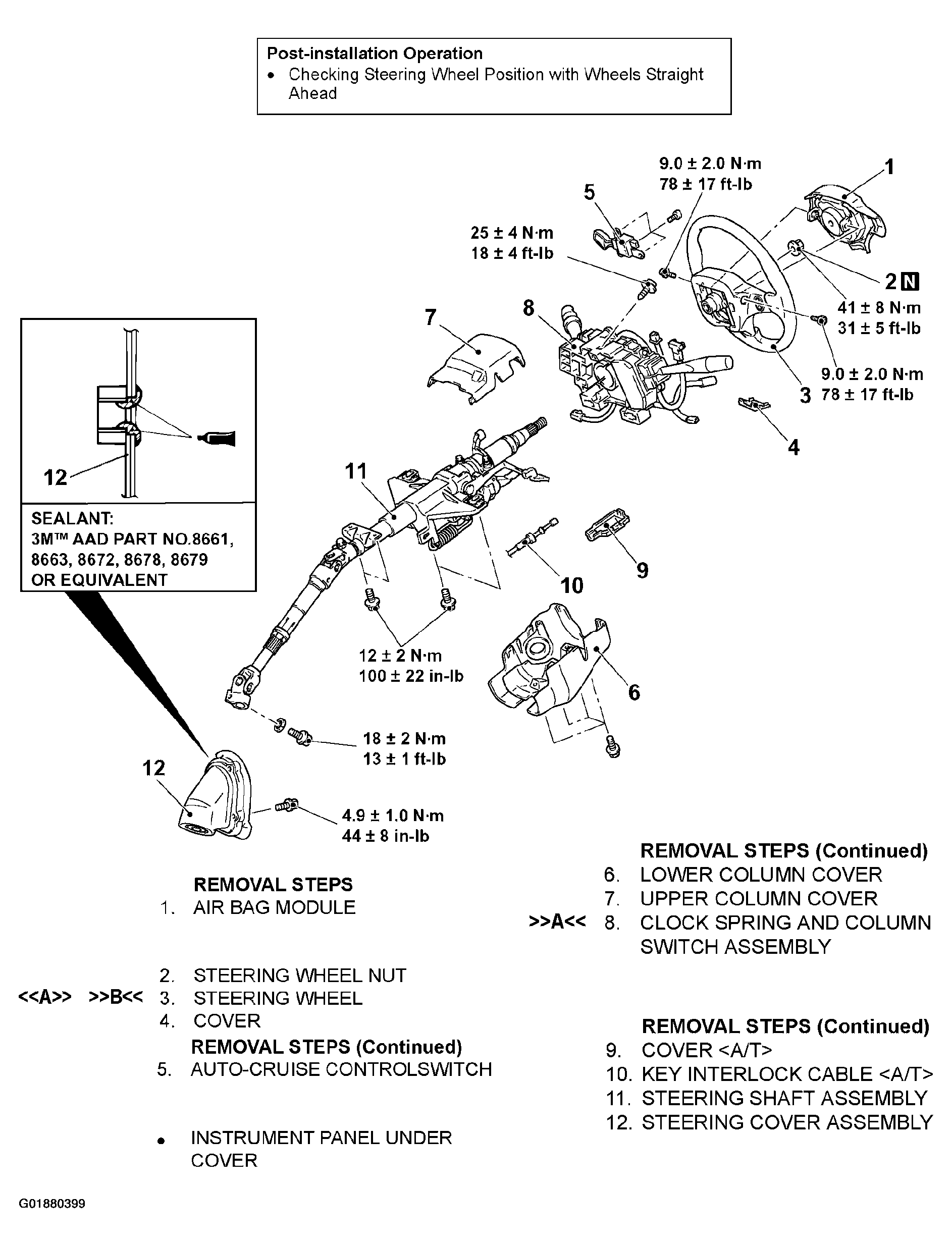

Fig 1: Identifying Removal Steps Of Steering Wheel And Shaft Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
