Disassembly And Assembly: Notes

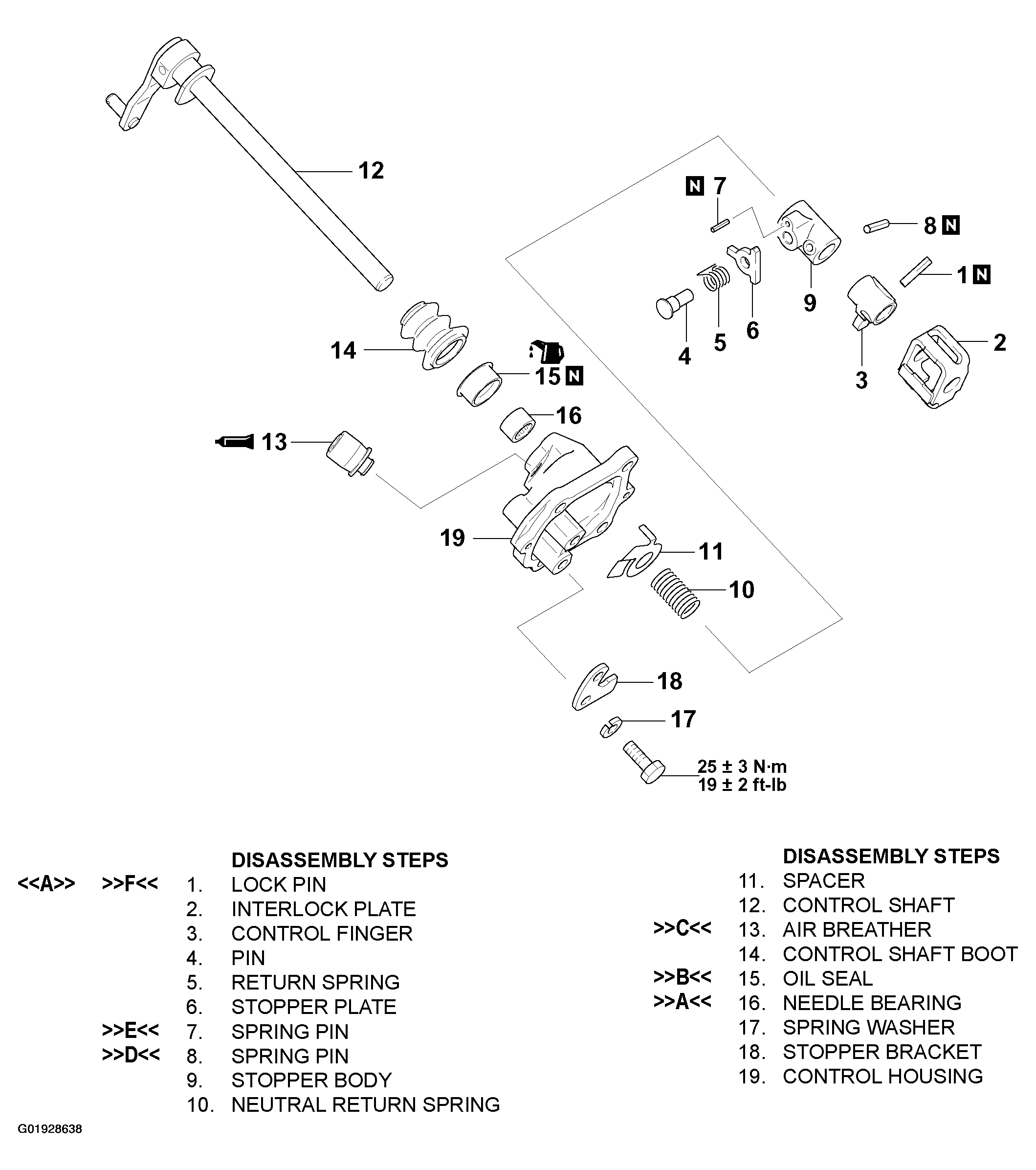

Fig 1: Exploded View Of Control Housing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
