Data List Reference Table
Data List Reference Table
The following items can be read by the scan tool from the ABS-ECU input data.

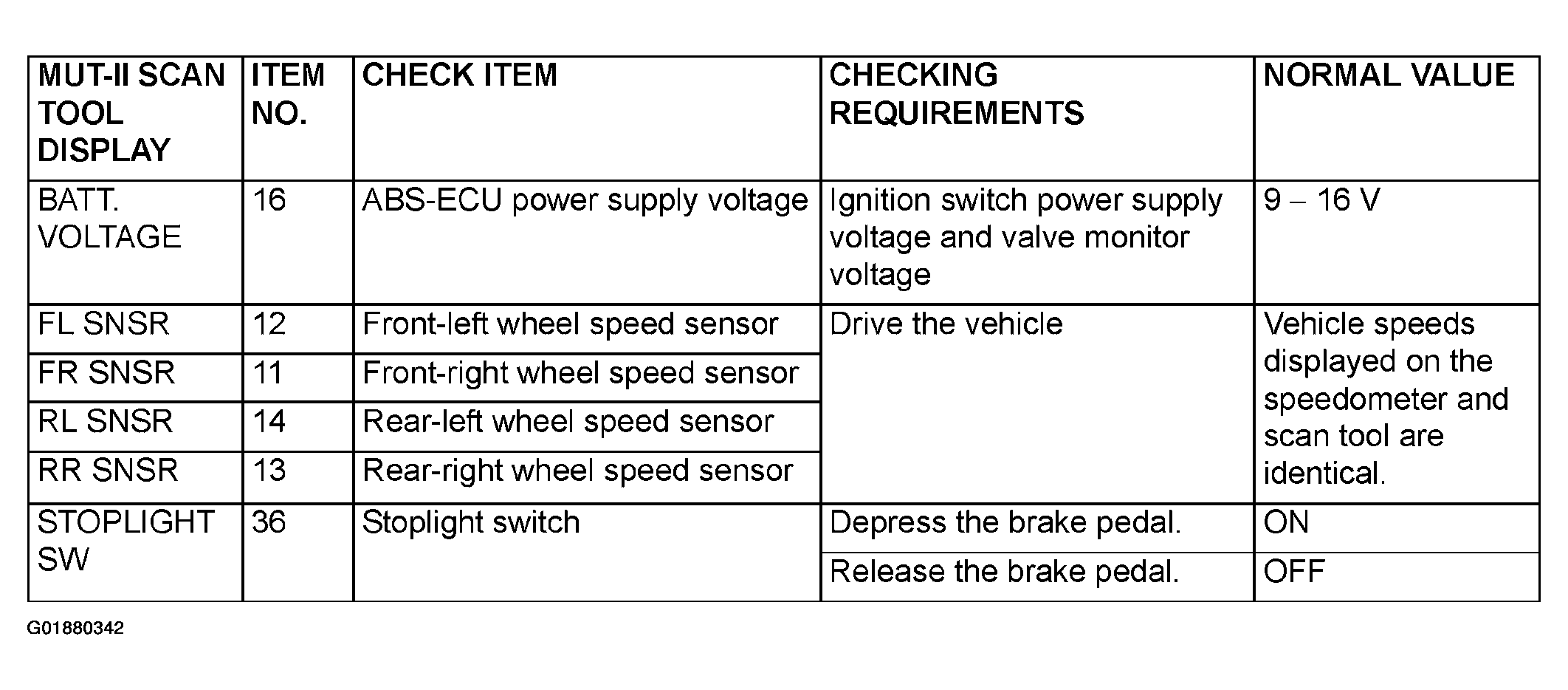

Fig 1: Data List Reference Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
