Removal And Installation: Notes

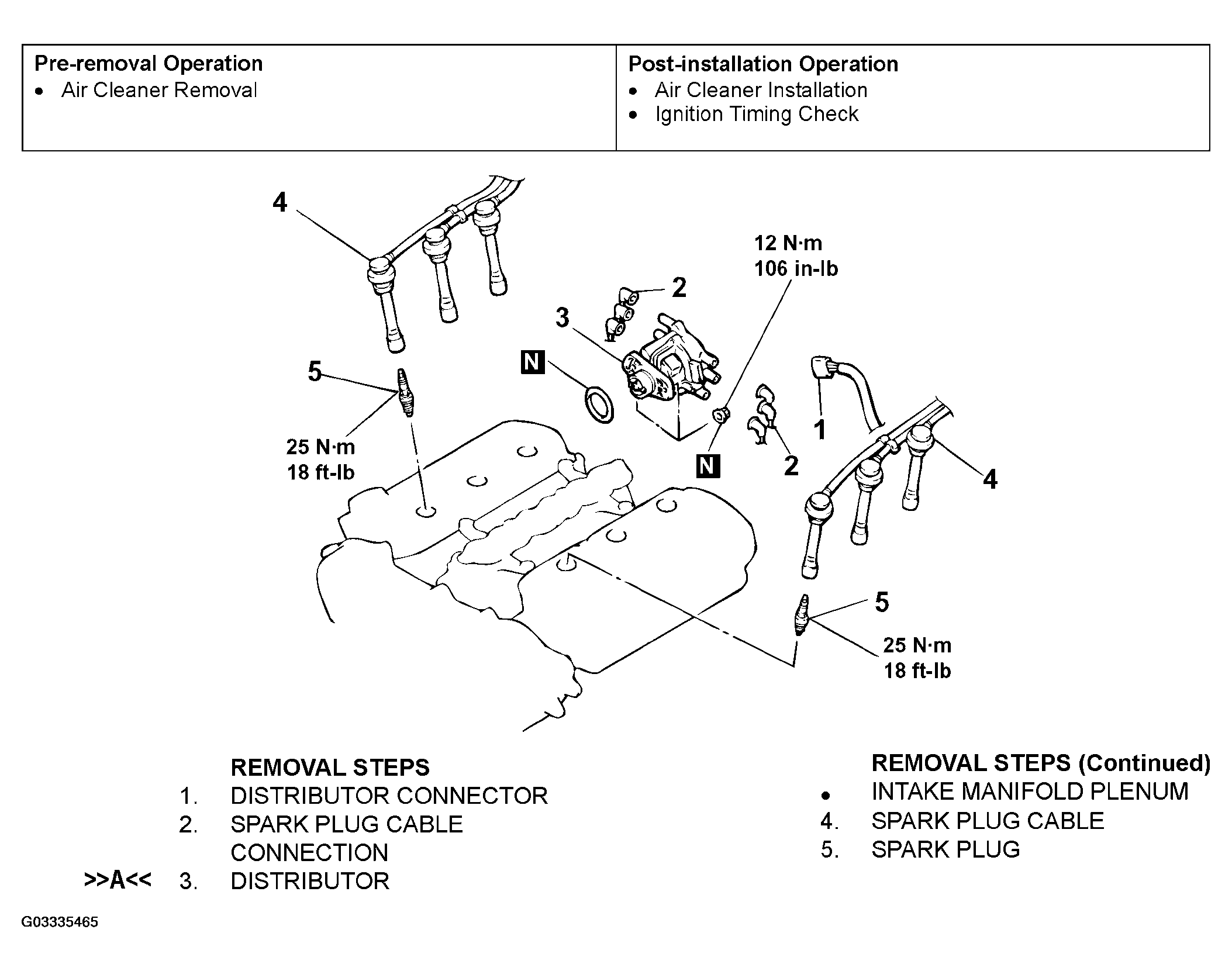

Fig 1: Removing & Installing Ignition Coil - 3.0L

G03335465

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
