Component Locations

COMPONENT LOCATIONS

Component	Location
Data Link Connector (DLC)	Under Left Side Of Dash, Below Steering Column
Seat Adjusting Motors	Under Each Front Seat

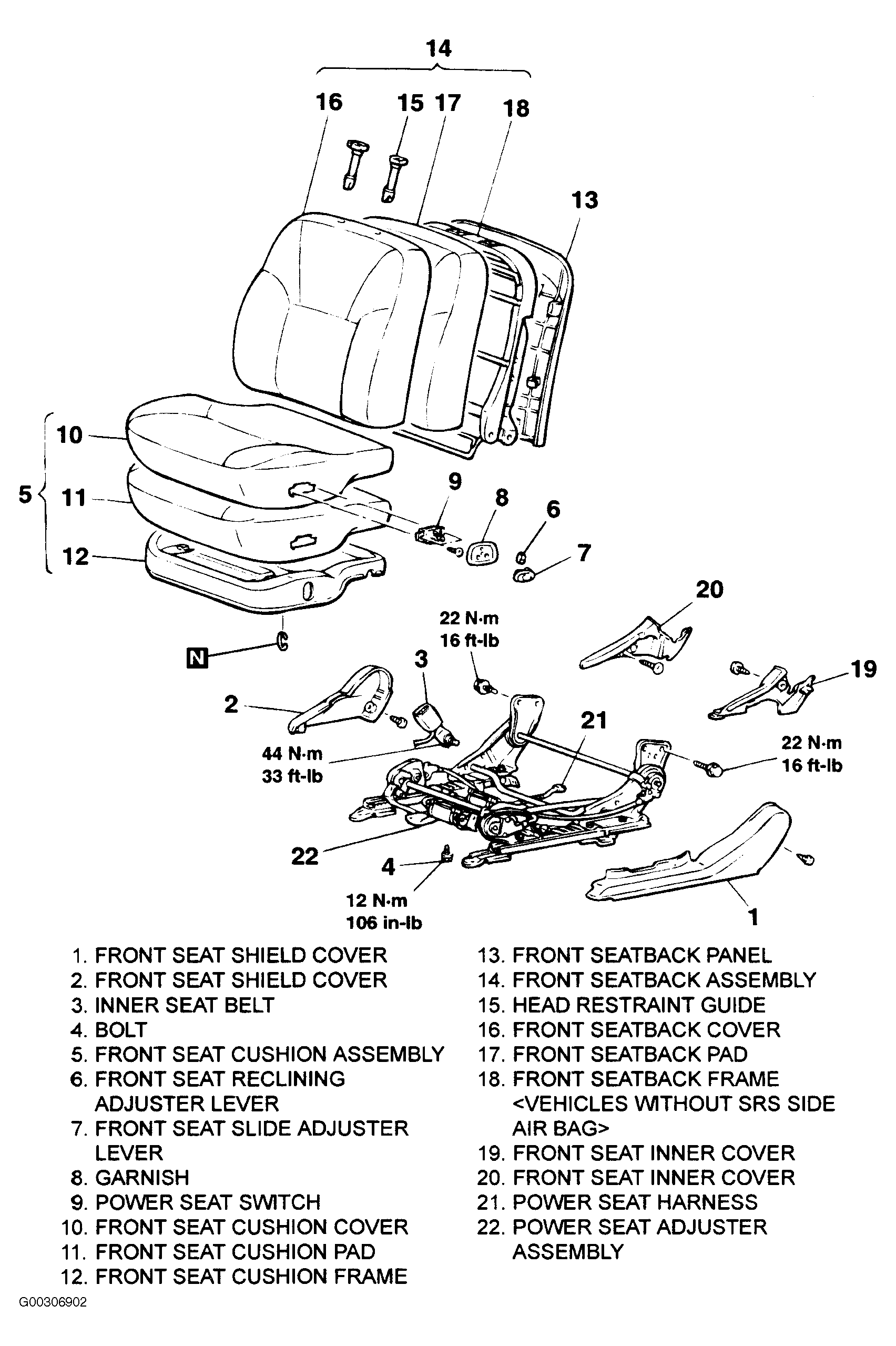

Fig 1: Identifying Power Seat Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
