Removal And Installation: Notes

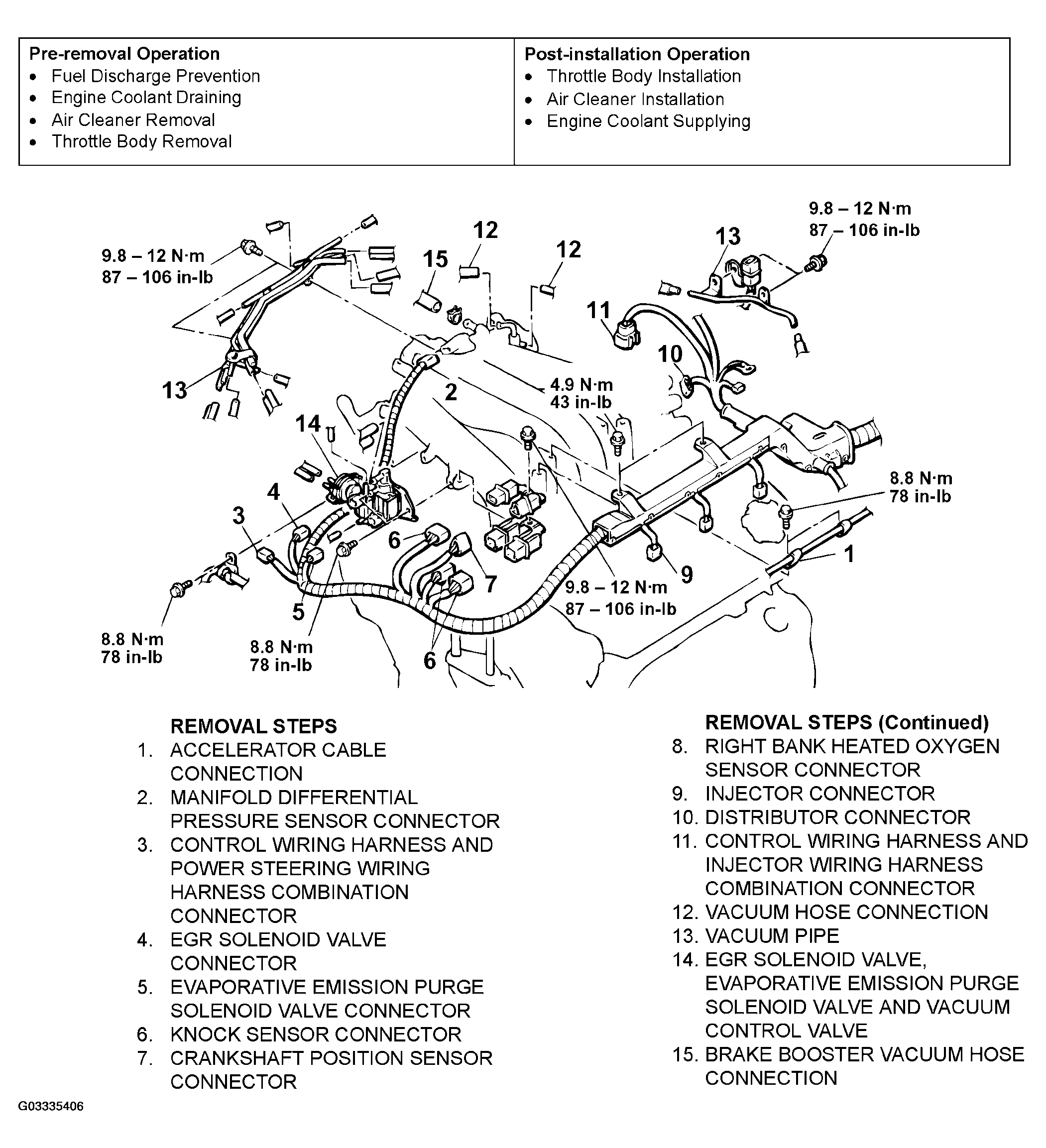

Fig 1: Removing & Installing Intake Manifold Plenum (1 Of 2)
G03335406Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

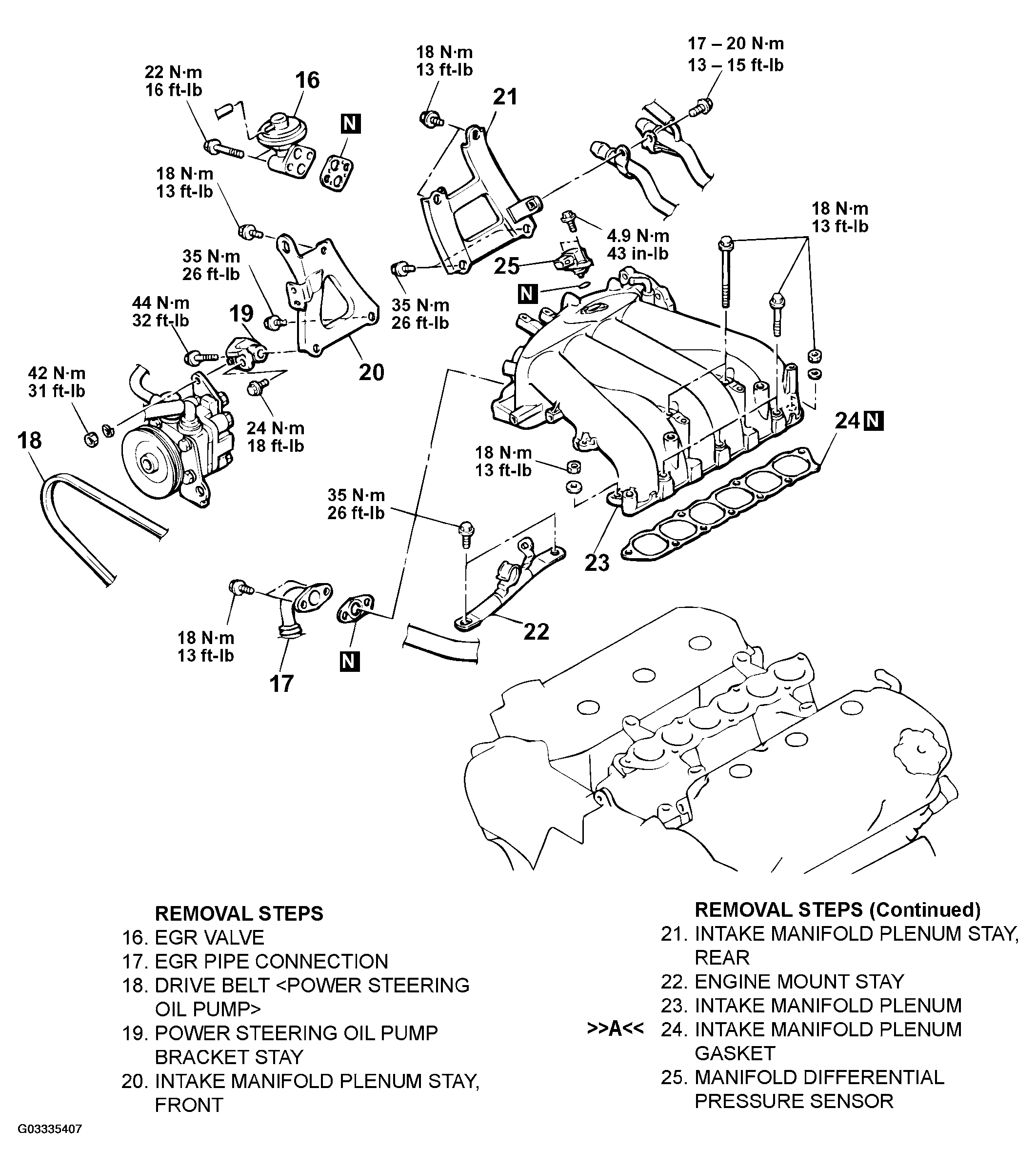

Fig 2: Removing & Installing Intake Manifold Plenum (2 Of 2)
G03335407Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
