Disassembly And Assembly: Notes

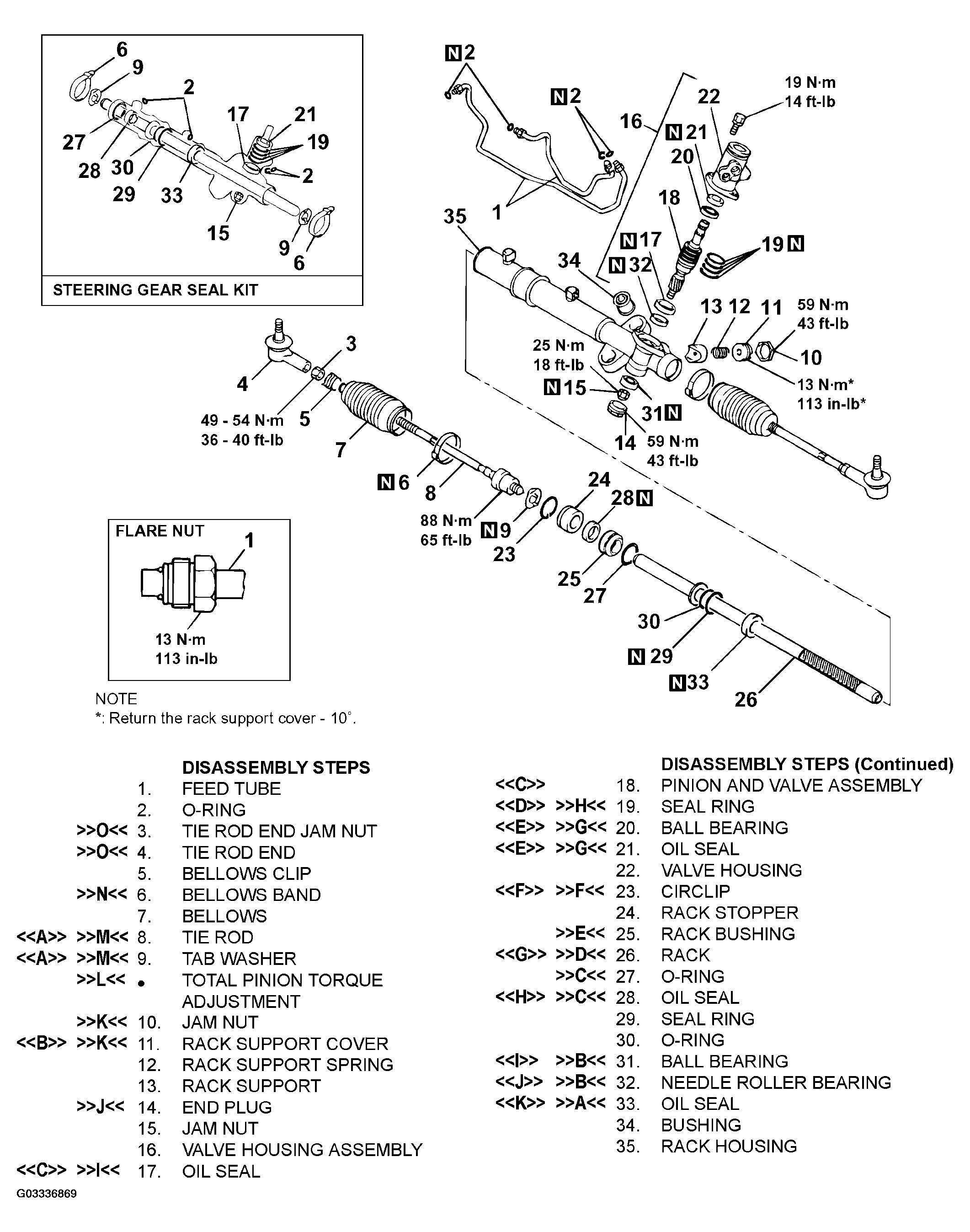

Fig 1: Exploded View Of Power Steering Gear Box Assembly

G03336869

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990228 or MB991006: Preload Socket
MB990776: Front Axle Base
MB990927: Installer Adapter
MB990938: Bar (Snap-in type)
MB990939: Brass Bar
MB991120: Needle Bearing Puller
MB991152: Dust Cover Installer
MB991197: Bar (Long type)
MB991199: Oil Seal Installer
MB991202: Oil Seal and Bearing Installer
MB991203: Oil Seal and Bearing Installer
MB991204: Torque Wrench Socket
MB991213: Rack Installer
MB991317: Seal Ring Installer
