Removal And Installation: Notes

WARNING: Before removing the steering gearbox, refer to GROUP 52B. Center the front wheels. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.

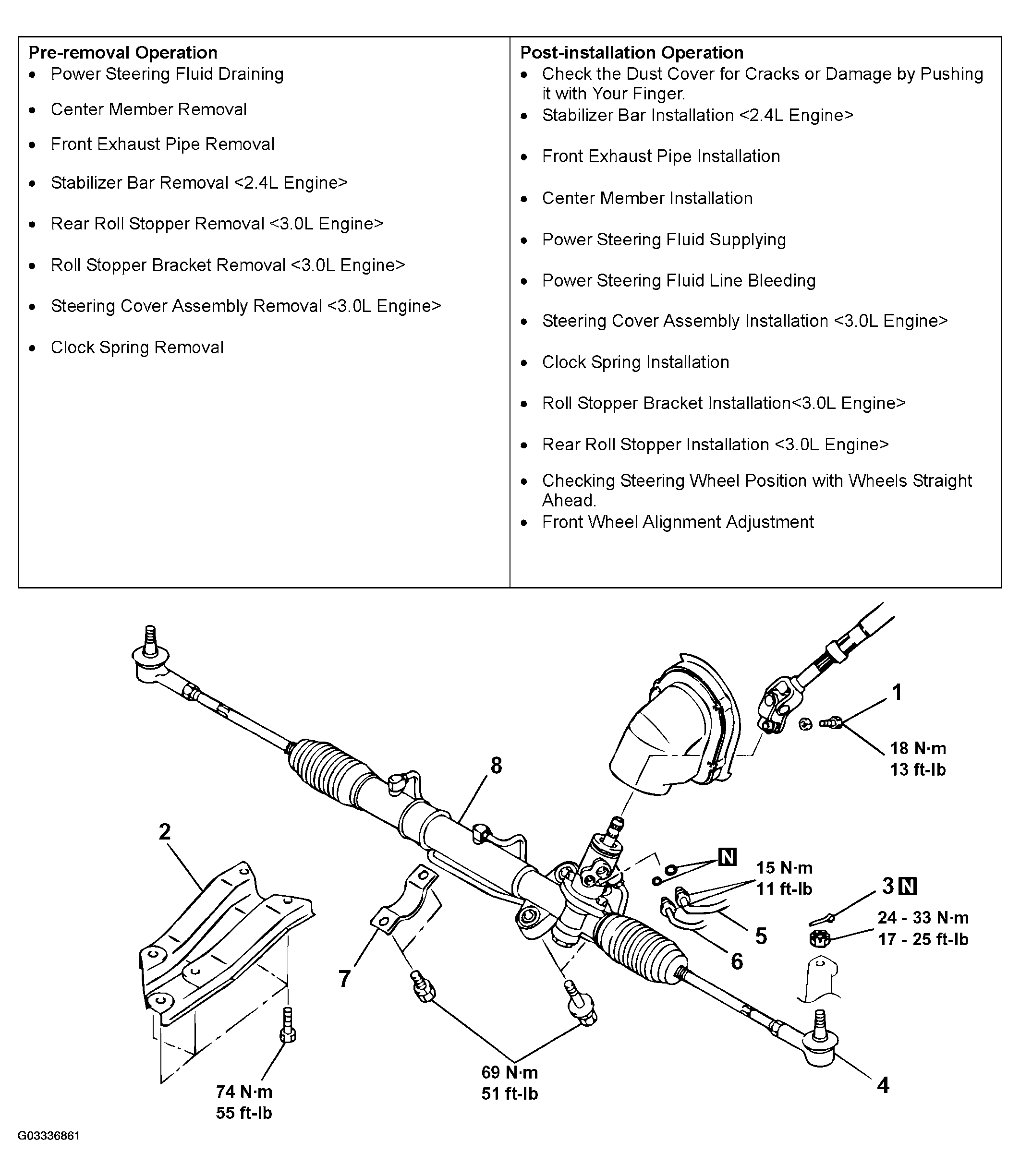

Fig 1: Removing & Installing Power Steering Gear Box Assembly (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

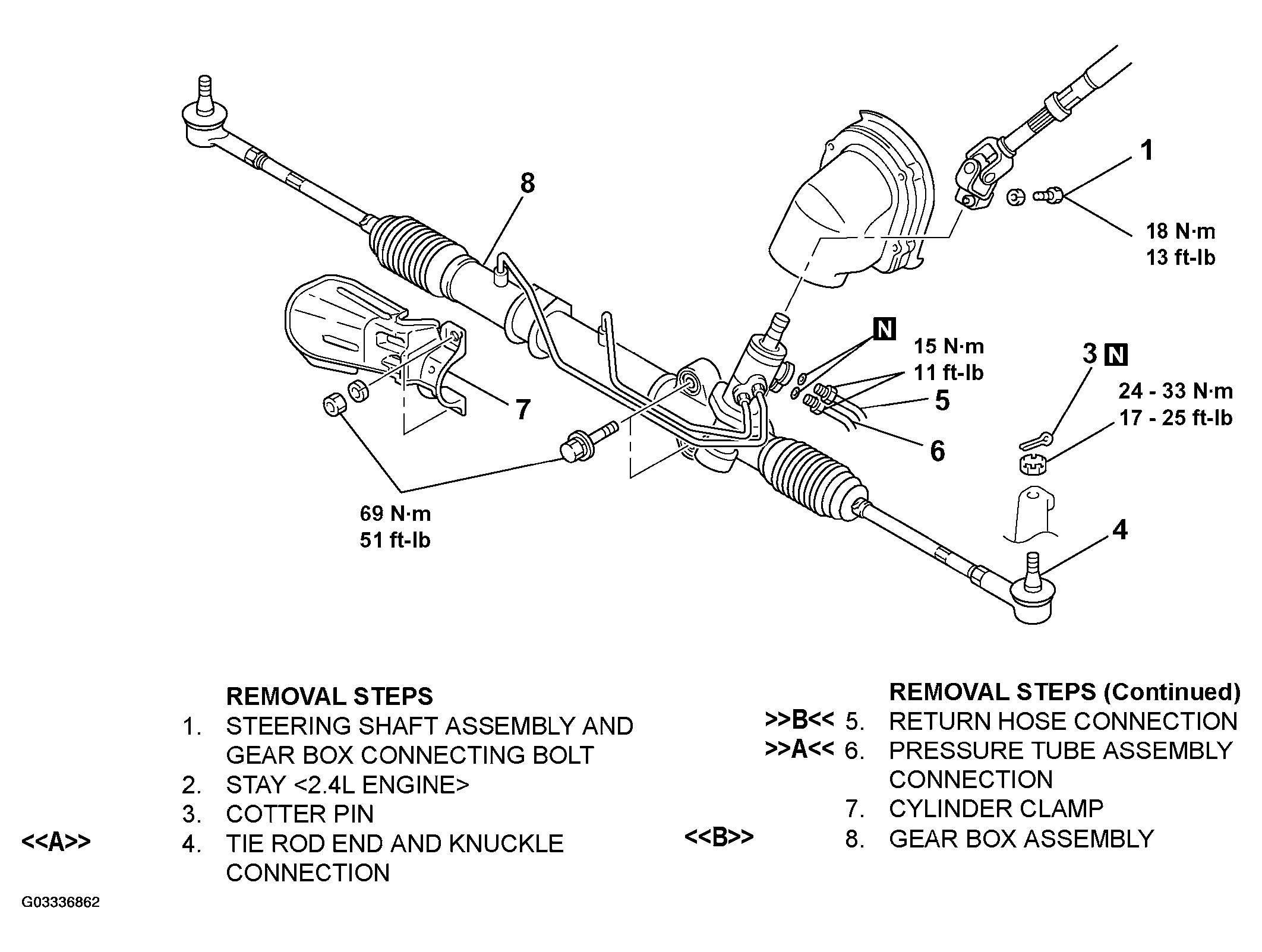

Fig 2: Removing & Installing Power Steering Gear Box Assembly (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990228 or MB991006: Preload Socket
MB991897: Ball Joint Remover
